TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

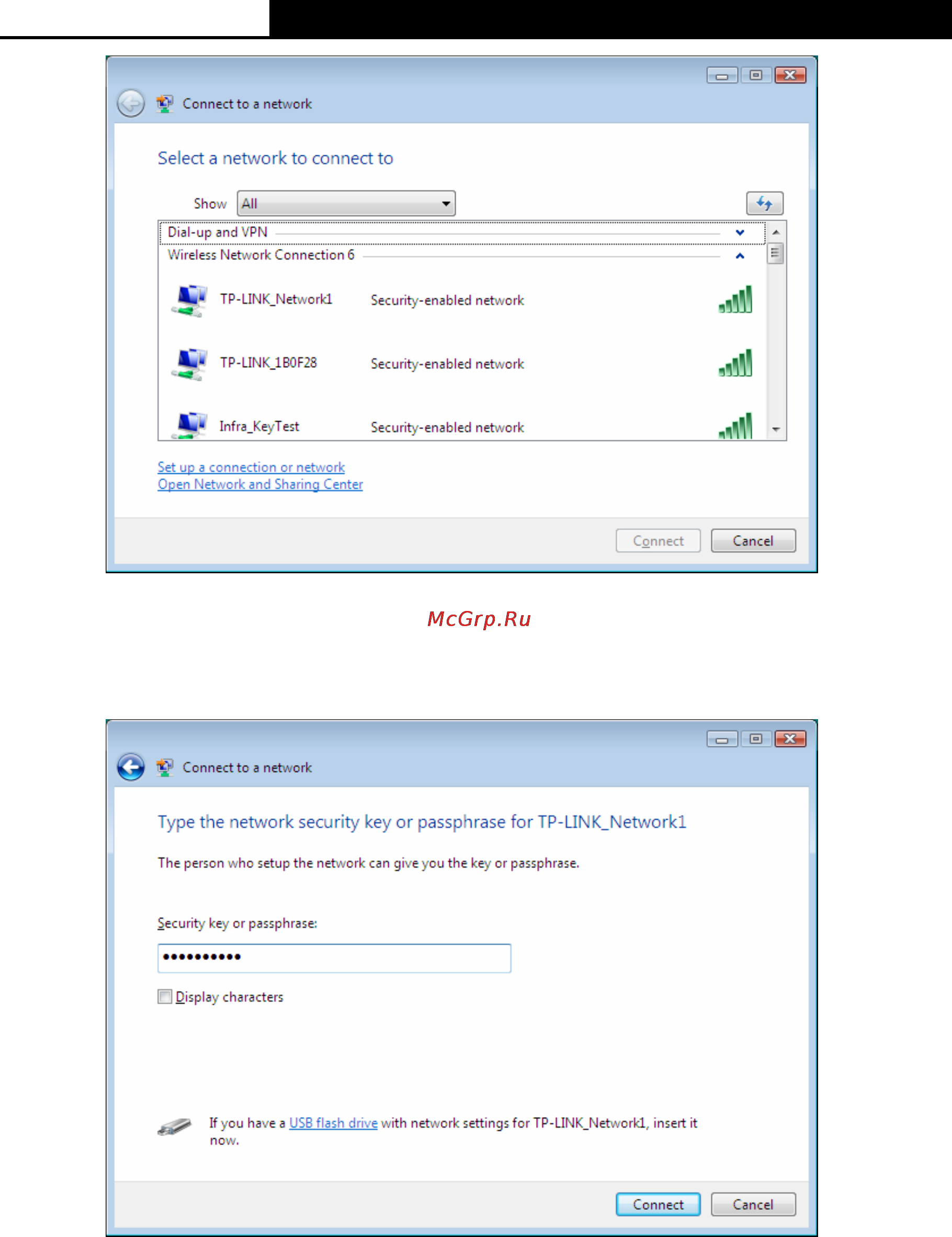

Figure 3-22

3. If the network you would like to connect is security-enabled, enter the same security key or

passphrase that is on your Router. If the network to be connected is not secure, the

connection will be built without entering a key.

Figure 3-23
