TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide

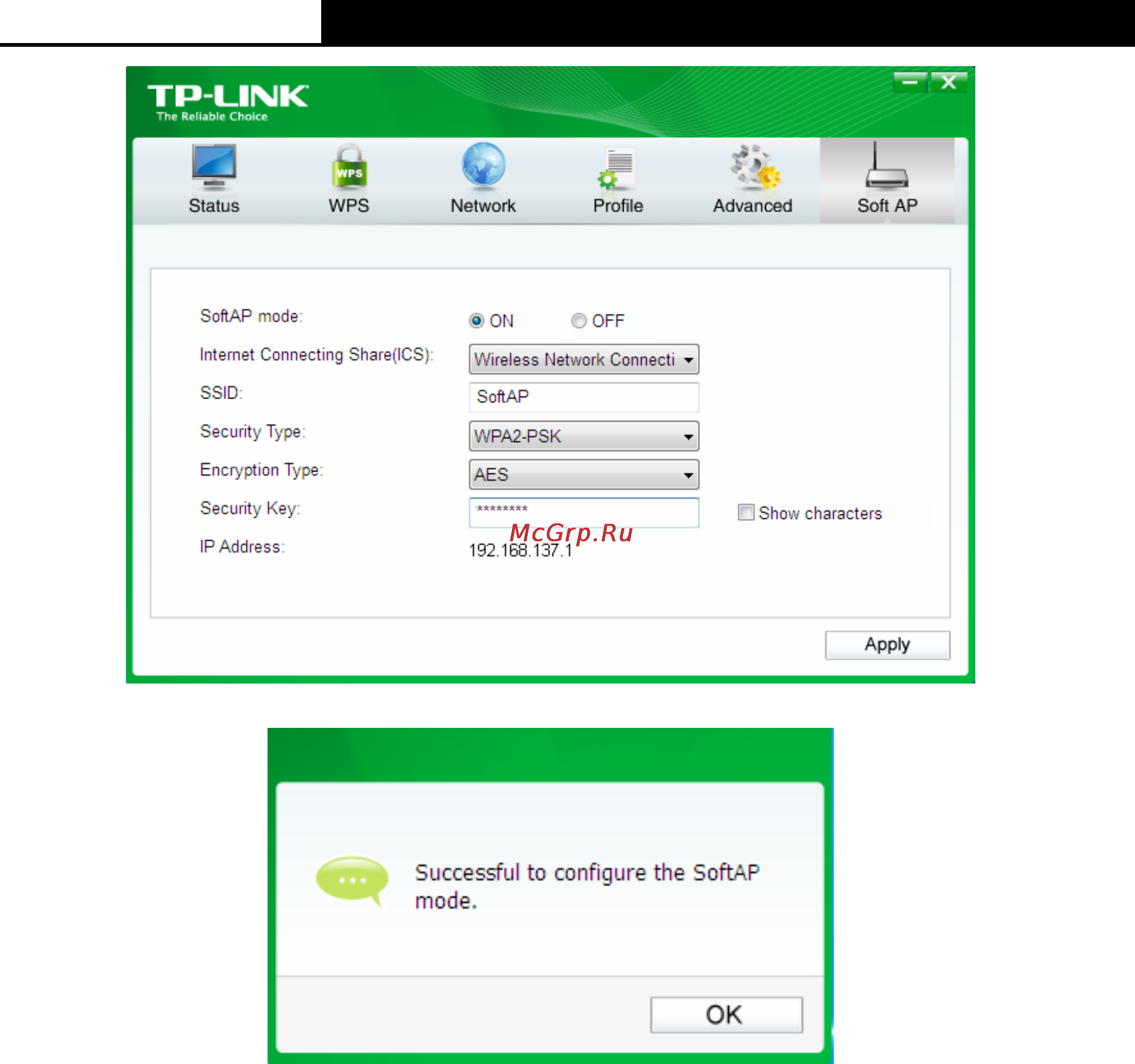

Figure 5-3

Figure 5-4

¾ SoftAP mode: Select to enable or disable the function.

¾ Internet Connecting Share (ICS): Specify a connection through which devices connected

to your AP can access the Internet.

¾ SSID: Enter the name for your soft AP (for example, Jone) so that others can know which

AP is yours when trying to connect to it.

¾ Security Type: The security type here is set to be WPA2-PSK which is based on 802.11i

and uses AES (Advanced Encryption Standard) instead of TKIP. It was designed to

improve the security features of WEP. WPA2-PSK uses a passphrase or key to

authenticate your wireless connection. You needn’t make any configuration here.

¾ Encryption Type: The encryption type here is set to be AES.

¾ Security Key: Enter the Key in the field to make your AP security enabled. It is

recommended that you specify another key instead of the default key 12345678. Only by

entering the corresponding key can other computers establish a successful connection with

your AP.

¾ IP Address: Here displays the IP address of the SoftAP.

Having completed the above settings, click Apply; then Figure 5-4 will pop up, where you click

OK to make Soft AP mode take effect.
