Плата WLAN

Removing the WLAN card

1 Follow the procedure in Before working inside your computer.

2 Remove the:

a stand

b back cover

c system board shield

3 To remove the WLAN card:

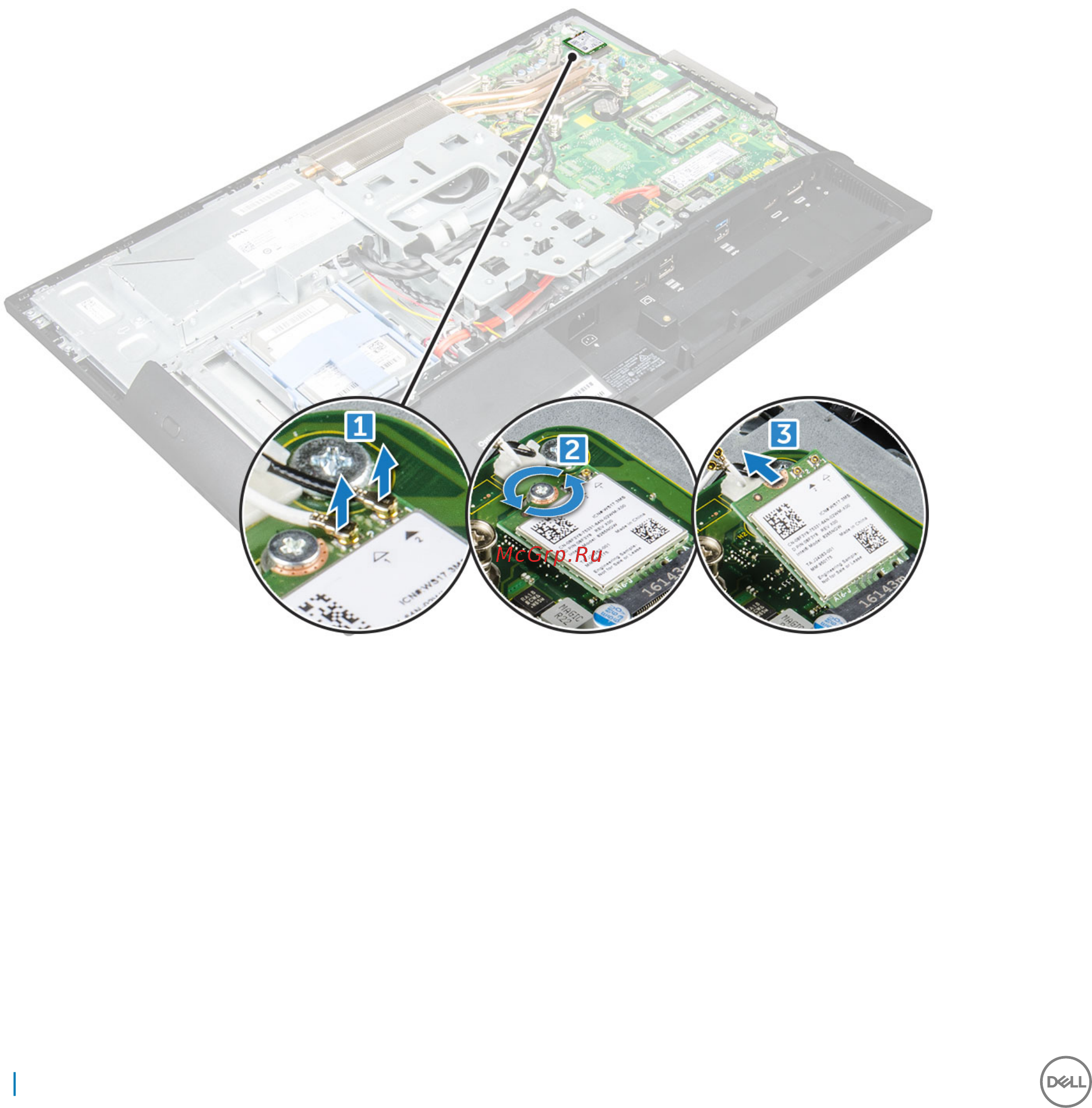

a Disconnect the antenna cables from the connectors on the WLAN card [1].

b Remove the screw that secures the WLAN card to the system board [2].

c Hold the WLAN card and pull it from the connector on the system board [3].

Installing the WLAN card

1 Align the WLAN card to the connector on the system board.

2 Tighten the screw to secure the WLAN card to the system board.

3 Connect the antenna cables to the connectors on the WLAN card.

4 Install the:

a system board shield

b back cover

c stand

5 Follow the procedure in After working inside your computer.
