TL-WN727N Wireless N USB Adapter User Guide

- 27 -

Chapter 4 4BAP Mode

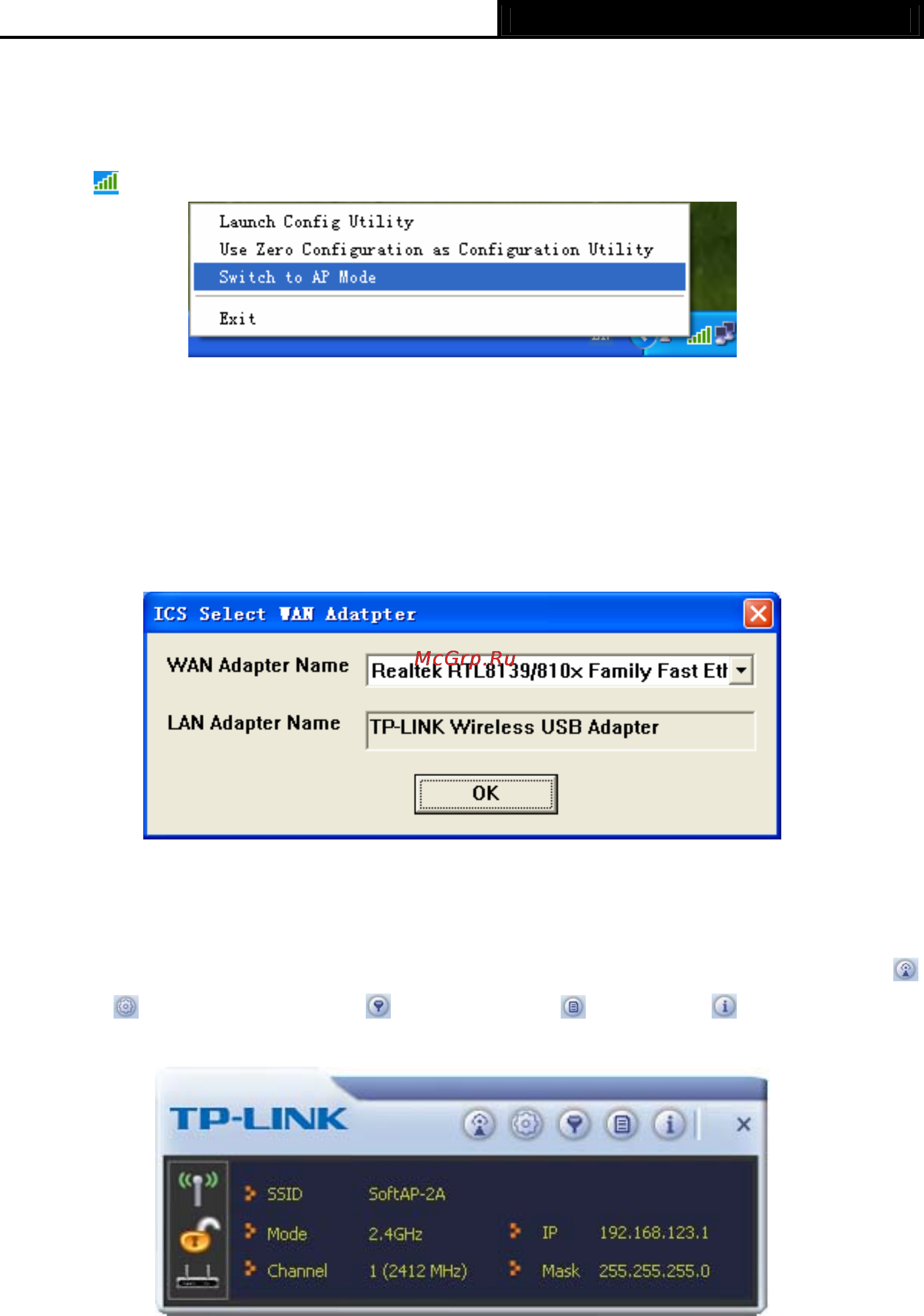

Click the icon to switch to AP Mode. In this mode you can use the TL-WN727N as a soft AP.

Figure 4-1

)

Note:

At this time, if your PC have Installed other network card (wireless or wire), you will be prompted

“ICS Select WAN Adapter” to select one of them to be “WAN”. With this function TL-WN727N can

serve as wireless router based on the selected card connecting to the Internet, which will make

the APs of the LAN share the Internet.

Figure 4-2

The configuration utility screen will then appear as shown in the figure below. By clicking the

corresponding icon, you can configure the AP, make some advanced settings and view the AP’s

status. The tools section shown in the following figure respectively stands for Config AP

Advanced

, Access Control List , Associate List and About from the left to the

right .

Figure 4-3

4.1 16BConfig AP

Click the Config AP icon to load the following screen and set the AP as you need.
