Tp-Link TL-WN727N [26/45] Link information

TL-WN727N Wireless N USB Adapter User Guide

- 21 -

Step 4 Click Start PIN on the following screen.

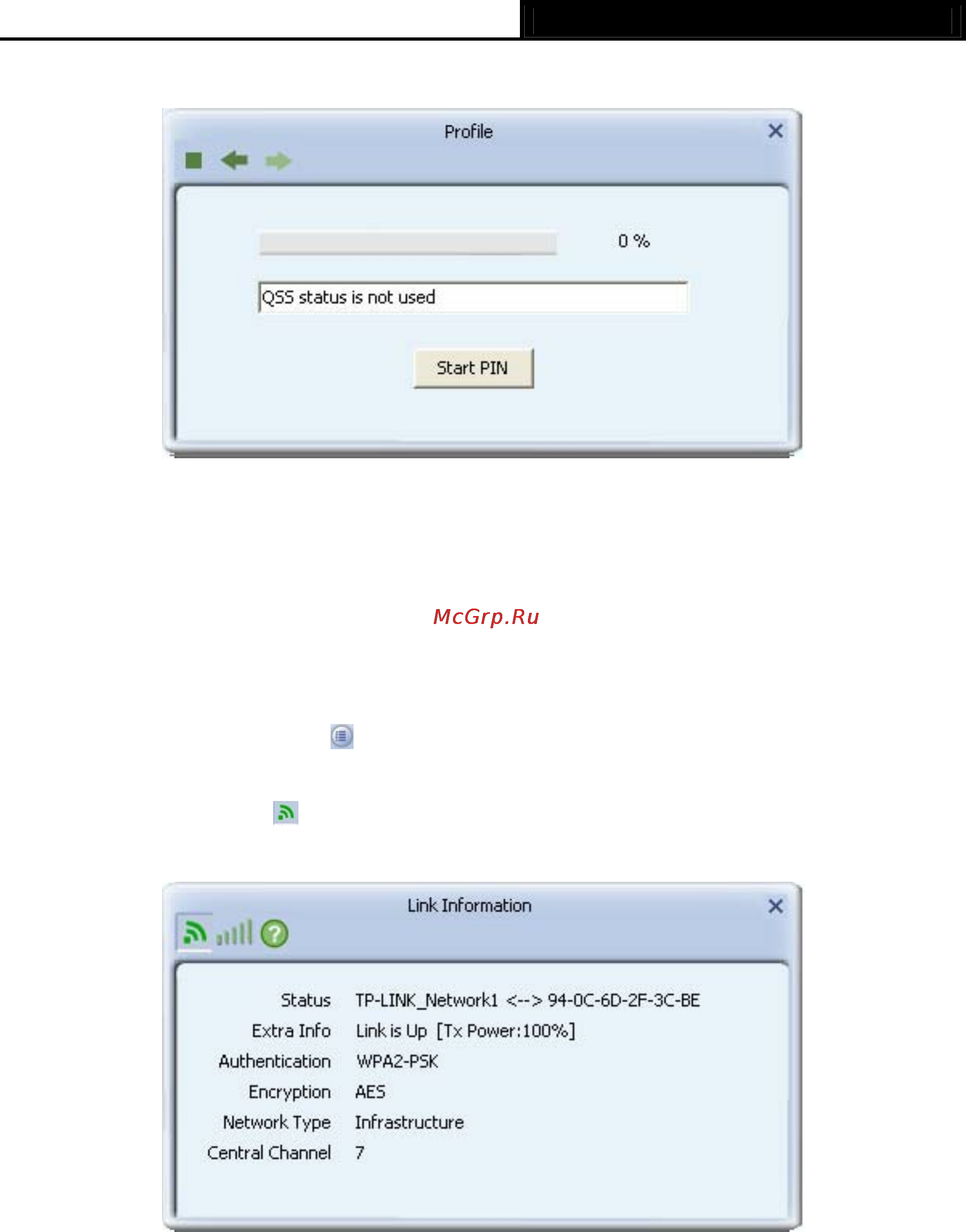

Figure 3-25 Start PIN

Step 5 When XFigure 3-19X appears, the configuration is complete.

) Note:

The default PIN code of the AP always can be found in its label or User Guide.

3.1.3 28BLink Information

Click the Link Information icon of the Utility and you will see the following screen displaying

the receiving and transmitting statistical information.

Click the Link Status icon

, you can view the current linking status of the Adapter as shown in

the figure below.

Figure 3-26 Link Status

The following table describes the items found on the Link Status screen.

¾ Status - Current connection status. If no connection, it will show Disconnected. Otherwise,

the SSID and BSSID will show here.

¾ Extra Info - Here displays the link status in use.

¾ Authentication - Shows the authentication mode in use.

¾ Encrtption - The encryption type in use is displayed here.
