TL-WN727N Wireless N USB Adapter User Guide

- 29 -

establish a successful connection with your AP.

Figure 4-7

4.2 17BAdvanced

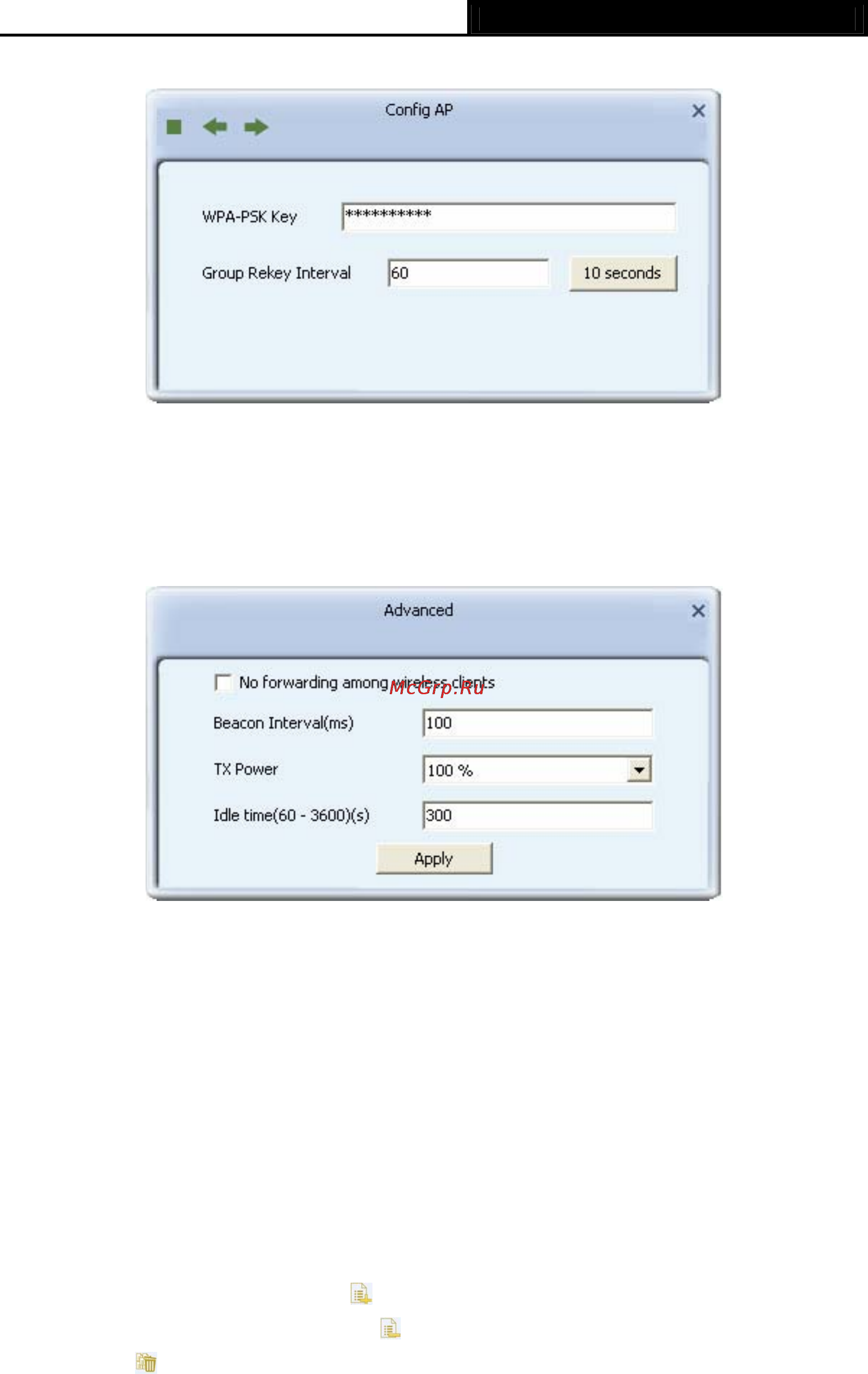

Click the Advanced icon, the following screen will appear. Here you can make some advanced

settings and click Apply to make these settings take effect.

Figure 4-8

¾ Beacon Interval(ms)- Enter a value between 20-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the router to synchronize a wireless network. Beacon

Interval value determines the time interval of the beacons. The default value is 100.

¾ TX Power - Manually force the AP’s transmitting power. System default is 100%.

¾ Idle Time - Manually force the Idle Time using a selected value. The default is 300.

4.3 18BAccess Control List

Click the Access Control List icon of the utility and the Access Control List screen will appear

XFigure 4-9X. In this page, you can enable/disable the AP to connect with the specified Mac

address. Click Allow All, and enter the Mac address allowed to connect to your AP in the empty

field beside MAC Address, then click

to add it to the list, shown in XFigure 4-10X. Highlight an

existing Mac address in the list and click

to remove it from the list as shown in XFigure 4-11X.

When clicking

, you will clear all the Mac addresses in the Access Control List as XFigure 4-12X.
