TL-WN781ND 150Mbps Wireless Lite N PCI Express Adapter
24
)
Note:
When auto profile selection is enabled by checking Auto Select Profiles on the Profile
Management tab, the client adapter will scan for an available network. The profile with the highest
priority and the same SSID as one of the found networks will be used to connect to the network. If
the connection fails, the client adapter will try the next highest priority profile that matches the
SSID until an available network is found.
3.3 Diagnostics
The Diagnostics tab of the TP-LINK Wireless Client Utility (TWCU) provides buttons used to
retrieve receiving and transmitting statistics. The Diagnostics tab does not require any
configuration.
The Diagnostics tab lists the following receiving and transmitting diagnostics for frames received
or transmitted by the wireless network adapter:
¾ Multicast frames transmitted and received
¾ Broadcast frames transmitted and received
¾ Unicast frames transmitted and received
¾ Total bytes transmitted and received

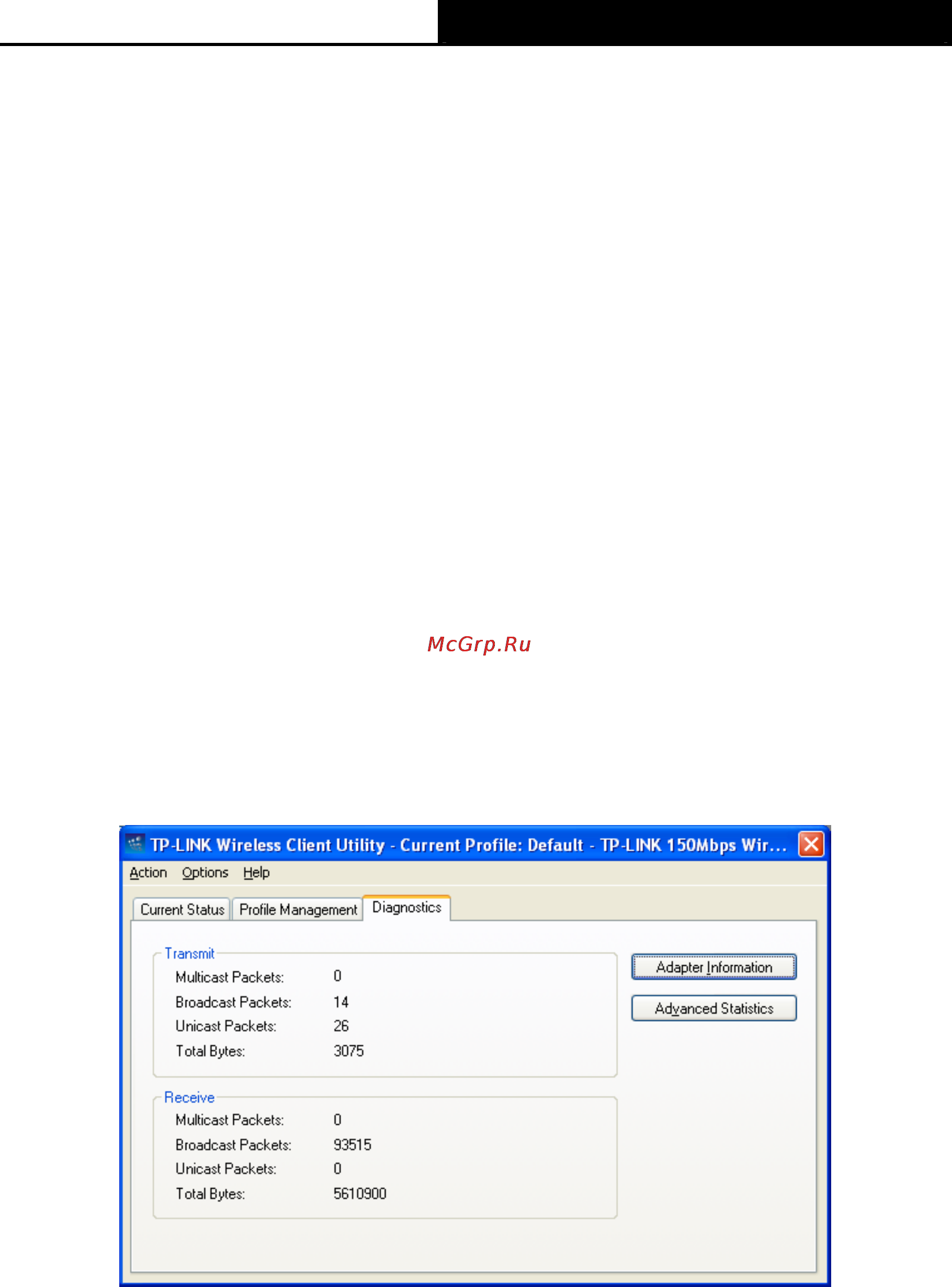

Figure 3-12
3.3.1 Check Driver Information
Click the Adapter Information button in the screen above, you will see the adapter information,
including general information about the wireless network adapter and the Network Driver Interface
Specification (NDIS) driver. Access the adapter information from the Diagnostics tab.
