Tp-Link TL-WN781ND [36/41] Pin method
![Tp-Link TL-WN781ND [36/41] Pin method](/views2/1041857/page36/bg24.png)
TL-WN781ND 150Mbps Wireless Lite N PCI Express Adapter
29

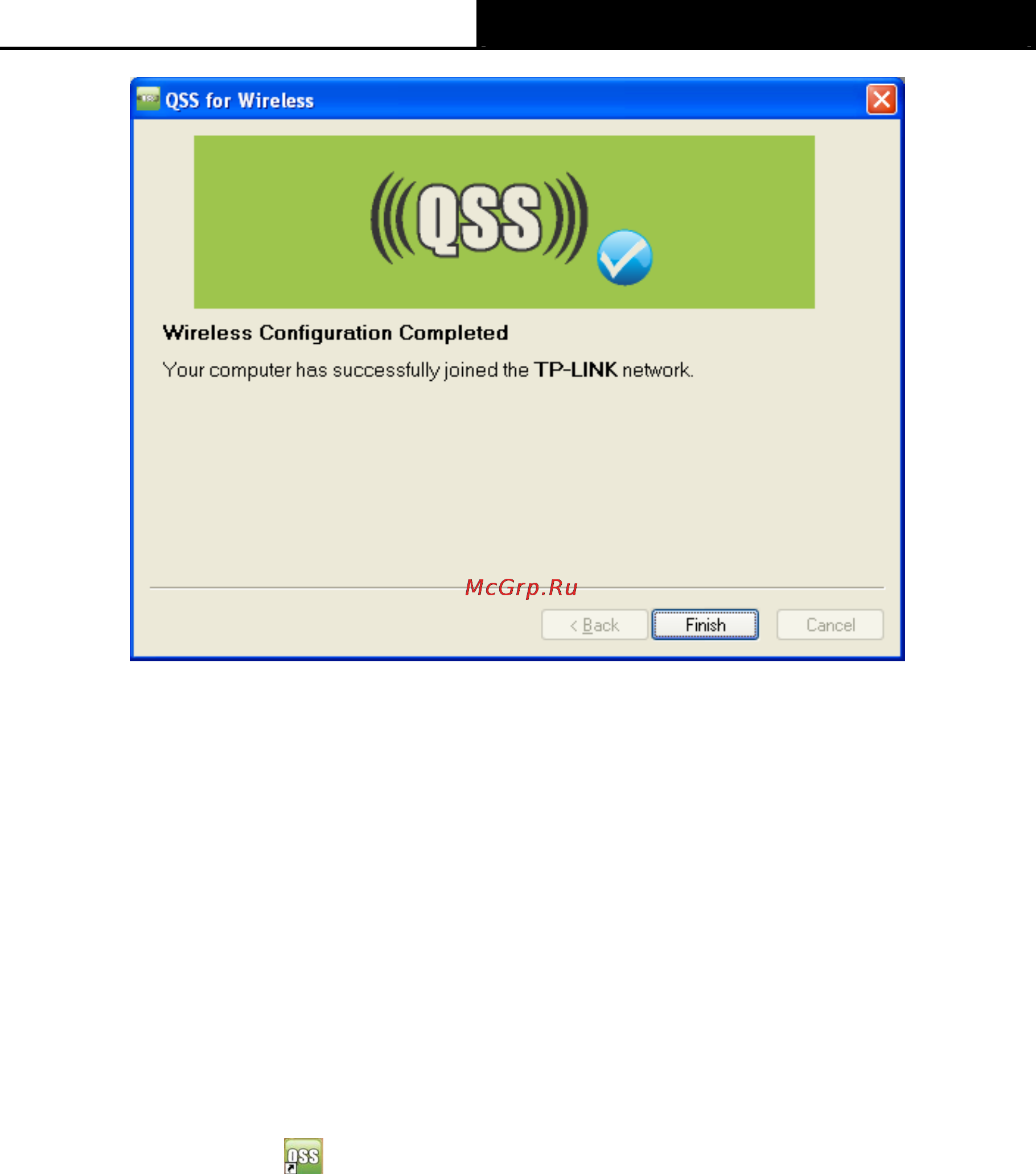

Figure 4-6
4.2 PIN method
There are two ways to configure the QSS by PIN method:
1 Enter a PIN into your AP device.
2 Enter the PIN from your AP device.
Following are the detailed configuration procedure of each way.
4.2.1 Enter a PIN into your AP device
1. Double click the icon on the desktop to open the QSS Utility and then you can see the
welcome screen shown as Figure 4-4 Click Next to continue. Figure 4-7 will appear. Select
the second option and you will see the PIN value of the adapter which is randomly generated.
Click Next.
