TL-WN781ND 150Mbps Wireless Lite N PCI Express Adapter
30

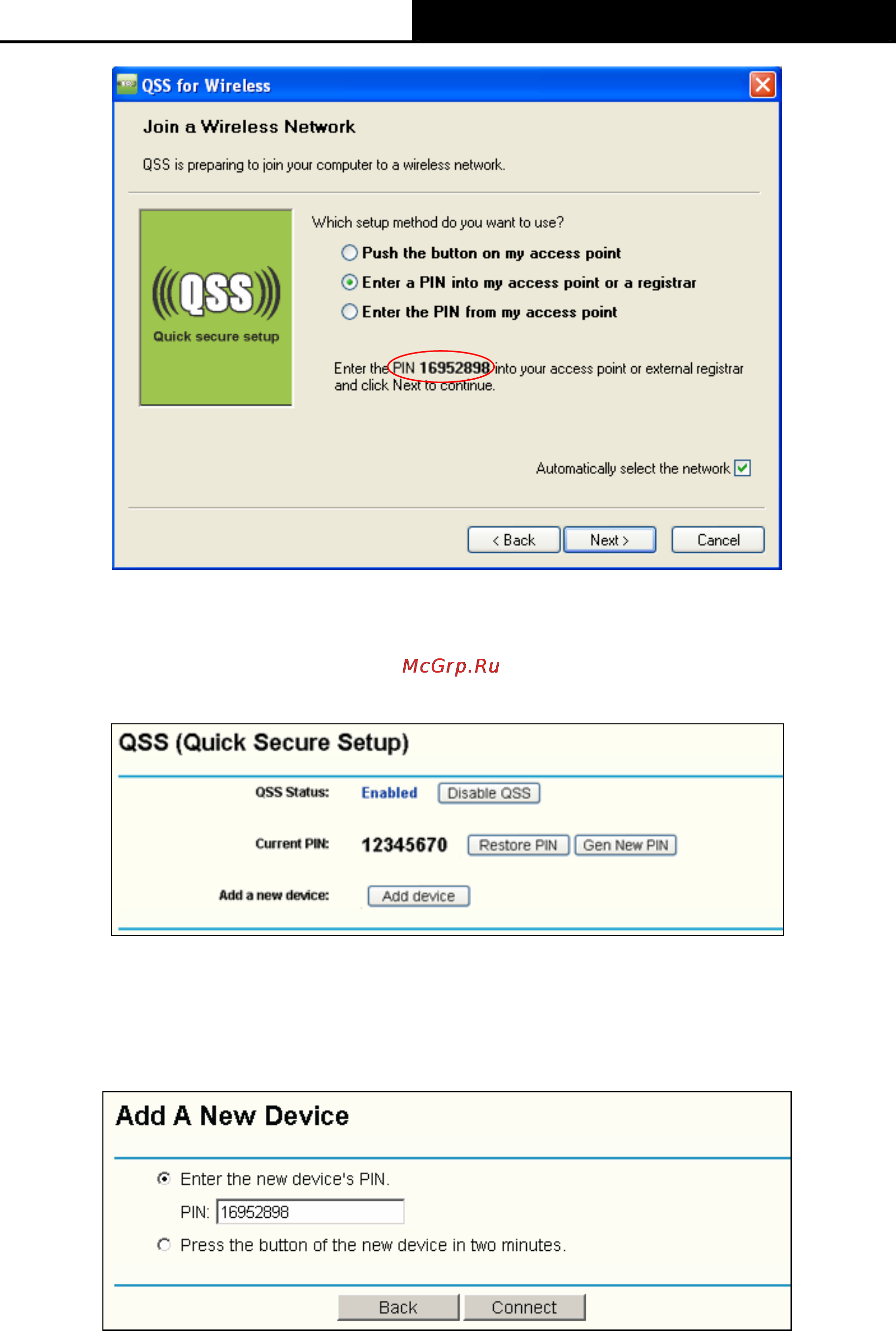

Figure 4-7
2. Open the Router’s Web-based Utility and click QSS link on the left of the main menu. Then
Figure 4-8 will appear.
Figure 4-8
3. Click Add device, then you can see Figure 4-9. Select Enter the new device’s PIN and
enter the PIN value of the adapter shown in Figure 4-9, click Connect.
Figure 4-9
4. When Figure 4-6 appears, the QSS configuration is complete.
