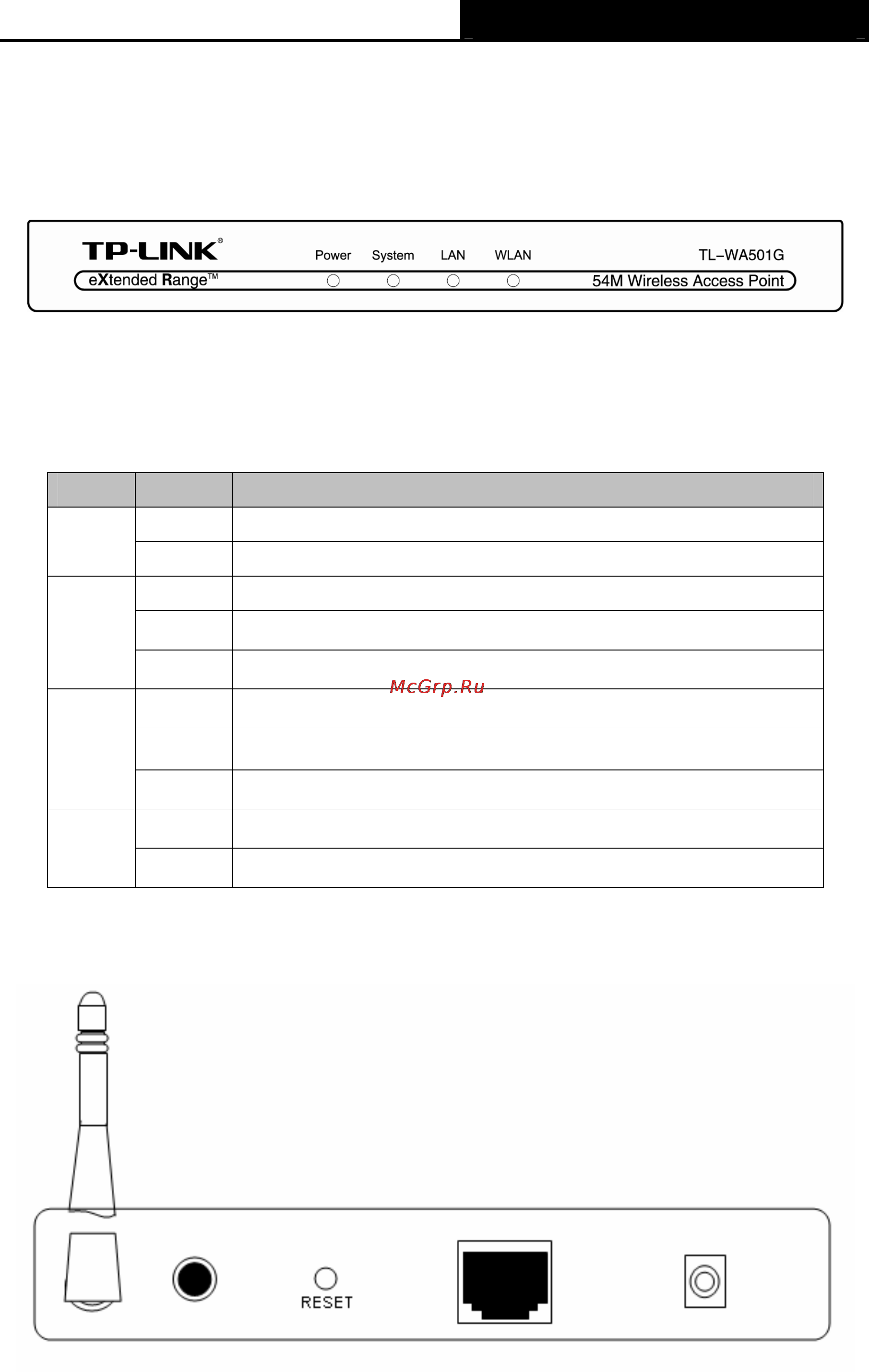

TL-WA501G 54M Wireless Access Point User Guide
Chapter 2 Hardware Installation
2.1 The Front Panel
Figure 2-1
The LED indicators displayed on the front panel, the status of these LED indicators represent the
device’s working circs. For details, please refer to 2.1.1 LED Explanation
2.1.1 LED Explanation
Name Status Indication
Off No Power
Power
On Power on
Off The AP has a hardware error
On
The AP is initialising
System
Flashing
The AP is working properly
Off
There is no device linked to the corresponding port
On
There is a device linked to the corresponding port but no activity
LAN
Flashing
There is an active device linked to the corresponding port
Off
The Wireless Radio function is disabled
WLAN
Flashing
The Wireless Radio function is enabled
2.2 The Back Panel
Figure 2-2
