TL-WA501G 54M Wireless Access Point User Guide

another DHCP server within your network or else you must manually configure the computer.

¾ Start IP Address - This field specifies the first of the addresses in the IP address pool.

192.168.1.100 is the default start address.

¾ End IP Address - This field specifies the last of the addresses in the IP address pool.

192.168.1.199 is the default end address.

¾ Address Lease Time - The Address Lease Time is the amount of time a network user will

be allowed connection to the system with their current dynamic IP Address. Enter the amount

of time, in minutes, the user will be "leased" this dynamic IP Address. The range of the time is

1 ~ 2880 minutes. The default value is 120 minutes.

¾ Default Gateway - (Optional.) Input the IP Address of the gateway.

¾ Default Domain - (Optional.) Input the domain name of your network.

¾ Primary DNS - (Optional.) Input the DNS IP address provided by your ISP. Or consult your

ISP.

¾ Secondary DNS - (Optional.) Input the IP address of another DNS server if your ISP provides

two DNS servers.

)

Note:

To use the DHCP server function of the AP, you must configure all computers on the LAN as

"Obtain an IP Address automatically" mode. This function will take effect until the AP reboots.

3.5.2 DHCP Clients List

This page shows Client Name, MAC Address, Assigned IP and Lease Time for each DHCP

Client attached to the AP (Figure 3-18):

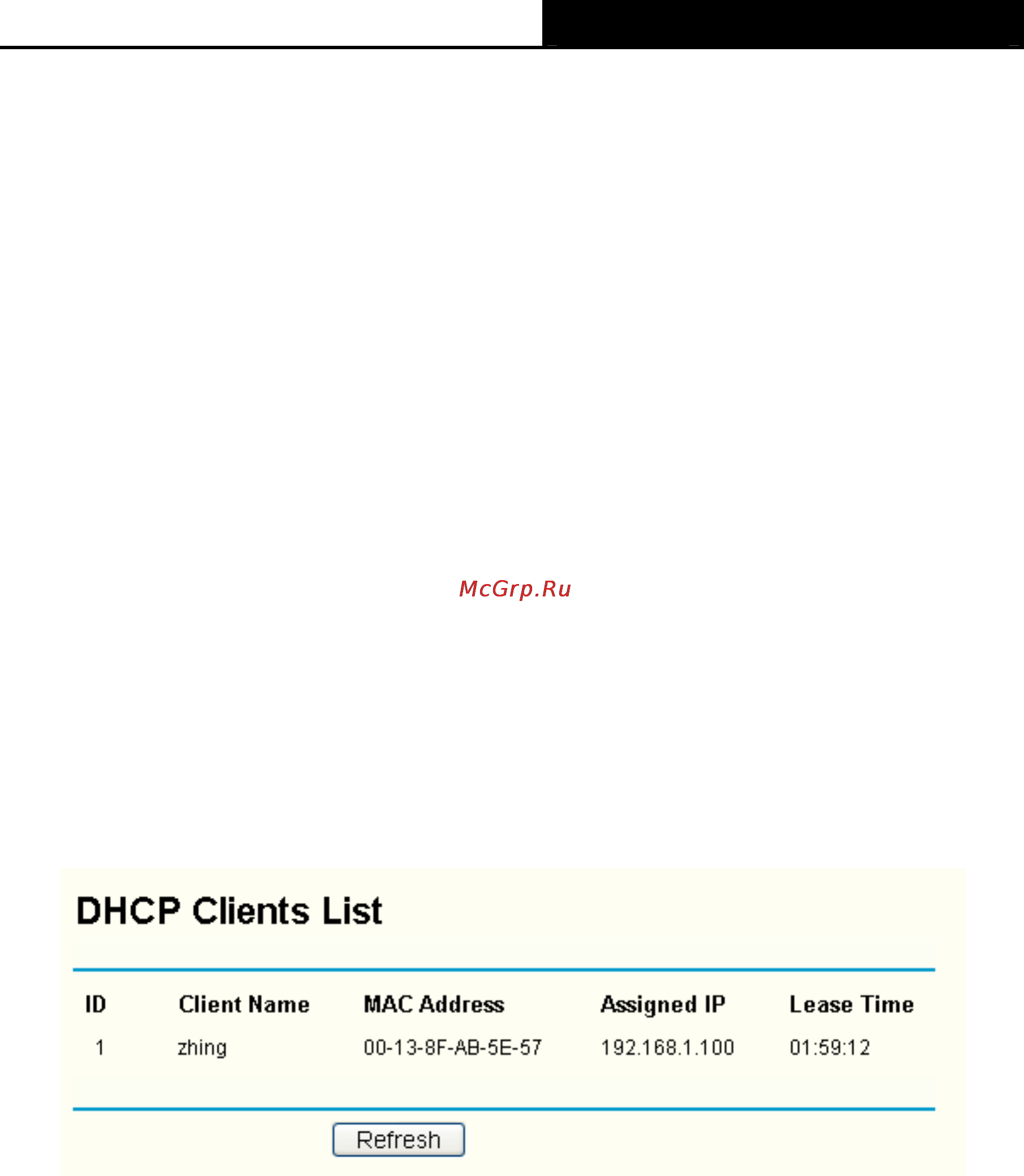

Figure 3-18 DHCP Clients List

¾ Index - The index of the DHCP Client

¾ Client Name - The name of the DHCP client

¾ MAC Address - The MAC address of the DHCP client

¾ Assigned IP - The IP address that the AP has allocated to the DHCP client.

¾ Lease Time - The time of the DHCP client leased. Before the time is up, DHCP client will

request to renew the lease automatically.

You cannot change any of the values on this page. To update this page and to show the current

attached devices, click on the Refresh button.

3.5.3 Address Reservation

When you specify a reserved IP address for a PC on the LAN, that PC will always receive the

same IP address each time when it accesses the DHCP server. Reserved IP addresses should be
