TL-WA501G 54M Wireless Access Point User Guide

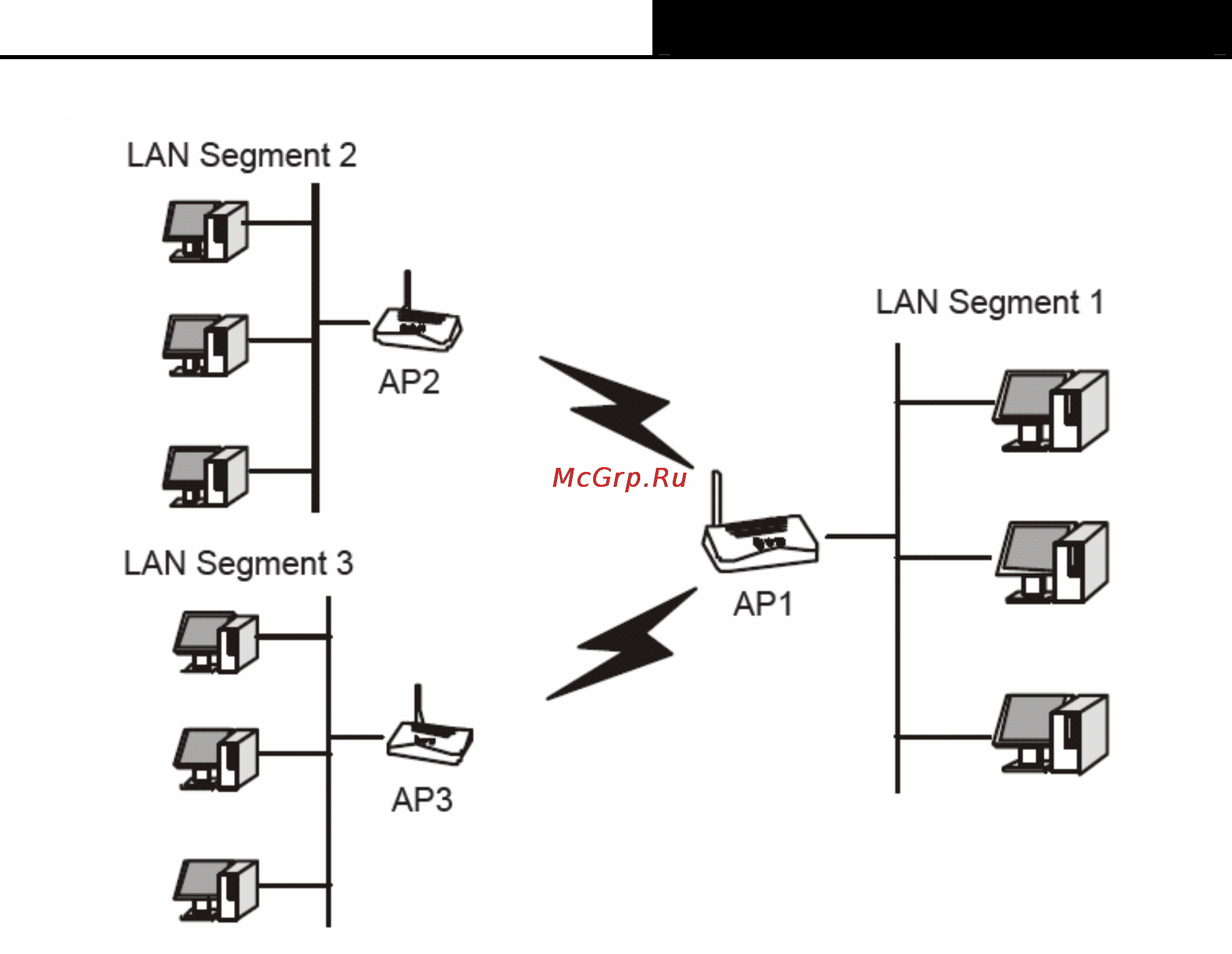

Figure 3-10 Point to Multi-point Bridge

1. Configure the Operating Mode of the TL-WA501G Access Points.

• Because it is in the central location, configure TL-WA501G (AP1) on LAN Segment 1 in

Point-to-Multi-Point Bridge mode. The MAC addresses of AP2 and AP3 are required in

AP1.

• Configure TL-WA501G (AP2) on LAN Segment 2 in Point-to-Point Bridge mode with the

MAC Address of AP1.

• Configure the TL-WA501G (AP3) on LAN 3 in Point-to-Point Bridge mode with the MAC

Address of AP1.

2. Verify the following parameters for all access points.

• All TL-WA501G Access Points use the same Channel, and security settings if any.

• All Point-to-Point APs must have AP1’s MAC address in its AP MAC address field, and

AP1 must have all All Point-to-Point APs’ MAC addresses.

3. Verify connectivity across the LANs.

• A computer on any LAN segment should be able to connect to the Internet or share files

and printers with any other PCs or servers connected to any of the three LAN segments.

• Wireless stations will not be able to connect to the TL-WA501G Access Points in the

illustration above. If you require wireless stations to access any LAN segment, you can

add TL-WA501G Access Points configured in Wireless Access Point mode to any LAN

segment.
