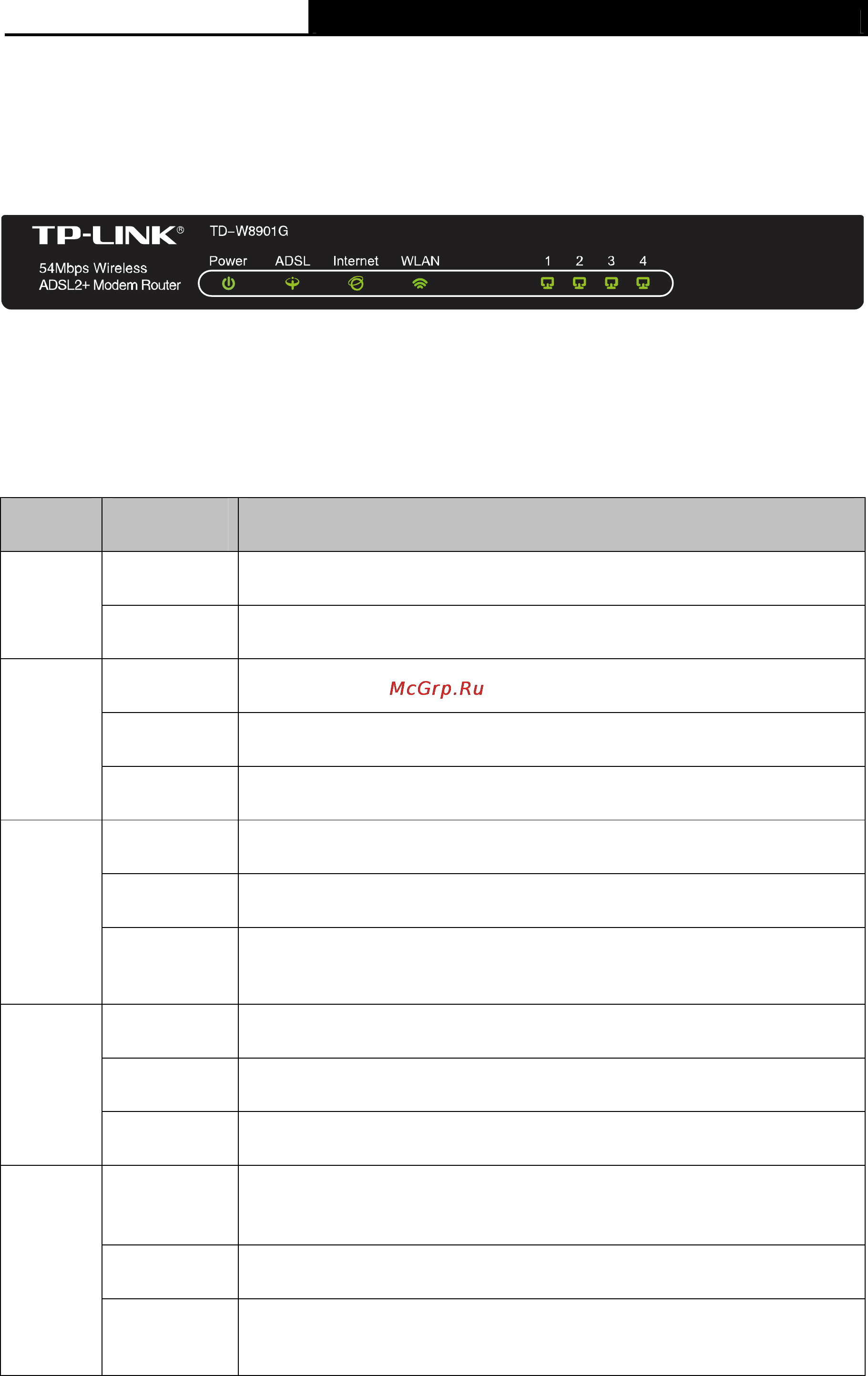

TD-W8901G 54Mbps Wireless ADSL2+ Modem Router User Guide
Chapter 2. Hardware Installation
2.1 The Front Panel
Figure 2-1
The LEDs locate on the front panel. They indicate the device’s working status. For details, please
refer to LED Explanation.
LED Explanation:
Name Status Indication
On Power is on.
Power
Off Power is off.
On The LINE port is linked up.
Flash The ADSL negotiation is in progress.
ADSL
Off The LINE port is linked down.
On A successful PPP connection has been built.
Flash Data is being transferred over the Internet.
Internet
Off
There is no successful PPP connection or the Router works on
Bridge mode.
On The wireless function is enabled but no data is being transmitted.
Flash There is wireless data being transmitted.
WLAN
Off The wireless function is disabled.
On
There is a successful connection on the corresponding 1-4 (LAN)
port but no activity.
Flash Data is being transferred over the 1-4 (LAN) port.
LAN(1-4)
Off
There is no connection on the corresponding 1-4 (LAN) port or the
connection is abnormal.
4
