TD-W8901G 54Mbps Wireless ADSL2+ Modem Router User Guide
)
Note:

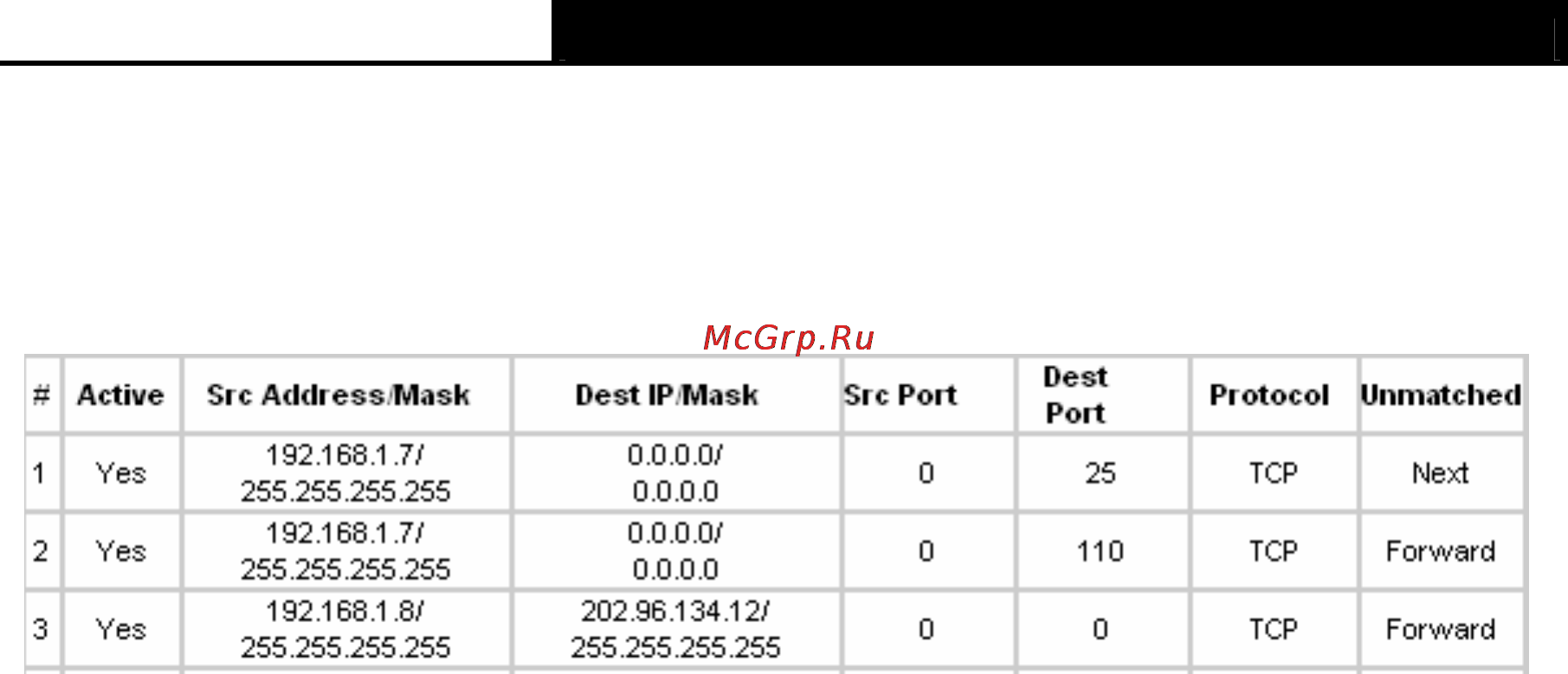

After you complete the IP filter rules for the example, the Filter list will show as follows. You can
enter the IP / MAC Filter Set Index to view the information about the rule.
Other operations for the entries as shown in Figure 4-36:
Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to view or modify the entry.
Select the IP / MAC Filter Set Index and IP/MAC Filter Rule Index to locate the specific rule, and
then click the DELETE button to delete the entry.
4.5.2.2. MAC Filter
Select IP/Mac Filter as the Filter type, and select MAC as the Rule type (shown in Figure 4-37),
and then you can configure the filter rules based on MAC address.
51
