TD-W8901G 54Mbps Wireless ADSL2+ Modem Router User Guide

will be added to the corresponding field automatically, you only need to configure the IP

address for the virtual server; If the application list does not contain the service that you

want, please configure the Port number, IP Address and Protocol manually.

Step 4: After that, click SAVE to make the entry take effect.

Other operations for the entries as shown in Figure 4-27:

Enter the index of assigned entry, and click the DELETE button to delete the entry.

Click the BACK button to return to the previous screen.

Click the CANCEL button to cancel the configuration which is made just now.

4.4.3.3. IP Address Mapping

Select Multiple for numbers of IPs in Figure 4-25, and choose “Advanced Setup→NAT→IP

Address Mapping(for Multiple IP Service)”. You can configure the Address Mapping Rule in the

next screen. The IP Address Mapping is for those VCs that configured with multiple IPs. The IP

Address Mapping rule is per-VC based (only for Multiple IPs' VCs).

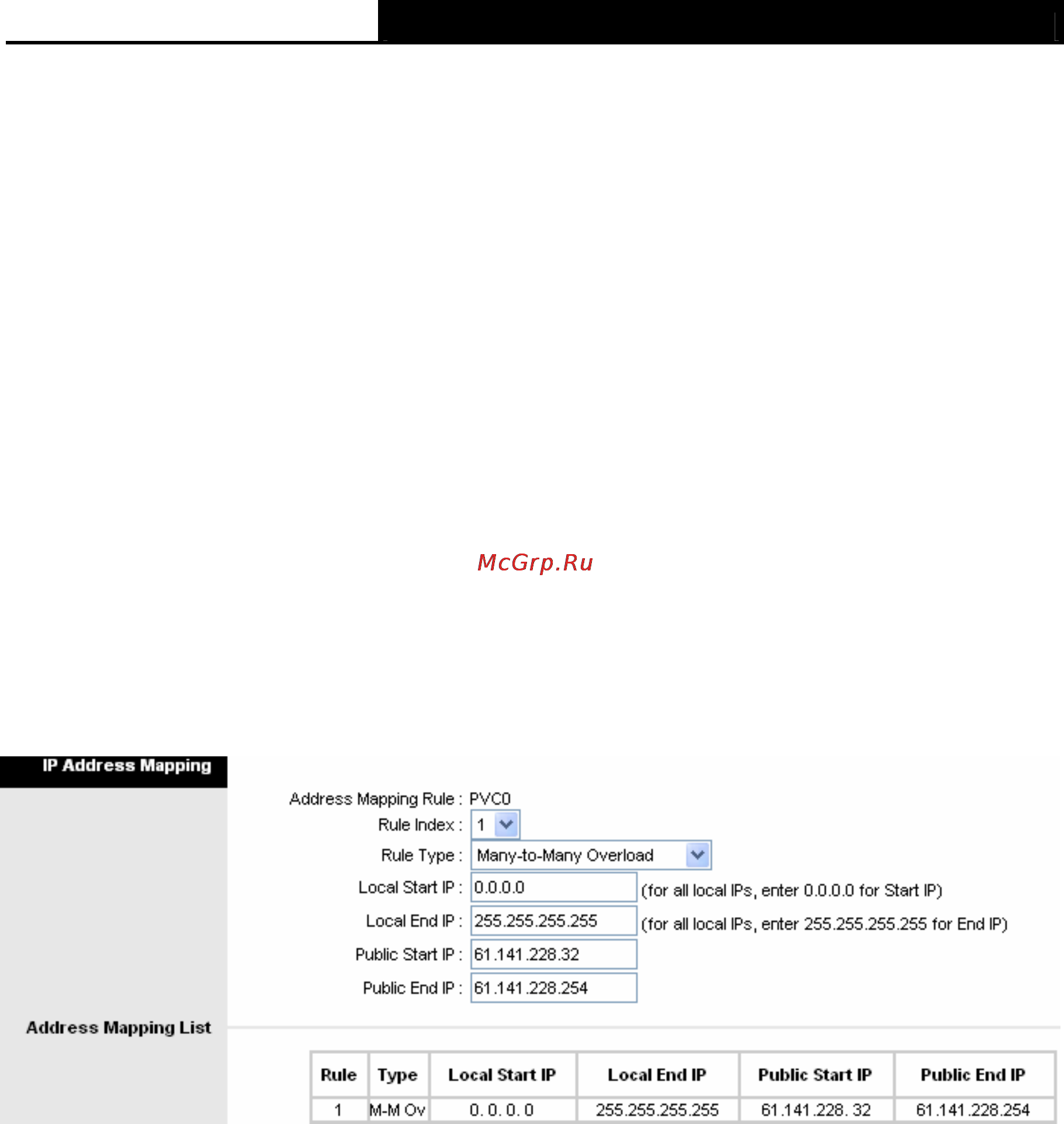

Figure 4-28

¾ Rule Index: Select the Virtual server rule index for this VC. You can specify 8 rules in

maximum.

¾ Rule Typ: There are four types: one-to-one, Many-to-One, Many-to-Many Overload and

Many-to-Many No-overload.

¾ Local Start & End IP: Enter the local IP Address you plan to map to. Local Start IP is the

starting local IP address and Local End IP is the ending local IP address. If the rule is for all

local IPs, then the Start IP is 0.0.0.0 and the End IP is 255.255.255.255.

¾ Public Start & End IP: Enter the public IP Address you want to do NAT. Public Start IP is the

starting public IP address and Public End IP is the ending public IP address. If you have a

dynamic IP, enter 0.0.0.0 as the Public Start IP.

¾ Address Mapping List: This displays the information about the Mapping addresses.
