TD-8817 ADSL2+ Modem Router User Guide
6
Third Step: Plug one end of the provided Power Adapter into the Power jack on the Router and
the other end to a standard electrical outlet.
Last Step: Check the line connection to see if everything is ready. Power up finally.

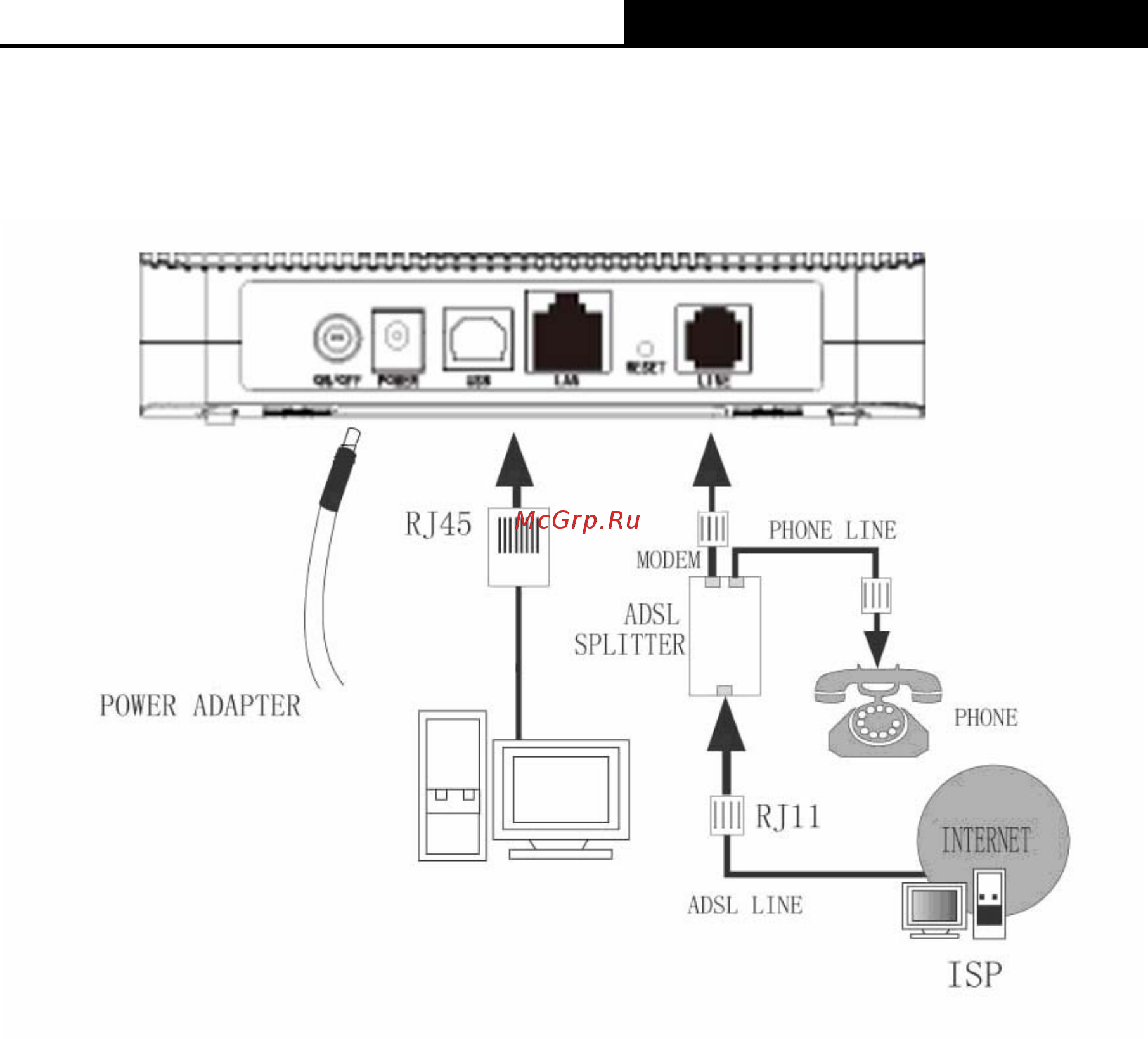

Figure 2-3
