TD-8817 ADSL2+ Modem Router User Guide

)

Note:

You can configure the PC to get an IP address automatically, select “Obtain an IP address

automatically” and “Obtain DNS server address automatically” in the screen above.

Now, you can run the Ping command in the command prompt to verify the network connection.

Please click the Start menu on your desktop, select run tab, type cmd or command in the field

and press Enter. To continue, please type ping 192.168.1.1 on the following appeared command

prompt screen and then press Enter.

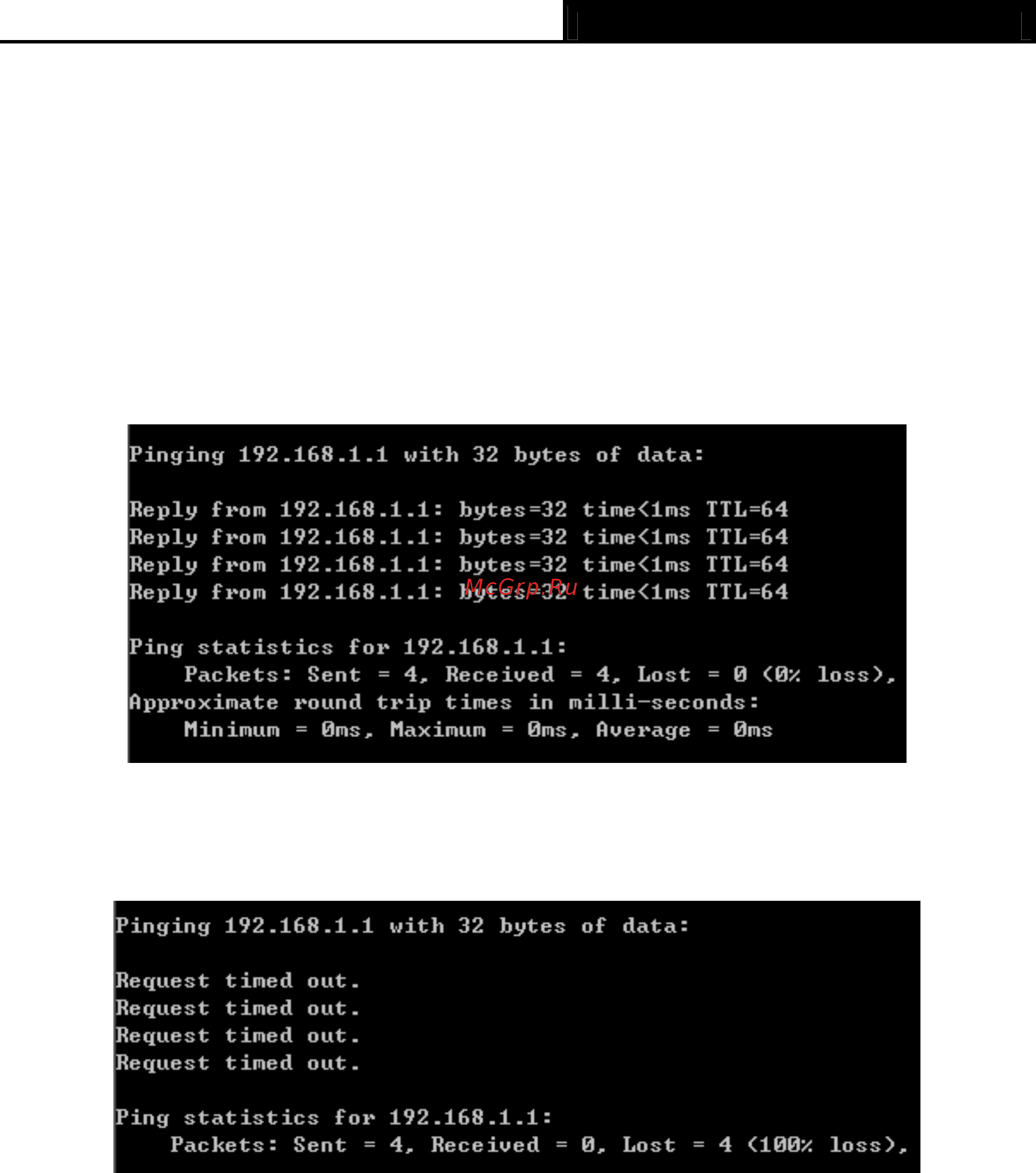

If the result displayed is similar to the screen below, the connection between your PC and the

Router has been established.

Figure 3-5

If the result displayed is similar to the screen shown below, it means that your PC has not

connected to the Router.

Figure 3-6

You can check it follow the steps below:

1) Is the connection between your PC and the Router correct?

The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should

be lit.

2) Is the TCP/IP configuration for your PC correct?

If the Router's IP address is 192.168.1.1, your PC's IP address must be within the range of

192.168.1.2 ~ 192.168.1.254.

3.2 USB Configuration

If you use the USB interface, First, you must install the USB’s driver to the computer. You can
