TD-8817 ADSL2+ Modem Router User Guide

4.4 Advanced Setup

Choose “Advanced Setup”, you can see the next submenus:

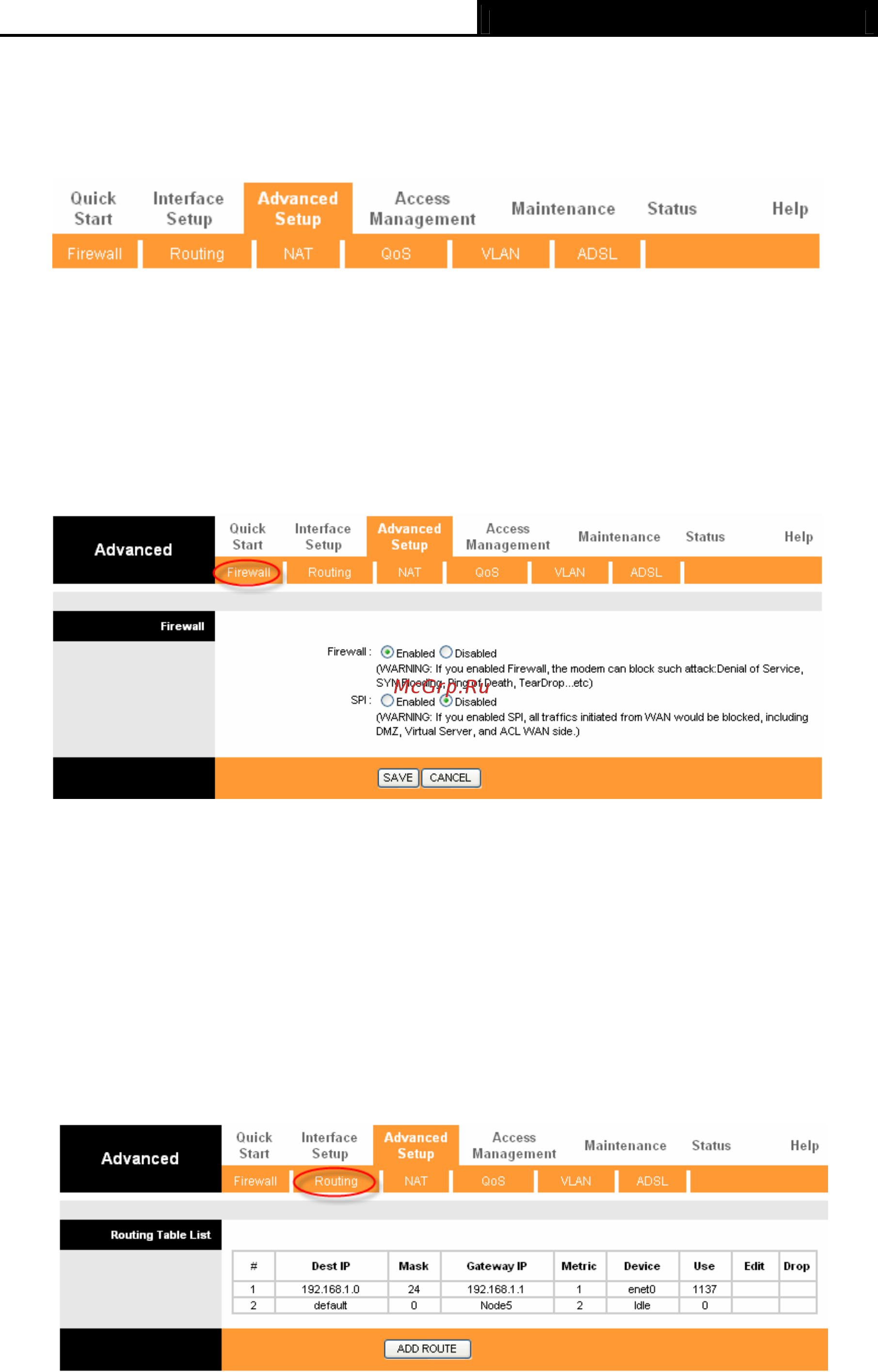

Figure 4-14

Click any of them, and you will be able to configure the corresponding function.

4.4.1 Firewall

Choose “Advanced Setup→Firewall” menu, and you will see the next screen (shown in Figure

4-15).

Figure 4-15

¾ Firewall: Select this option can automatically detect and block Denial of Service (DoS)

attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.

¾ SPI: If you enable SPI, all traffics initiated from WAN would be blocked, including DMZ,

Virtual Server, and ACL WAN side.

4.4.2 Routing

Choose “Advanced Setup→Routing” menu, and you will see the routing information in the next

screen (shown in Figure 4-16).

Figure 4-16
