TD-8817 ADSL2+ Modem Router User Guide

Click ADD ROUTE button to add a new route in the next screen (shown in Figure 4-17).

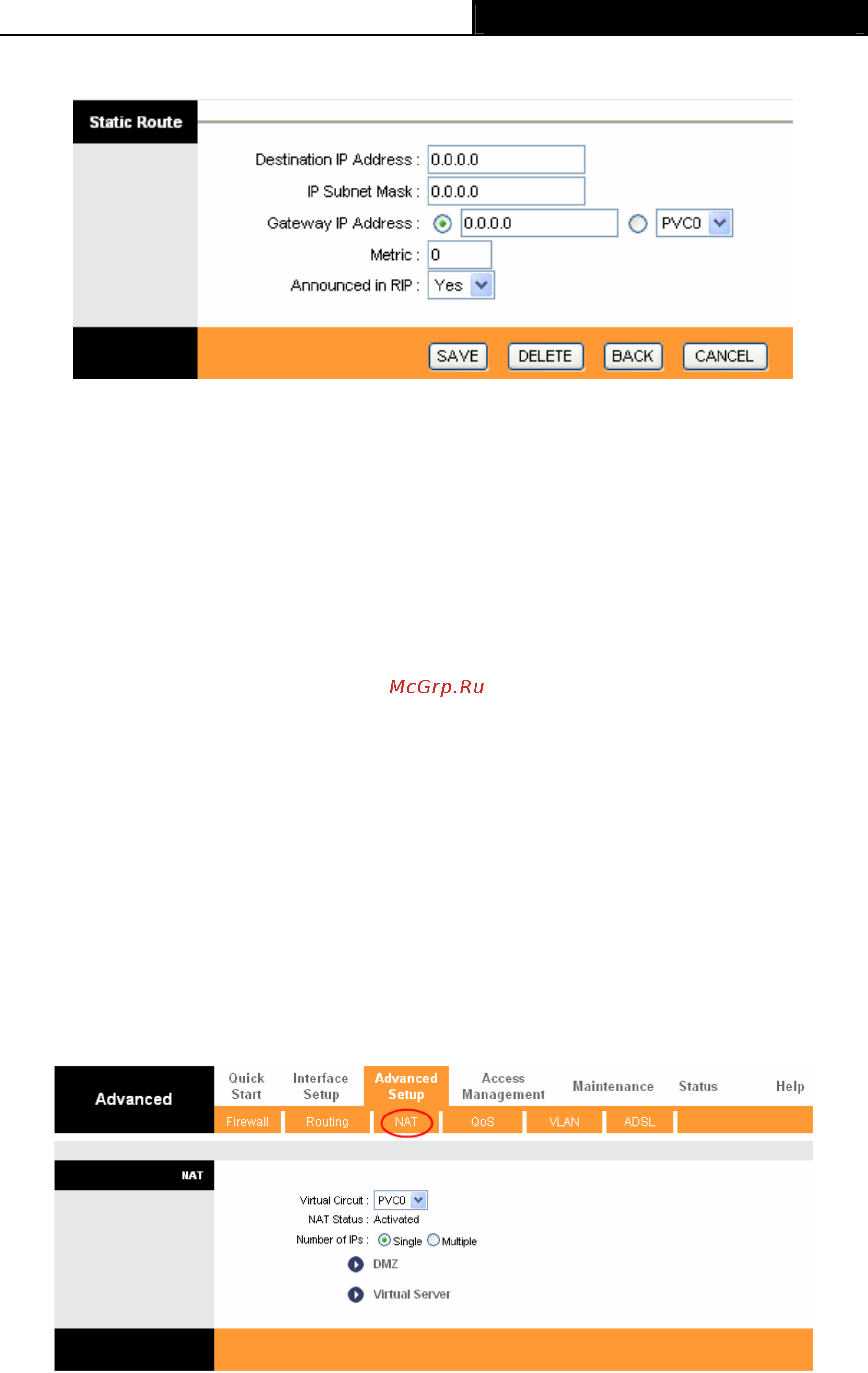

Figure 4-17

¾ Destination IP Address: This parameter specifies the IP network address of the final

destination.

¾ IP Subnet Mask: Enter the subnet mask for this destination.

¾ Gateway IP Address: Enter the IP address of the gateway. The gateway is an immediate

neighbor of your ADSL Router that will forward the packet to the destination. On the LAN, the

gateway must be a router on the same segment as your Router; over Internet (WAN), the

gateway must be the IP address of one of the remote nodes.

¾ Metric: Metric represents the "cost" of transmission for routing purposes. IP Routing uses

hop count as the measurement of cost, with a minimum of 1 for directly connected networks.

Enter a number that approximates the cost for this link. The number need not to be precise,

but it must between 1 and 15. In practice, 2 or 3 is usually a good number.

¾ Announced in RIP: This parameter determines if the ADSL router will include the route to

this remote node in its RIP broadcasts. If set to Yes, the route to this remote node will be

propagated to other hosts through RIP broadcasts. If No, this route is kept private and is not

included in RIP broadcasts.

4.4.3 NAT

Choose “Advanced Setup→NAT” menu, you can setup the NAT (Network Address Translation)

function for the Router (shown in Figure 4-18).

Figure 4-18
