TD-8616 ADSL2+ Modem User Guide

the rear panel of TD-8616, and insert the other end into the wall socket.

Method two：You can use a separate splitter. External splitter can divide the data and

voice, and then you can access the Internet and make calls at the same time. The

external splitter has three ports:

• LINE: Connect to the wall jack

• PHONE: Connect to the phone sets

• MODEM: Connect to the ADSL LINE port of TD-8616

Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel

of TD-8616. Connect the other end to the MODEM port of the external splitter.

Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s

Ethernet port or a regular hub/switch port, and the other end to the LAN port on the

TD-8616.

Step 3: Attach the power adapter. Connect the power adapter to the POWER connector on the

rear of the device and plug in the adapter to a wall outlet or power extension.

Step 4: Turn on the TD-8616 and power on the computers and LAN devices.

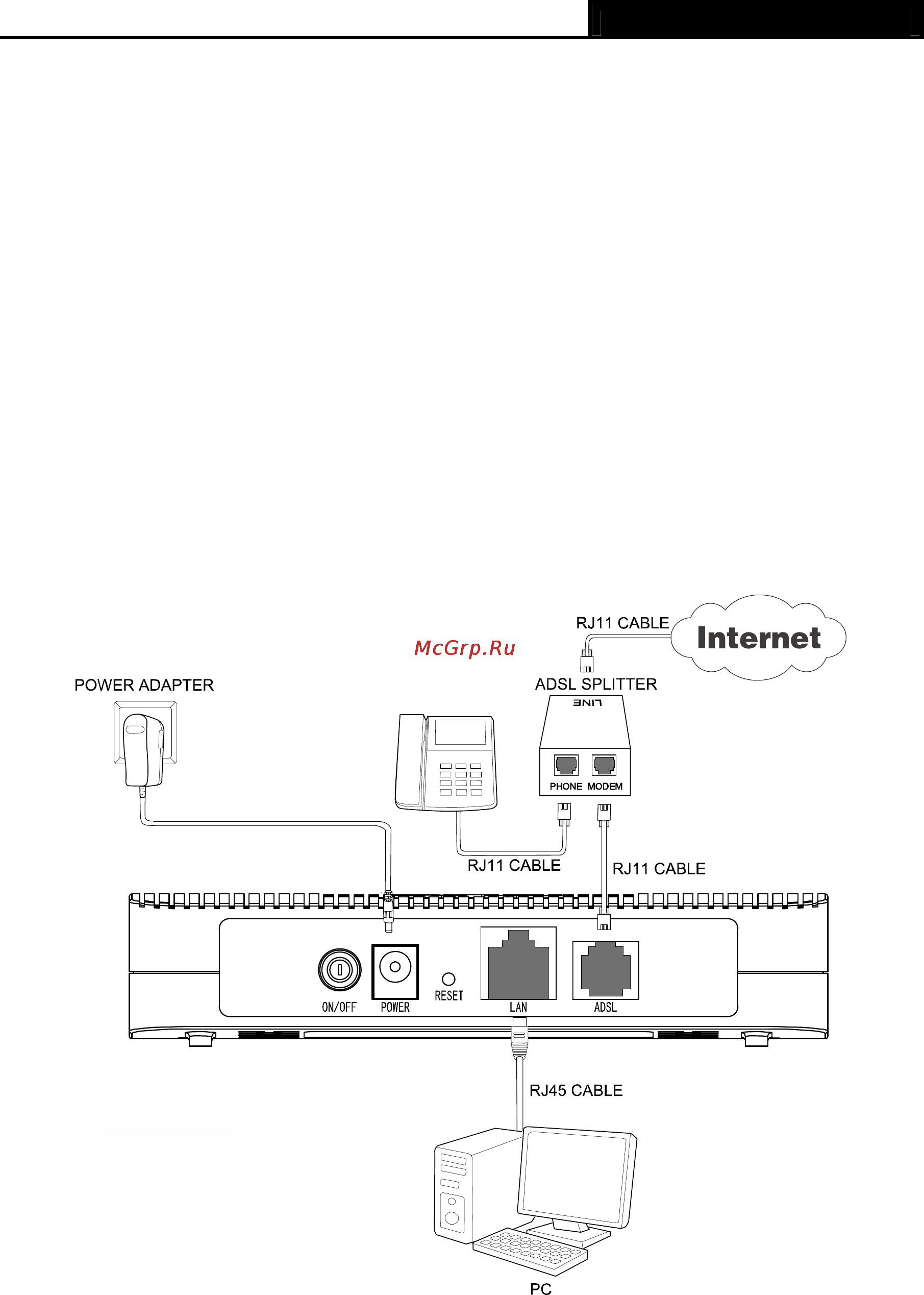

Figure 2-3
