TD-8616 ADSL2+ Modem User Guide

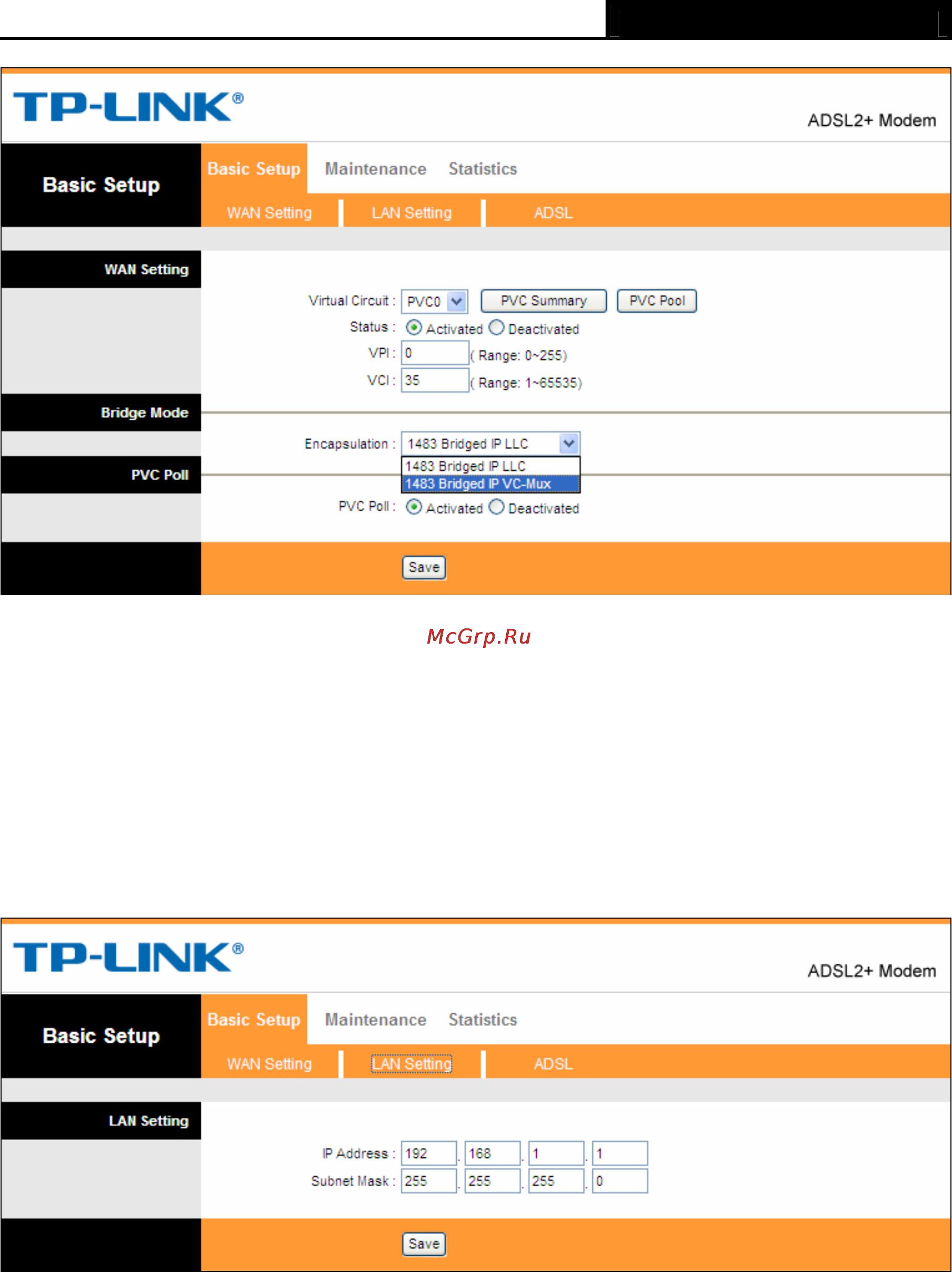

Figure 4-8

¾ Bridge Mode:

• PVC Pool: PVC Pool is defaulted as activated. If unnecessary, please do not modify the

status of PVC Pool.

4.2.2 LAN Setting

Choose “Basic Setup→LAN Setting” menu, and you will see the LAN screen (shown in Figure

4-9). Please configure the parameters for LAN ports according to the descriptions below.

Figure 4-9

¾ LAN Setting: These are the IP settings of the LAN interface for the device. These settings

may be referred to as Private settings. You may change the LAN IP address if needed. The

LAN IP address is private to your internal network and cannot be seen on the Internet.

• IP Address: Enter the Modem’s local IP Address, then you can access to the

Web-based Management page via the IP Address, the default value is 192.168.1.1.

• IP Subnet Mask: Enter the Modem’s Subnet Mask, the default value is 255.255.255.0.
