TD-8616 ADSL2+ Modem User Guide
15

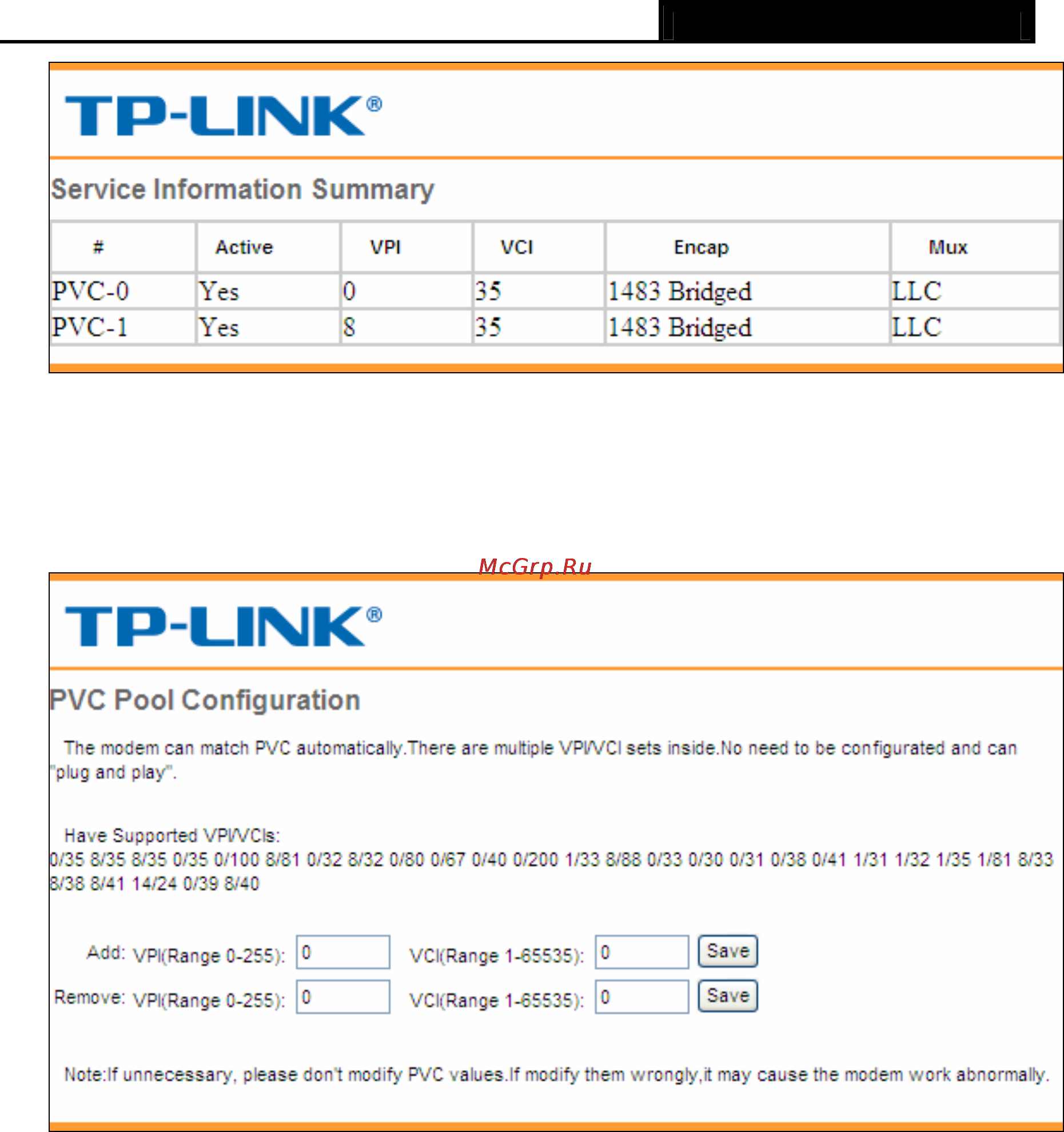

Figure 4-6
• PVC Pool: PVC Pool contains multiple VPI/VCI sets. The Modem can match PVC
automatically and it can be plug and play. The detailed VPI/VCI sets inside PVC Pool are
shown in Figure 4-7, besides you can add VPI/VCI sets to or remove VPI/VCI sets from
the PVC pool.
Figure 4-7
• Status: If you want to use a designed VC, you should activate it.
• VPI: Identifies the virtual path between endpoints in an ATM network. The valid range is
from 0 to 255. Please input the value provided by your ISP.
• VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from
32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value
provided by your ISP.
¾ Bridge Mode:
• Encapsulation: There are two connection types: 1483 Bridged IP LLC and 1483
Bridged IP VC-Mux. Please choose the appropriate type which ISP provides.
