Instruction for use
5

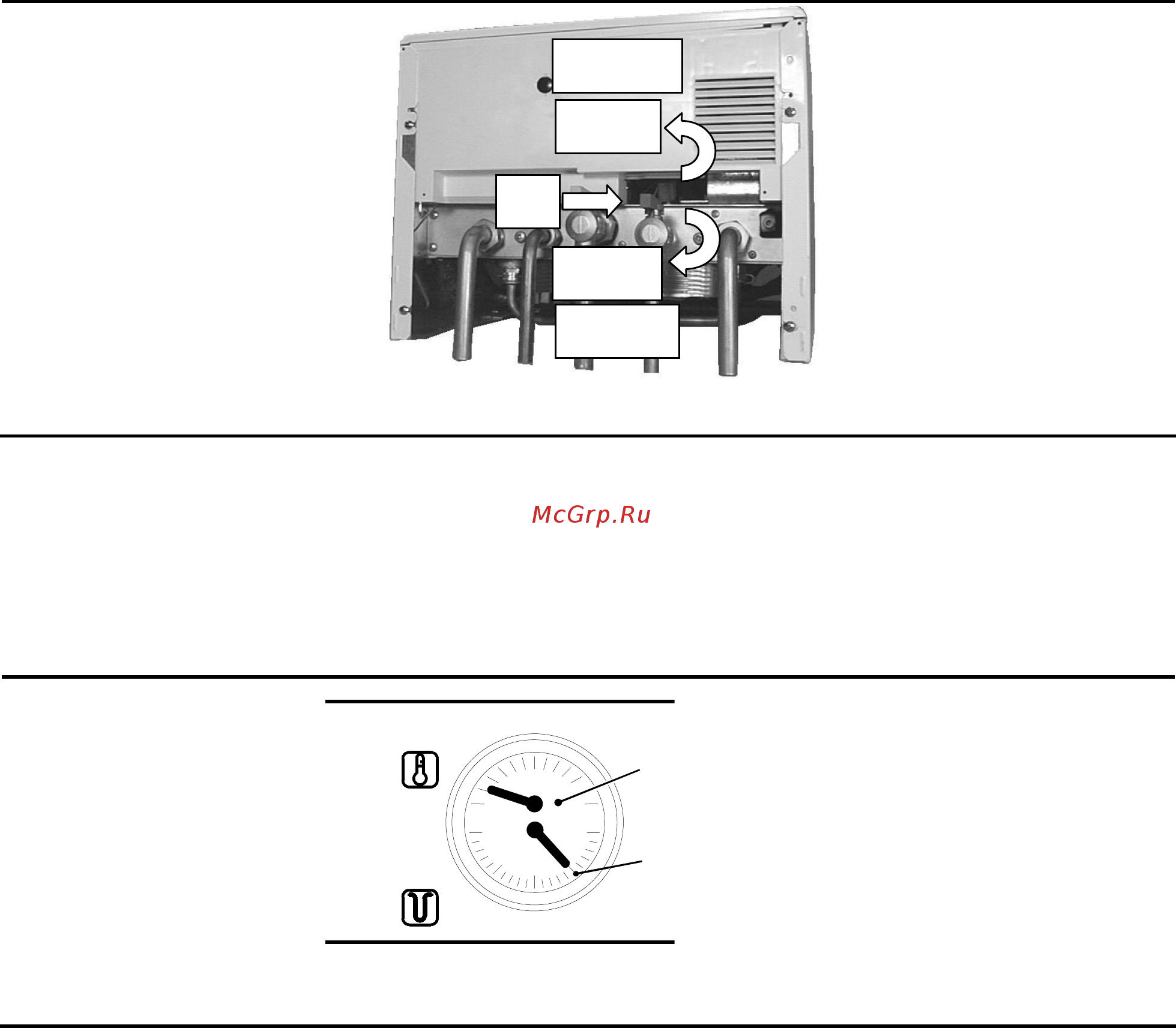

2.2 Refilling procedure
Заполнение системы
Open
Close
Jnrhsnm
Pfrhsnm
11
Fig. 2-1
1 Isolate the boiler from the electrical
supply at the fused spur.
1 Отключите бойлер от электросети,
отключив автомат.
2 Open the c.h. circuit filling valve
X11X
(
XFig. 2-1X) until the pressure
reaches the normal filling pressure
as shown in
XFig. 2-2X.
2 Откройте кран заполнения системы
отопления 11 (рис.2.1) и закройте,
когда давление достигнет значения,
указанного на рис.2.2.
0
0
1
2
3
4
30
60
90
120
4
Normal filling
pressure = 1bar
Yjhvfkmyjt
Lfdktybt
Fig. 2-2
If you experience any difficulty with the
operation of the boiler, switch off the
boiler immediately at the fused spur
isolation switch and contact your Installer
or an approved Service Engineer
Если вы столкнулись с какими-либо
трудностями при эксплуатации котла,
немедленно отключите его от
электросети и свяжитесь с Вашим
установщиком или представителем
Авторизованного сервисного центра
The pressure should be 1 - 1,5 bar. Уровень давления должен достигать 1-1,5
бар.
Close the C.h. circuit filling valve. Закройте кран заполнения системы
отопления.
