Tp-Link TL-PA251 [19/28] Add device

TL-PA251 AV200+ Multi-Streaming Powerline Adapter With AC Pass Through

4.1.3 Add Device

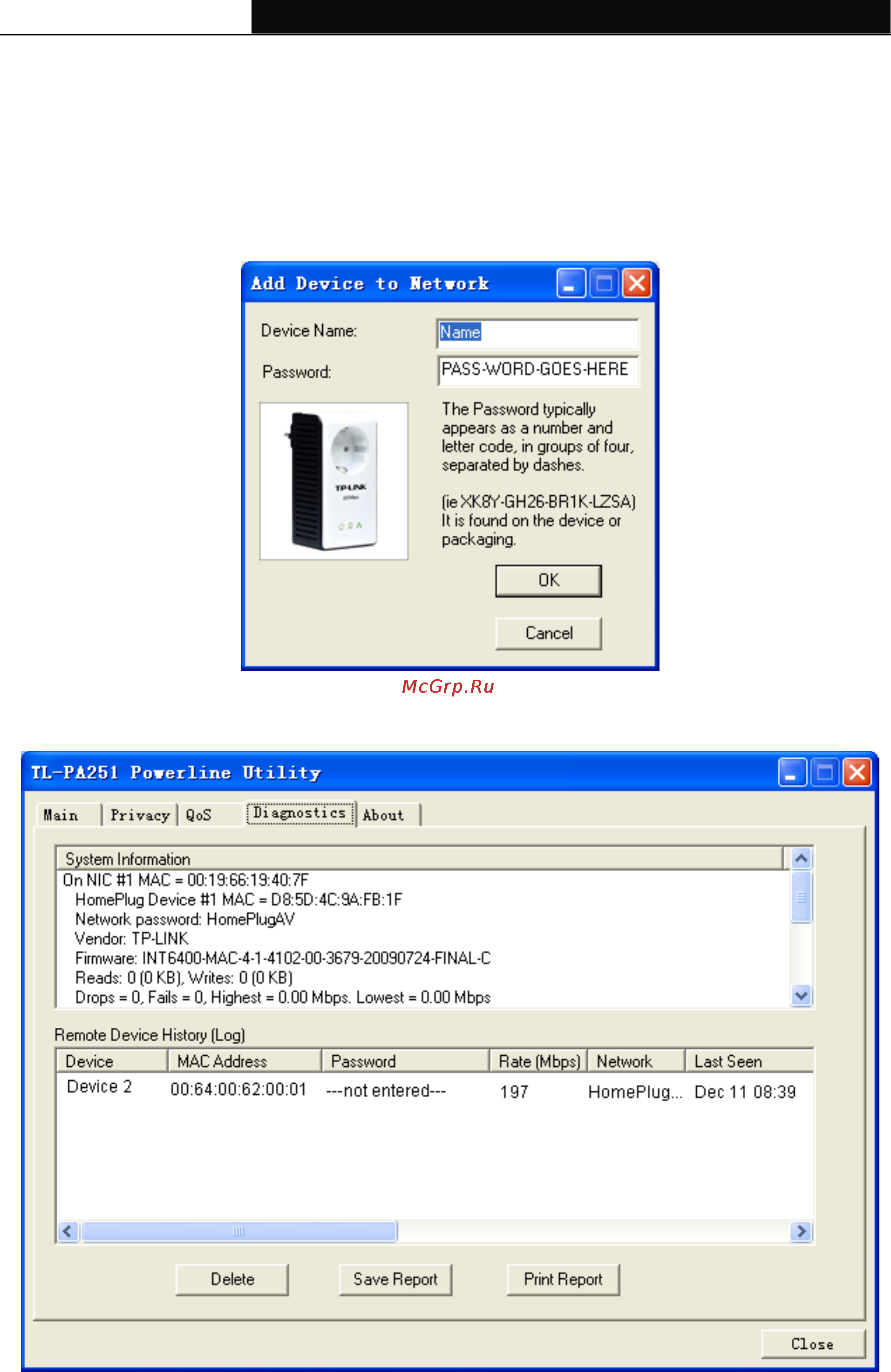

The following dialog will box pop up when clicking the “Add” button under Main configuration homepage.

The dialog box allows you to enter both the selected device’s name and password. Note that the

Powerline Adapter must be present on the power grid in order to activate the set password and add this

powerline adapter to the local network.

Enter your Device Name and Password (Take note to the password format) and click “OK” after setup.

The following screen will display after the naming and password setting process, which is also the

Diagnostics configuration homepage.
