1. Click Start, point to Settings, and select Printer.
2. Run Add Printer, Click Next.
3. The Add Printer Wizard screen will appear, Select Local Printer and click Next.
ct the
Standard TCP/IP Port, Click Next and Next.

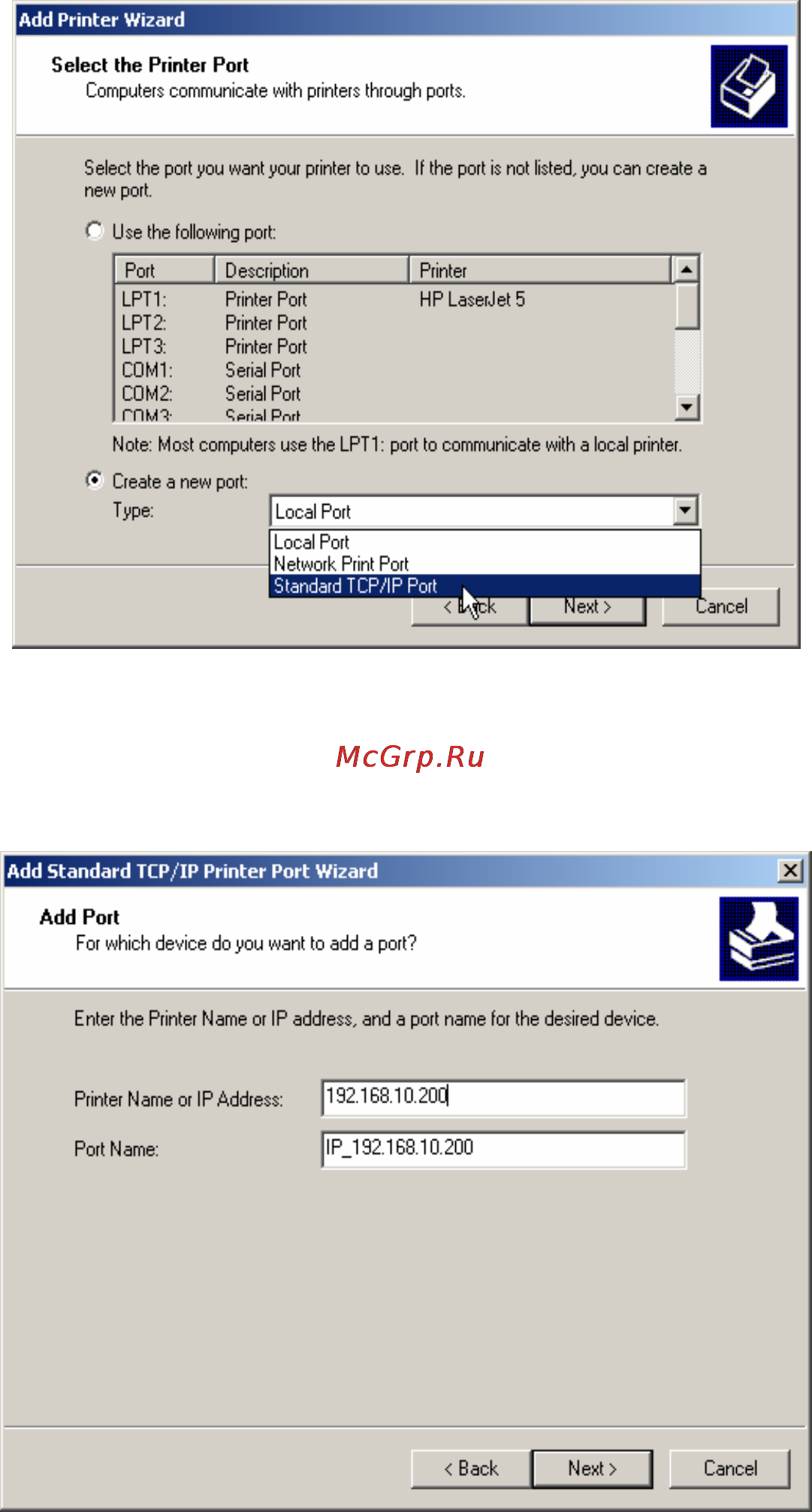

4. From the type of Create a new port box as shown in the following picture, sele
5. The Add Standard TCP/IP Printer Port Wizard box will then appear as shown the picture
as below, and type in the IP address assigned to the print server in the Printer Name
or IP Address box, Click Next.
. In the Add Standard TCP/IP Printer Port Wizard box as shown in
Select Custom, Click Settings button, and click Next.
6 the following picture,
55
