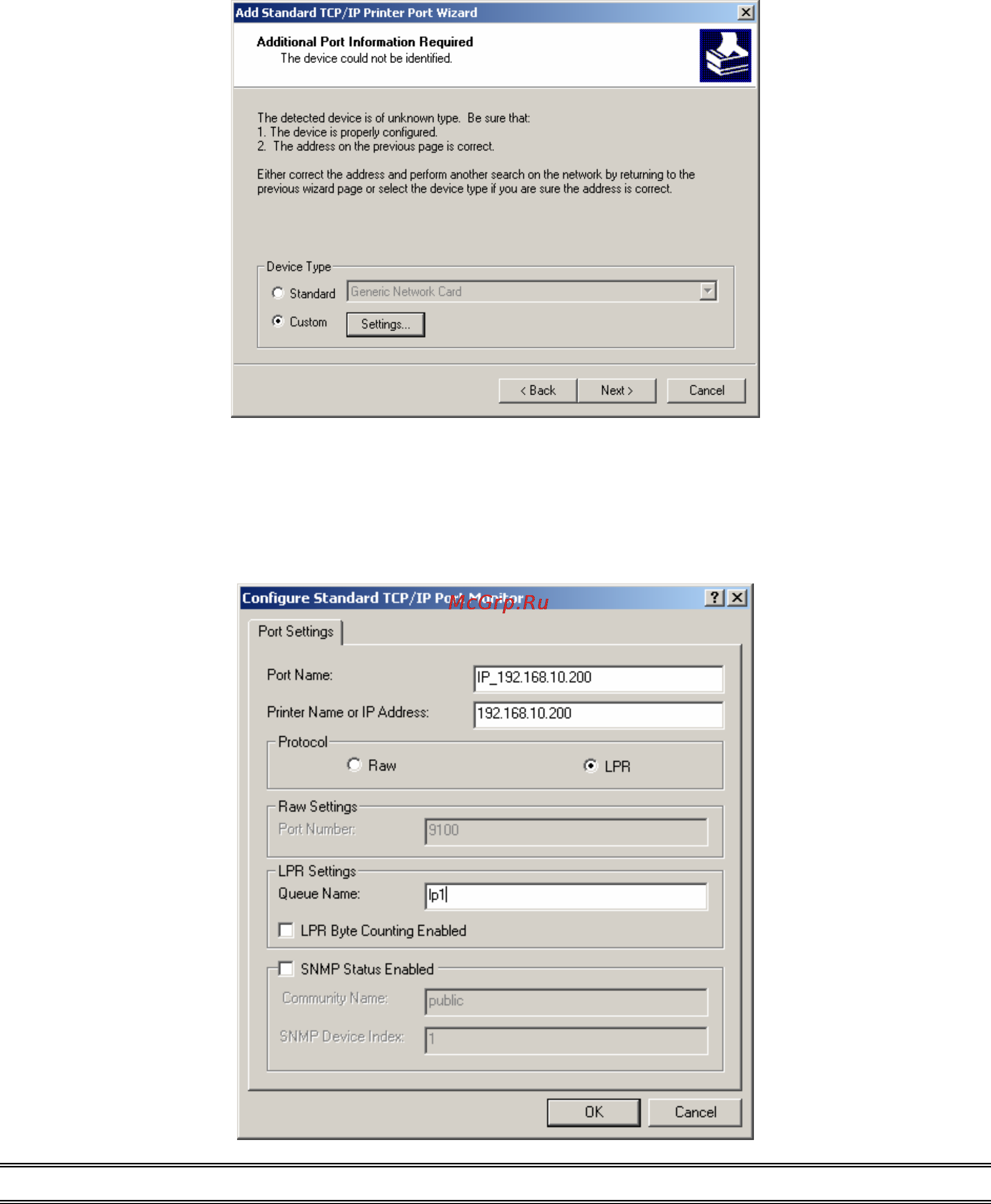

7. In the Configure Standard TCP/IP Port Monitor box as shown in the following picture,
select LPR form Protocol, type in a queue name, for example, lp1.
8. Click OK, and Next.
Note: Please DO NOT type any other name than lp1 in this step.
9. Click Finish.
ropriate printer manufacturer and printer type list and click Next. 10. Select the app
56
