TL-R488T Load Balance Broadband Router User Guide
6

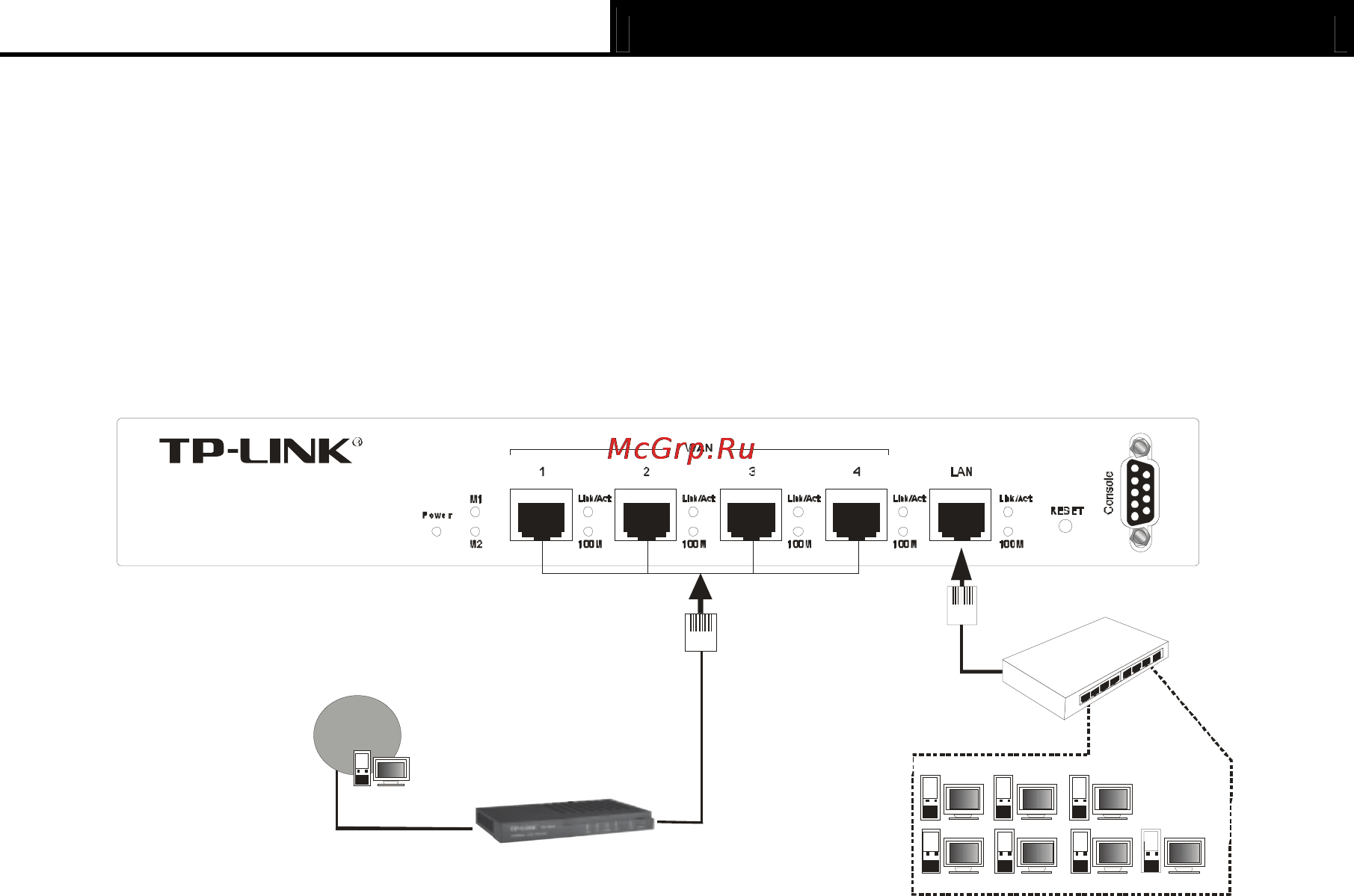

1. Power off your PC(s), Cable/DSL modem, and the router.
2. Connect the PC(s) and all Switches/Hubs on your LAN to the LAN Ports on the router, shown
in Figure 2-3.
3. Conn
ect the DSL/Cable modem to the WAN port on the router, shown in figure 3-1.
4. Connect the AC power adapter to the AC power socket on the router, and the other end into
an electrical outlet. The router will start to work automatically.
5. Power on your PC(s) and Cable/DSL modem.
LAN
To LA N
Switch/Hub
To WAN
（）XDSL Cable Ether net、、
INTERNET
ISP
TL-R488T
Quad-WAN Enter pris e Broadband Router
Figure 2-3
