9
P
LACING
T
HE
S
WITCH IN A STACK

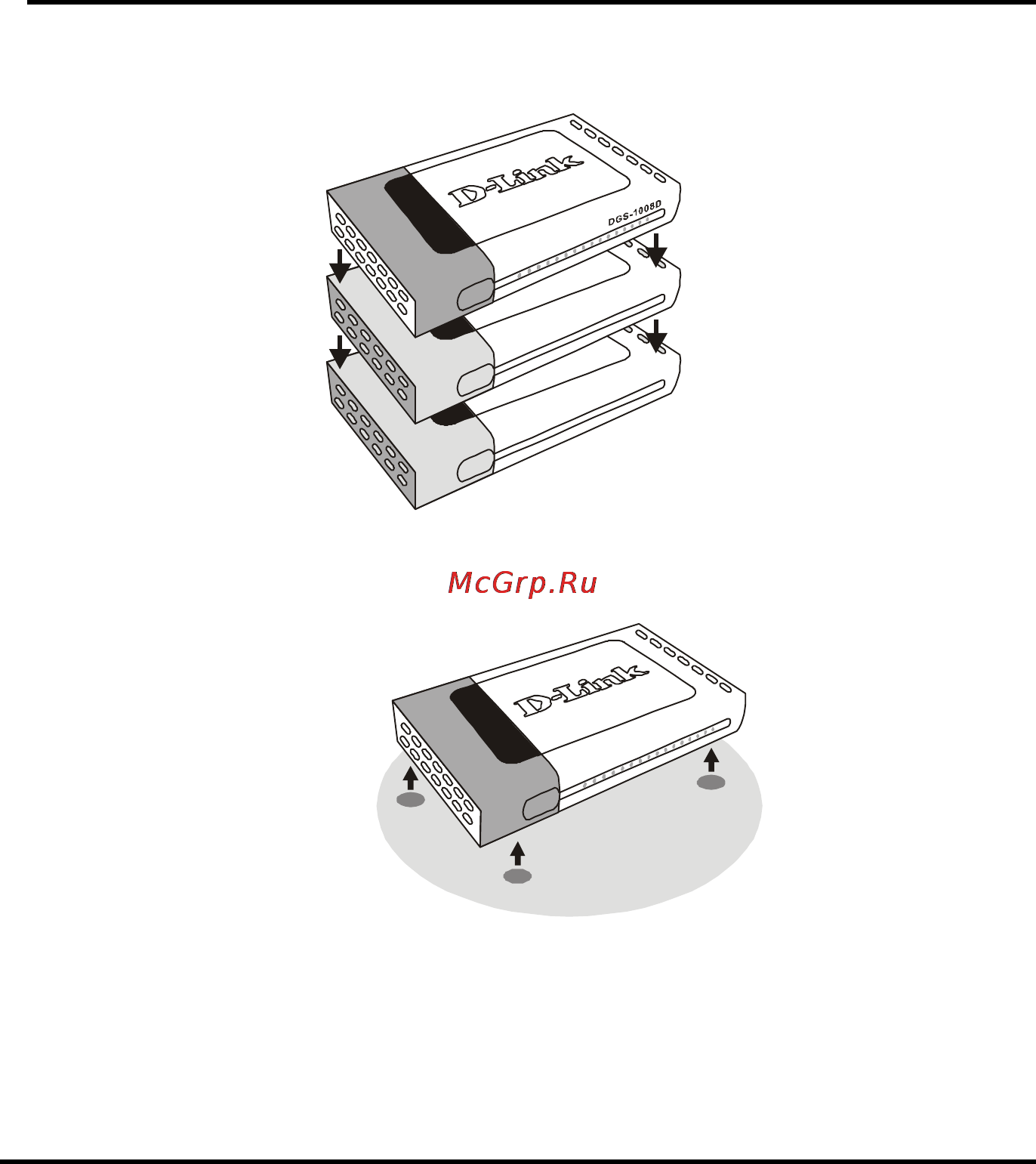

If you intend to place the DGS-1005D Switch in a stack with other devices (see
Figure 1), please adhere to the following guidelines:
DGS-1008D
Use rubber feet provided. Position and apply rubber feet to the underside of
the DGS-1008D Switch (see Figure 2).
Place the Switch on top of the stack of devices. When stacking devices
together, place the DGS-1008D Switch on the top of all other devices in the
stack (see Figure 3)
