Rear Panel
The rear panel of the Switch consists of five (5) Gigabit Ethernet,
Auto-Negotiating ports and a DC power jack.
DC Power Jack
5 4 3
2 1
5V 2.5A

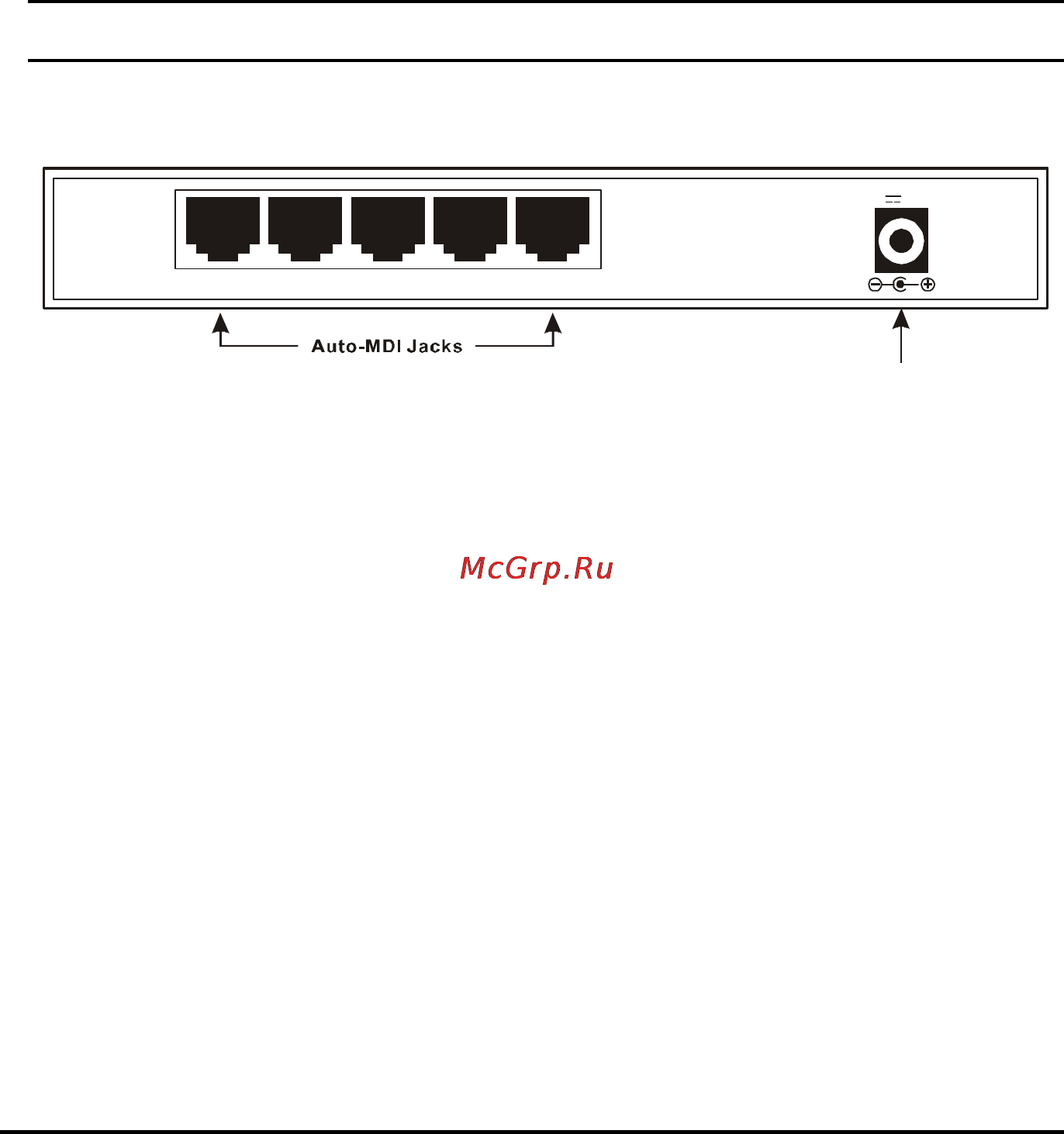

Rear panel view of the Switch
DC Power Jack:
Power is supplied through an external AC power adapter. Check the technical
specification section for information about the AC power input voltage.
1000BASE-T Ports:
Five (5) Gigabit Ethernet ports of 10/100/1000Mbps Auto-Negotiation
interface.
Comprehensive LED indicators display the conditions of the Switch
and status of the network.
