Fluke 117 [5/20] Basic maintenance

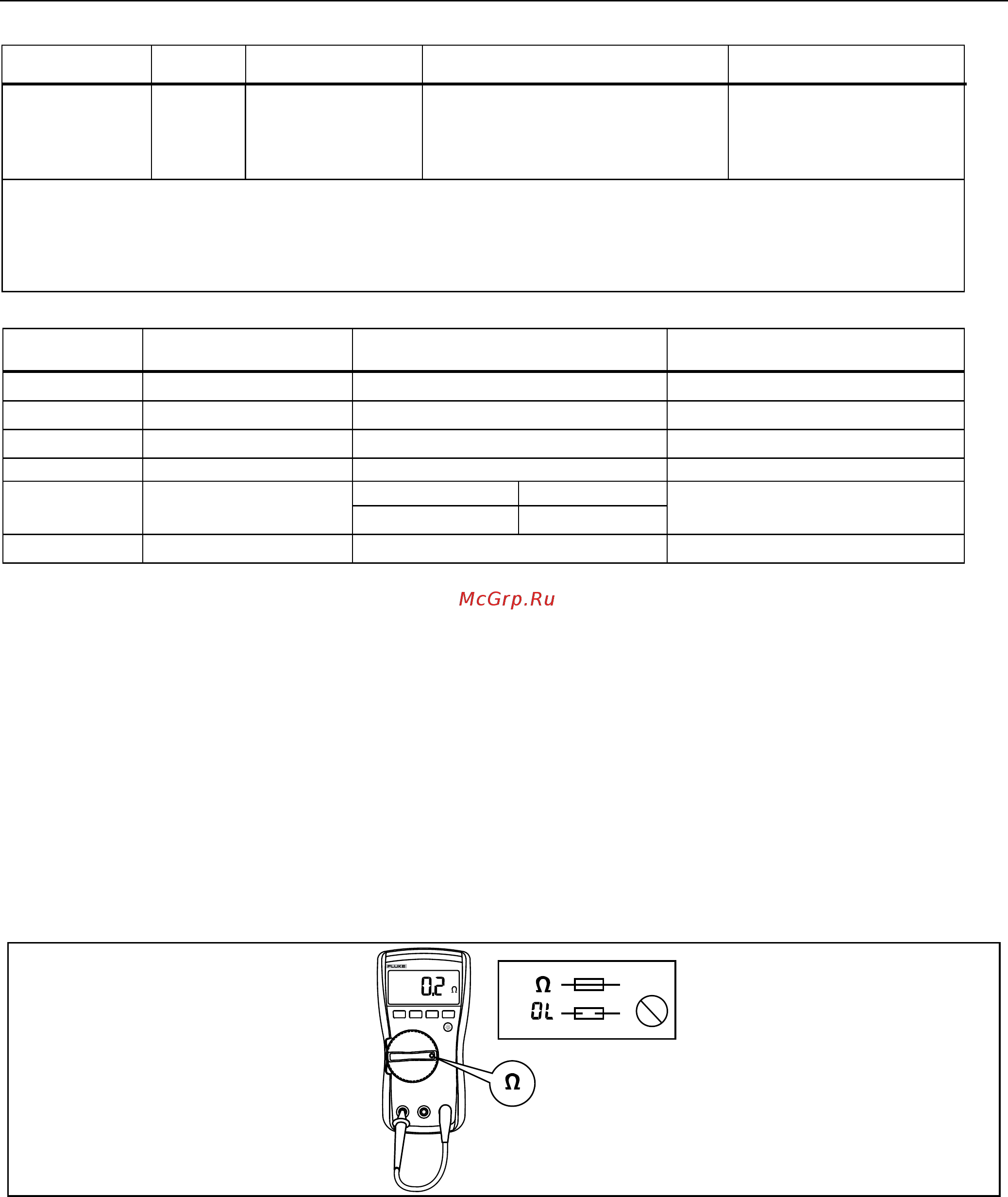

![Fluke 117 [5/20] Basic maintenance](/views2/1435957/page5/bg5.png)
Digital Multimeters
Basic Maintenance
5
Function Range Resolution
Accuracy
± ([% of Reading] + [Counts])
Model
Hz (V or A input)
[2]
99.99 Hz
999.9 Hz
9.999 kHz
50.00 kHz
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 % + 2 115, 117
Notes:
[1] All ac ranges except Auto-V LoZ are specified from 1 % to 100 % of range. Auto-V LoZ is specified from 0.0 V. Because inputs below 1 % of range are
not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are
shorted together. For volts, crest factor of ≤3 at 4000 counts, decreasing linearly to 1.5 at full scale. For amps, crest factor of ≤3. AC volts is ac-
coupled. Auto-V LoZ, AC mV, and AC amps are dc-coupled.
[2] AC Volts Hz is ac-coupled and specified from 5 Hz to 50 kHz. AC Amps Hz is dc-coupled and specified from 45 Hz to 5 kHz.
[3] >10 A unspecified.
Table 3. Input Characteristics
Function Input Impedance (Nominal)
Common Mode Rejection Ratio
(1 kΩ Unbalanced)
Normal Mode Rejection
Volts AC >5 MΩ <100 pF >60 dB at dc, 50 or 60 Hz
Volts DC >10 MΩ <100 pF >100 dB at dc, 50 or 60 Hz >60 dB at 50 or 60 Hz
Auto-V LoZ ~3 kΩ <500 pF >60 dB at dc, 50 or 60 Hz
Open Circuit Test Voltage Full Scale Voltage Short Circuit Current
To 6.0 MΩ 40 MΩ
Ohms <2.7 V dc
<0.7 V dc <0.9 V dc
<350 μA
Diode Test <2.7 V dc 2.000 V dc <1.2 mA
Basic Maintenance
Testing the Fuse (115 & 117 only)
To test the fuse:
1. Set the rotary switch to
Ω.
2. Plug a test lead into the v jack and touch the probe to the 10A jack, as shown in Figure 1.
If the display shows a resistance value in the range of that shown in Figure 1, the fuse is good.
If the display reads 0L, replace the fuse and test again.
If the display shows any other value, have the Meter serviced. See “Contact Information” earlier in this document.
HOLD MIN MA X RANGE
10 A
FUSED
COM
V
A
Lo / H
OFF
Hz
Hz
AUTO-V
LoZ
Volt
Alert
A
A
V
V
mV
VoltA le rt
TRUE RMS MULTIMETER
117
<.5
OK
OK
erc010f.emf
Figure 1. Fuse Testing
