ProcessMeter™
Performance Verification
25
Frequency Measurement Test
1. Put the calibrator in Standby (STBY) mode.
2. Put the UUT rotary switch in the (ac volts) position.
3. Press h to toggle to the frequency measurement function.
4. Connect the calibrator to the COM and
terminals on the UUT as shown in
Figure 10.
5. Apply the values from the calibrator shown in Table 12 and compare the readings on
the UUT to the acceptable readings shown. Press R to select the voltage range.
Table 12. Frequency Measurement Test
UUT
Calibrator Voltage
and Frequency
Minimum Acceptable
Reading
Maximum
Acceptable Reading
Range Voltage
199.99 Hz 400 mV 150 mV @ 100 Hz 99.98 Hz 100.02 Hz
1999.9 Hz 4 V 1 V @ 1000 Hz 999.8 Hz 1000.2 Hz
19.999 kHz 40 V 4 V @ 10 kHz 9.998 kHz 10.002 kHz
UUT
POWER
I
O
0•
123
456
7 8 9
ENTER
M
k
m
V Hz
FIELD
EDIT
/
+
F
OPR EARTH EXGRD SCOPE MENU
PREV
SHIFT
RESET
CE
SETUP
REF
NEW
TC
MEAS
¡F
µ
n
p
W
dBm sec
¡CA
MULT
x
DIV
÷
MODES
MORE
STBY
HI
LO
TRIG
GUARD
TC
20A
NORMAL AUX
5520A CALIBRATOR
SCOPE
OUT
V, , ,
RTD
A, -SENSE,
AUX V
20V PK MAX
20V PK MAX
5522A
adm010F.EPS

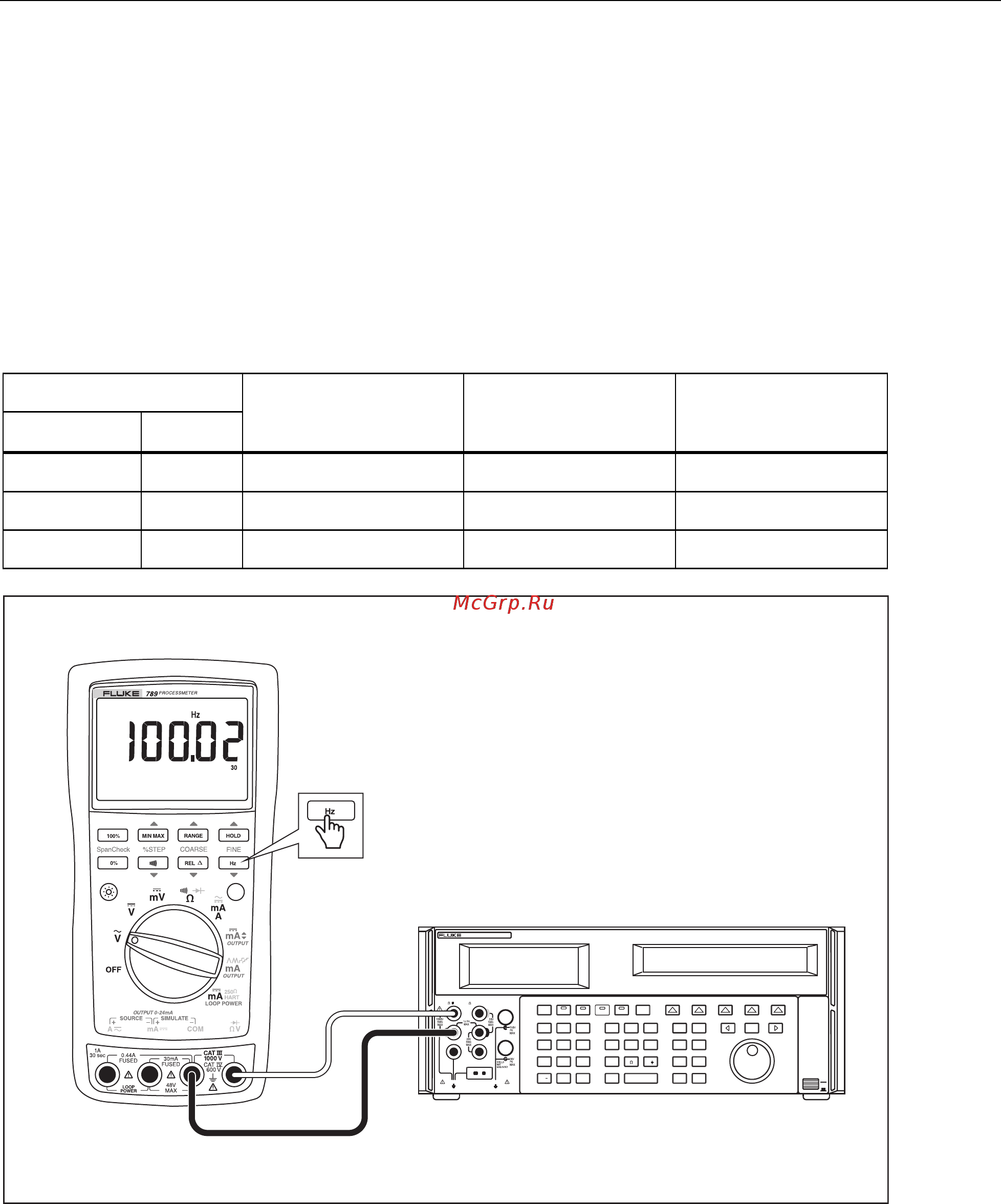

Figure 10. Frequency Measurement Test Connections
