Fluke 719 [18/32] Calibrating at the bench with a pressure comparator

Suggested test tools

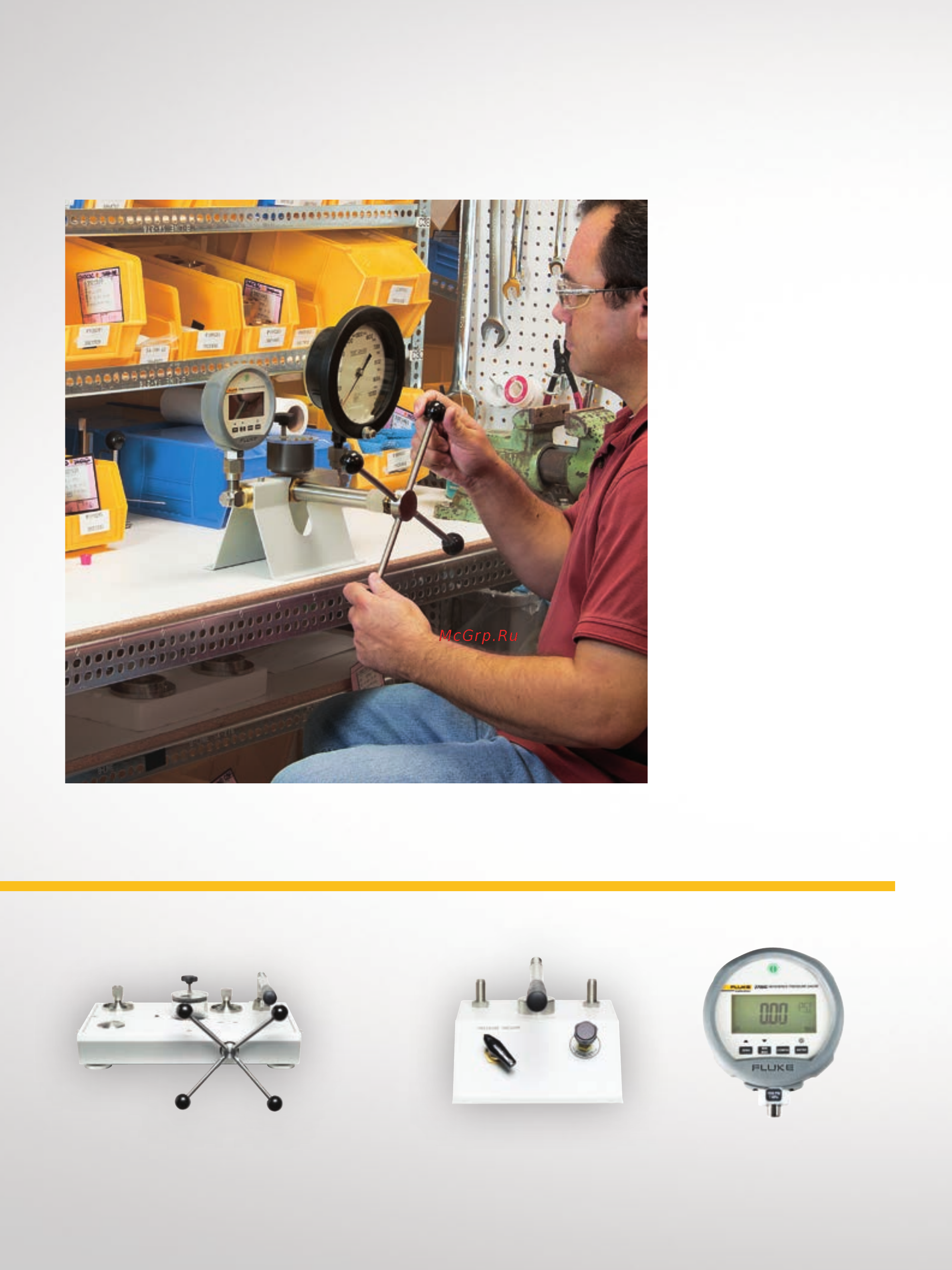

Calibrating at the bench

with a pressure comparator

A pressure comparator is a

convenient instrument for bench

pressure calibration. Bench

calibrations are performed to

maintain reference conditions

and to obtain the lowest possible

uncertainties. The bench is also

a convenient place to inspect,

adjust, and repair the devices

under test.

P5514, or

P5515

Hydraulic Pressure

Comparator

See pg 30

P5510, or P5513

Gas Pressure Comparator

See pg 30

2700G Series

Reference Pressure Gauges

See pg 26

Using liquid: Using gas:
