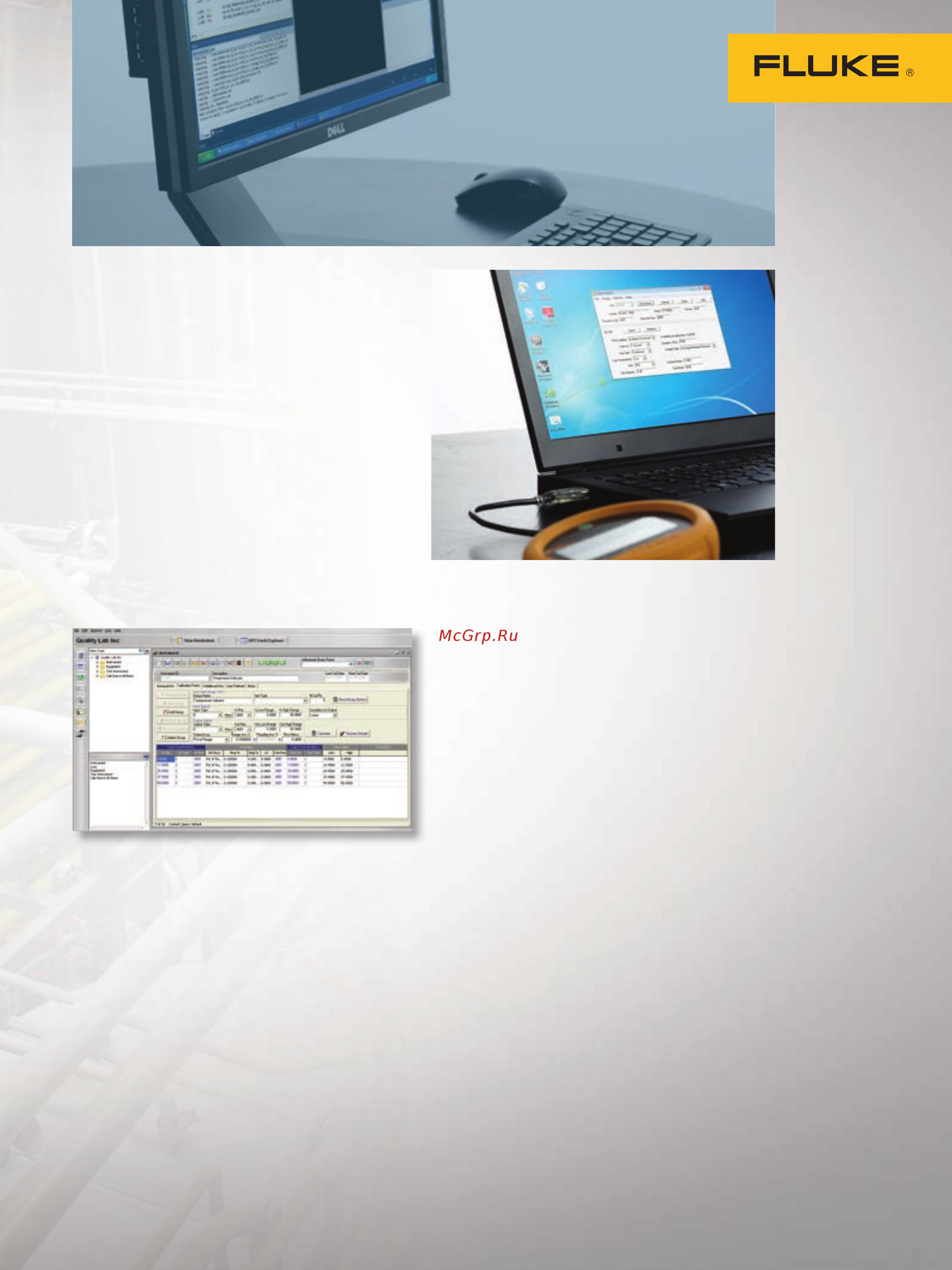

![Fluke 719 [32/32] Software](/views2/1436075/page32/bg20.png)
32
SOFTWARE
PressCal Software
PressCal is a menu-driven software program for
pressure calculation and certificate generation
using a deadweight tester as the pressure source.
This software has been developed as a flexible
working tool to make calibrations quicker, easier
and more accurate. PressCal allows users to apply
all necessary corrections (local gravity, pressure
head, temperature, etc.) to enhance the perfor-
mance of the deadweight tester. Calibration details
are then stored and/or automatically inserted into
a calibration certificate.
• Menu-driven, easy-to-use software
• Maintain multiple deadweight tester files
• Pressure equivalent calculations with
all corrections applied
• Automatic generation of calibration certificates
• Pre-loaded calibration data
• Twelve pressure units
DPC/TRACK2™ Software
DPC/TRACK2 is a specialized calibration manage-
ment database that can help you manage your
instrumentation and address the documentation
requirements of quality programs and regulations.
With DPC/TRACK2 and a 754 DPC you can:
• Manage your inventory of tags and instruments,
schedule for calibration
• Create tag specific procedures with instructions
and comment
• Load those procedures to your DPC, and later
upload the results to your PC
• Select and execute automated As-Found/As-Left
procedures in the field, automatically capturing
results
• Examine the calibration histories of your tags
and instruments and print reports
• Import and export instrument data and
procedures as ASCII text
• Import legacy DPC/TRACK database
700G/Track
Easy-to-use software for managing instruments
and calibration data.
• Enables data log configuration download and
logged data upload with the 700G Series gauges
• Configure logging event reading rate, duration
and measurement units
• Upload measurements logged remotely and dis-
play or export measurements
www.fluke.com/700Gsoftware
For more information call:
In the U.S.A. (800) 443-5853 or Fax (425) 446-5116
In Europe/M-East/Africa +31 (0)40 267 5100 or Fax +31 (0)40 267 5222
In Canada (800)-36-FLUKE or Fax (905) 890-6866
From other countries +1 (425) 446-5500 or Fax +1 (425) 446-5116
Web access: http://www.fluke.com
©2015 Fluke Corporation. Specifications subject to change without notice.
Printed in U.S.A. 4/2015 6003978a
Modification of this document is not permitted without written permission from
Fluke Corporation.
Fluke Corporation
PO Box 9090,
Everett, WA 98206 U.S.A.
Fluke. Keeping your world up and running.
®
