DGS-3224TGR Gigabit Ethernet Switch User’s Guide

108

TACACS Server Settings

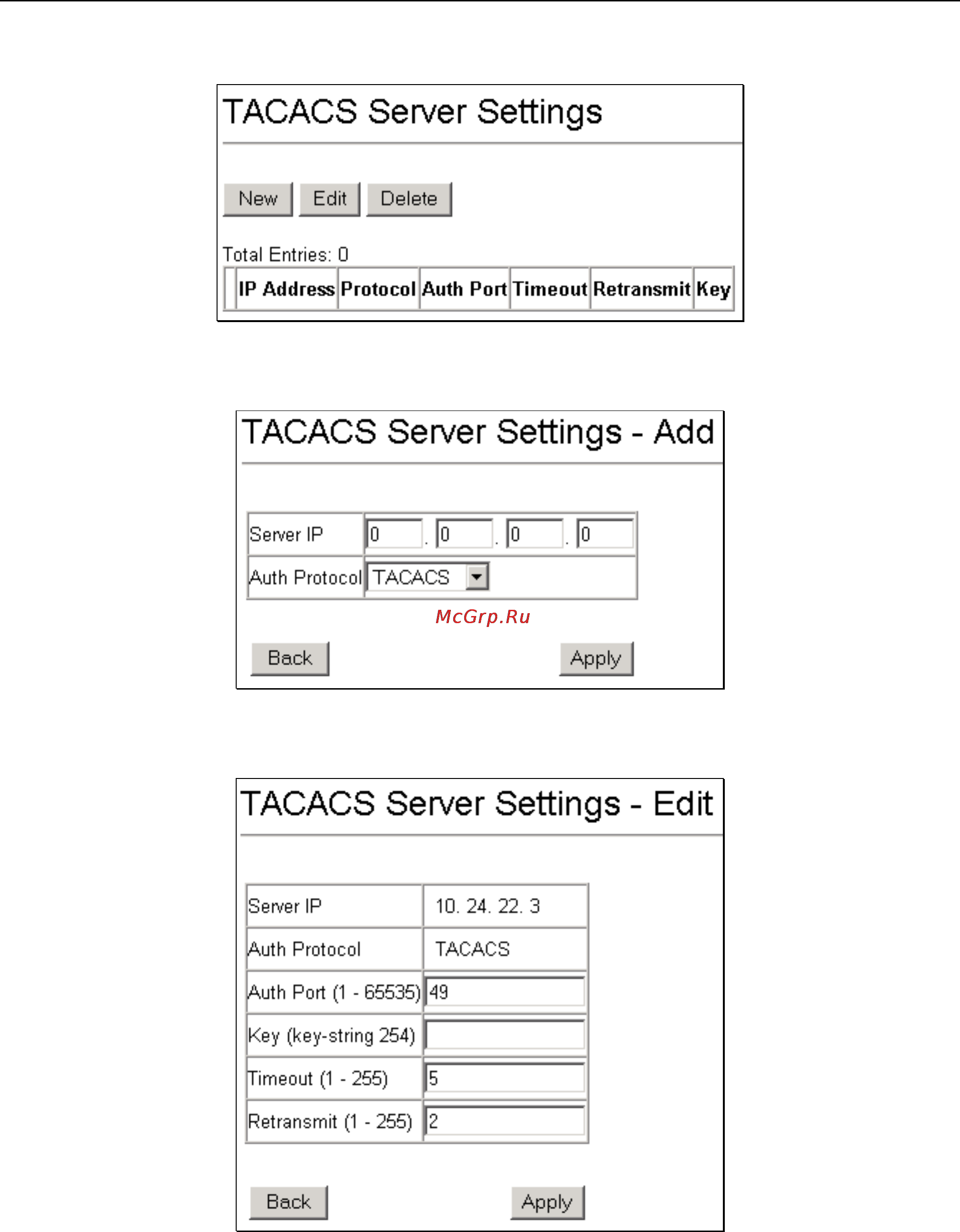

Figure 6- 105. TACACS Server Settings window

To add an entry to this table, click New. To modify an entry, select it and then click Edit.

Figure 6- 106. TACACS Server Settings – Add window

To modify an entry on the TACACS Server Settings window, select it and then click Edit.

Figure 6- 107. TACACS Server Settings – Edit window
