DGS-3224TGR Gigabit Ethernet Switch User’s Guide
134
Group

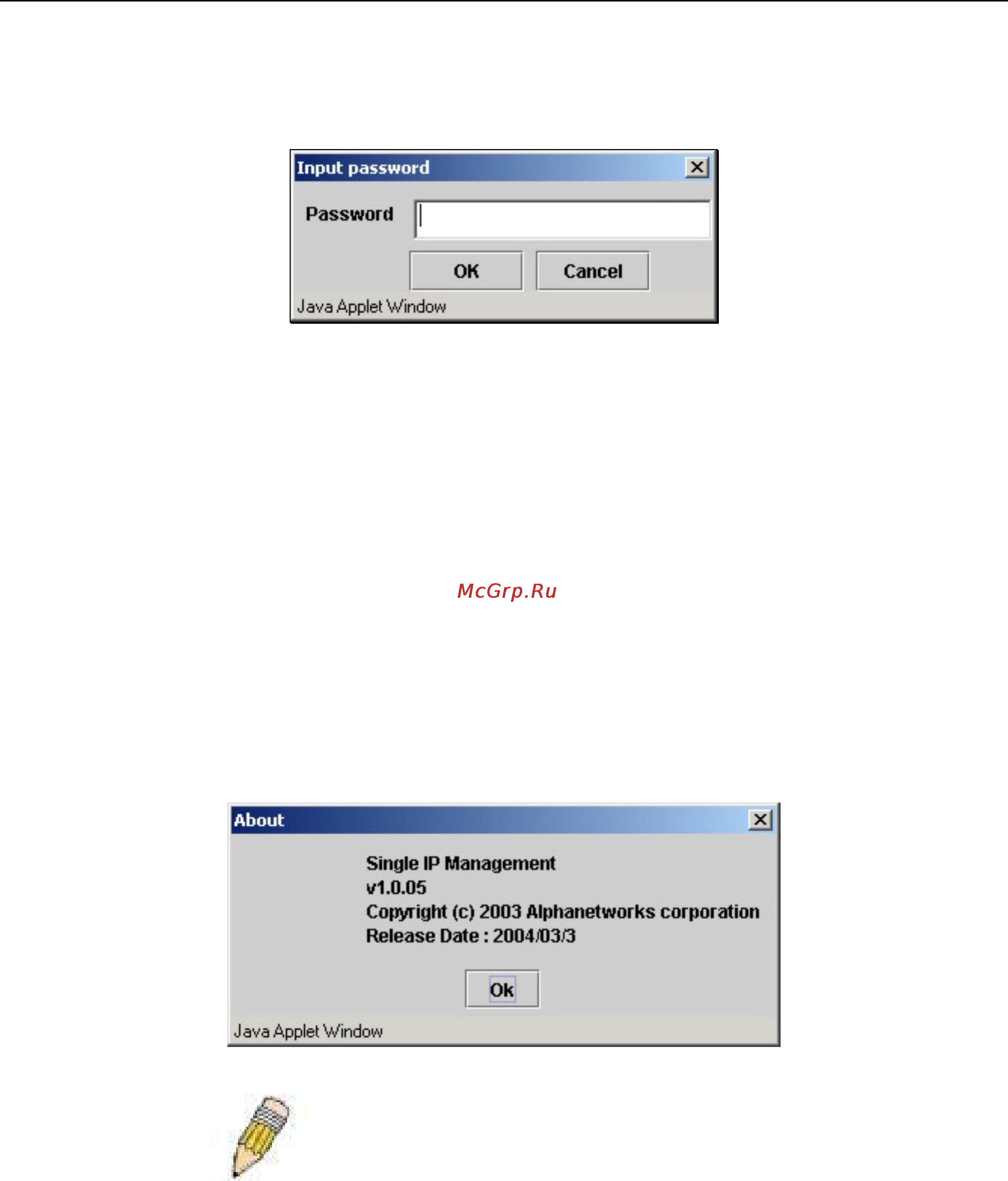

Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
Figure 7- 17. Input password window
Remove from Group - remove an MS from the group.
Device
Configure - will open the web manager for the specific device.
View
Refresh - update the views with the latest status.
Topology - display the Topology view.
Help
About - Will display the SIM information, including the current SIM version.
NOTE: Upon this firmware release, some functions of the SIM can only be
configured through the Command Line Interface. See the DGS-3224TGR
Command Line Interface Reference Manual for more information on
SIM and its configurations.
