Setting the Default Values

The default values have been defined by SI Pressure Instruments. However, depending on

your environment and your testing specifications, these may need to be modified.

Click on Setup > Default Settings within the “Menu Bar” to open the “Default

Values” window as shown in Figure 2-5.

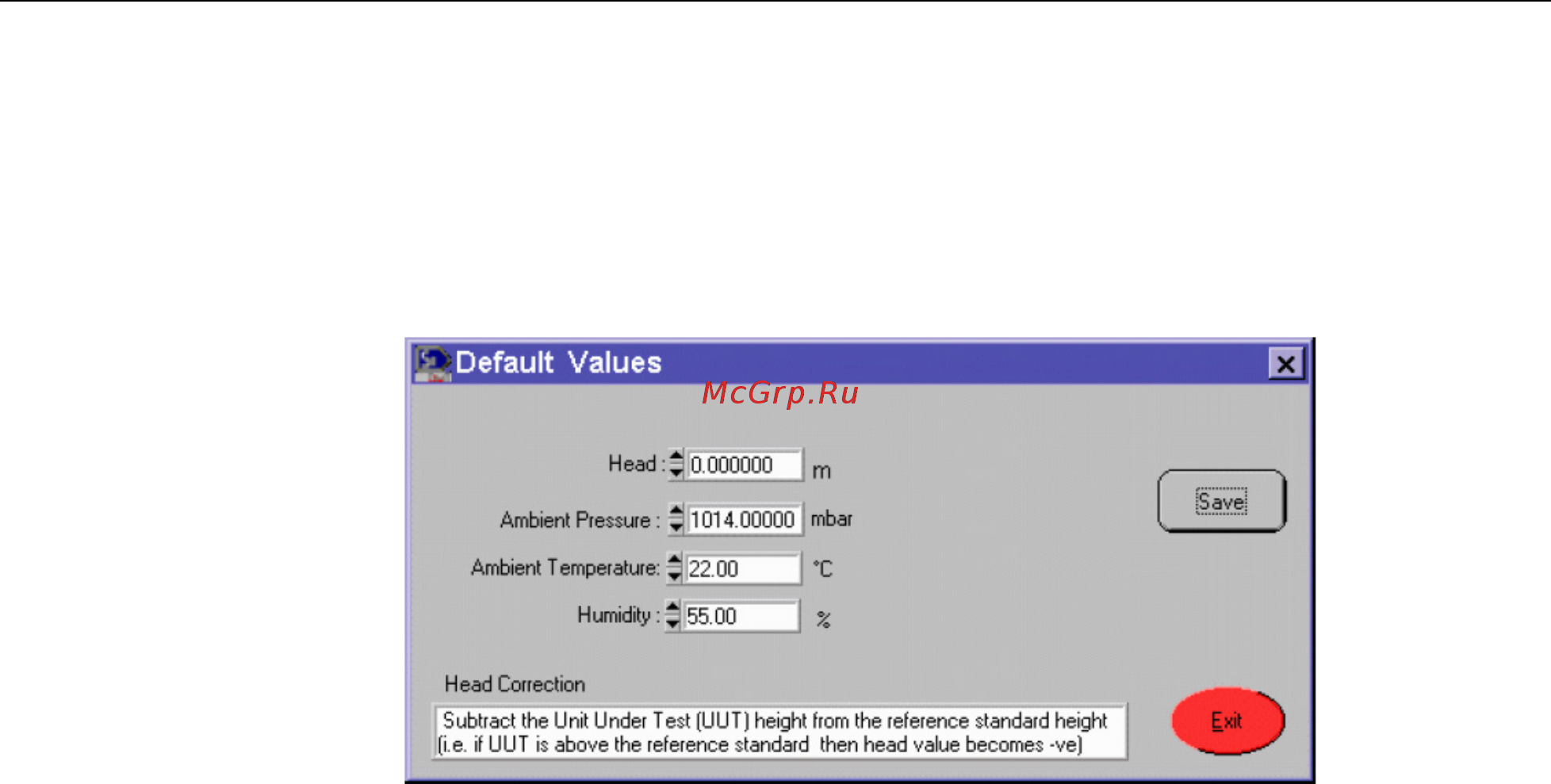

Figure 2-5. Default Values Window

1. Enter the following:

Note

Either use the arrows (

) to finely adjust the default values, or

alternatively enter the values in directly.

Head

Subtract the Unit Under Test (UUT) height from the

reference standard height (i.e. if the UUT is above the

reference level then the Head value becomes -ve).

Default is zero.

Ambient Pressure

Enter the ambient pressure of the calibration test

environment. This can be obtained by using a suitable

manometer (such as SI Pressure’s PC6).

Ambient

Temperature

Enter the ambient temperature of the calibration test

environment. The default calibration temperature is 20 ºC.

Humidity

Enter the current humidity. This can be obtained by using

a suitable hygrometer.

2. Click on Save to store the default value changes or click on Exit to close the

window without saving the changes.
