Producing Certificates
Managing New Certificates 6
6-5
Viewing the New Certificate
Click on View to see an example of how the certificate will look when printed. If a front
page has been tagged to the certificate, then that page is also shown. See Figure 6-3 for
an example of a “Certificate of Calibration”.

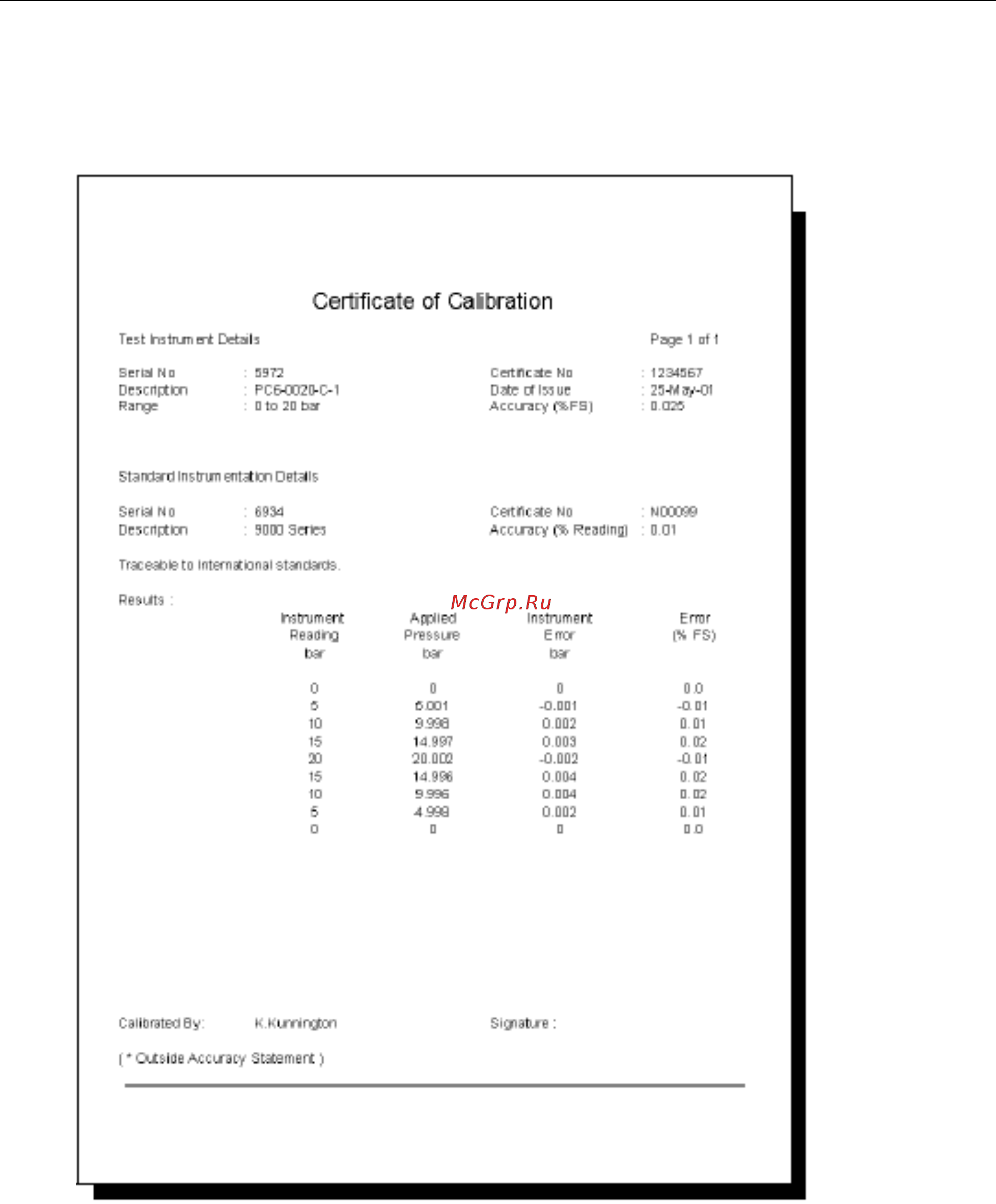

Figure 6-3. Certificate of Calibration
Click on Exit to close the window.
Printing the New Certificate
Click on Print to print out the certificate.
Click on Exit to close the “Certificate of Calibration” window.
