Fluke P3200 [25/46] Setting up customer details

3-1

Chapter 3

Setting Up Customer Details

Introduction

PressCal allows the pre-defining of customer details that can easily be inserted within

calibration certificates.

Managing Customer Details

Click on “Customer!” within the “Menu Bar” to open the “Customer Details” window as

shown in Figure 3-1.

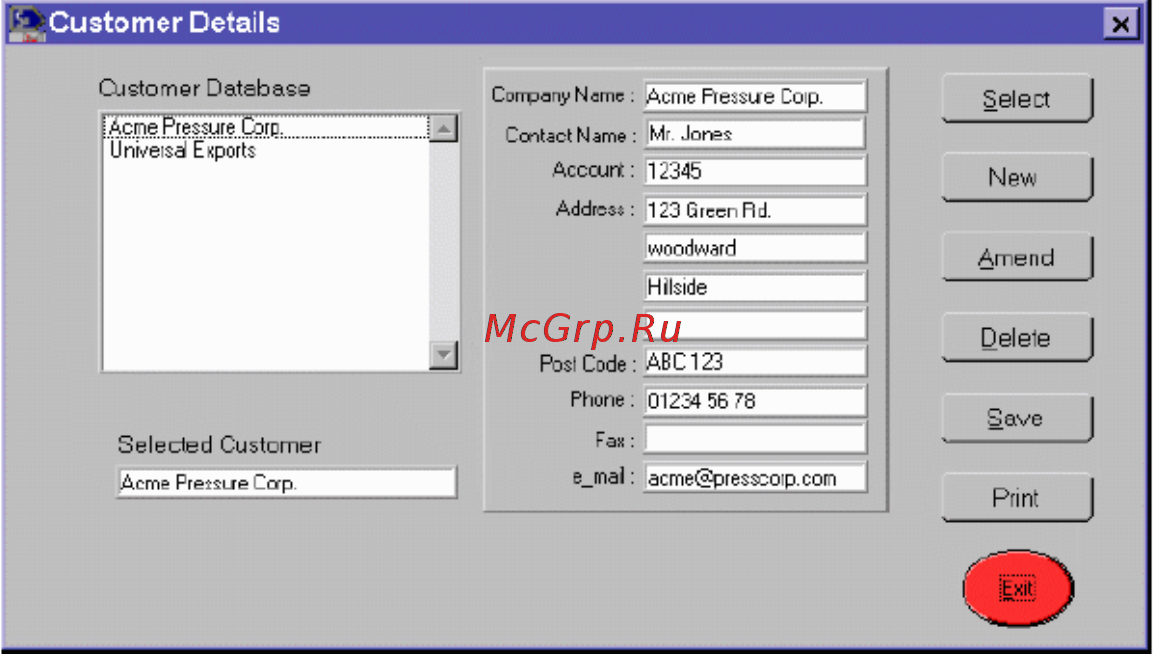

Figure 3-1. Customer Details Window

Creating New Customer Details

Click on New. The current customer detail’s fields are cleared.

Note

You can either enter information directly into the blank fields, or you can

select an existing customer from the Customer Database and use their

details as a template.
