10
DCS-6620G User’s Manual
D-Link Systems, Inc.
Installation Wizard
Installation Wizard
After you have successfully completed the hardware installation of the DCS-6620G 802.11g
PTZ Internet Camera, it is necessary to install software to configure and operate the camera.
The first step is to install the Installation Wizard program from the CD. Installation Wizard will
allow you to configure the 802.11g PTZ Internet Camera to your network.
After the Installation Wizard software program is completed, you will have an operating and
controllable 802.11g PTZ Internet Camera. From your Internet Explorer Web browser you will
be able to access the video and sound from the 802.11g PTZ Internet Camera. The camera
has a built-in Web server. This Web server will allow the camera to access the Internet without
being attached to a computer and permits users to view the video and audio remotely.
However, it is necessary to install the IP surveillance software from the enclosed CD to create
a truly powerful surveillance system. The following section will show in detail the launching of
the Installation Wizard and installation of the IP surveillance software.

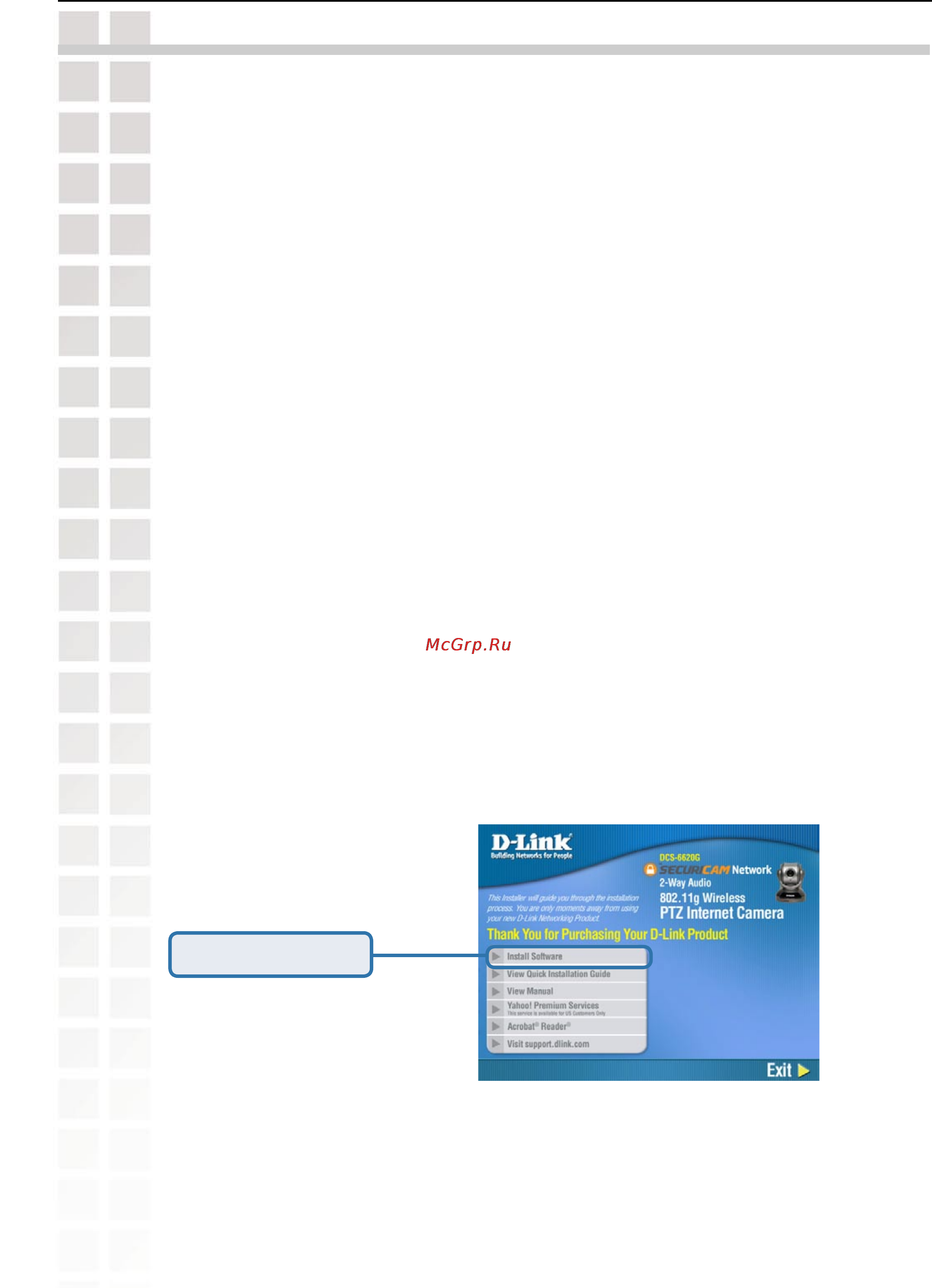

Launching the Installation Wizard program
Insert the CD that is included with the DCS-6620G 802.11g PTZ Internet Camera into your
computer’s CD-ROM. The DCS-6620G installation menu will start up automatically from the
CD. If the CD does not start up automatically, (this function may be disabled in the Windows
operating system), access the CD from Windows My Computer and click on the autorun.exe
program to access the installation menu shown below:
Click Install Software
