19
DCS-6620G User’s Manual
D-Link Systems, Inc.
Enabling UPnP
TM
for Windows
®
XP

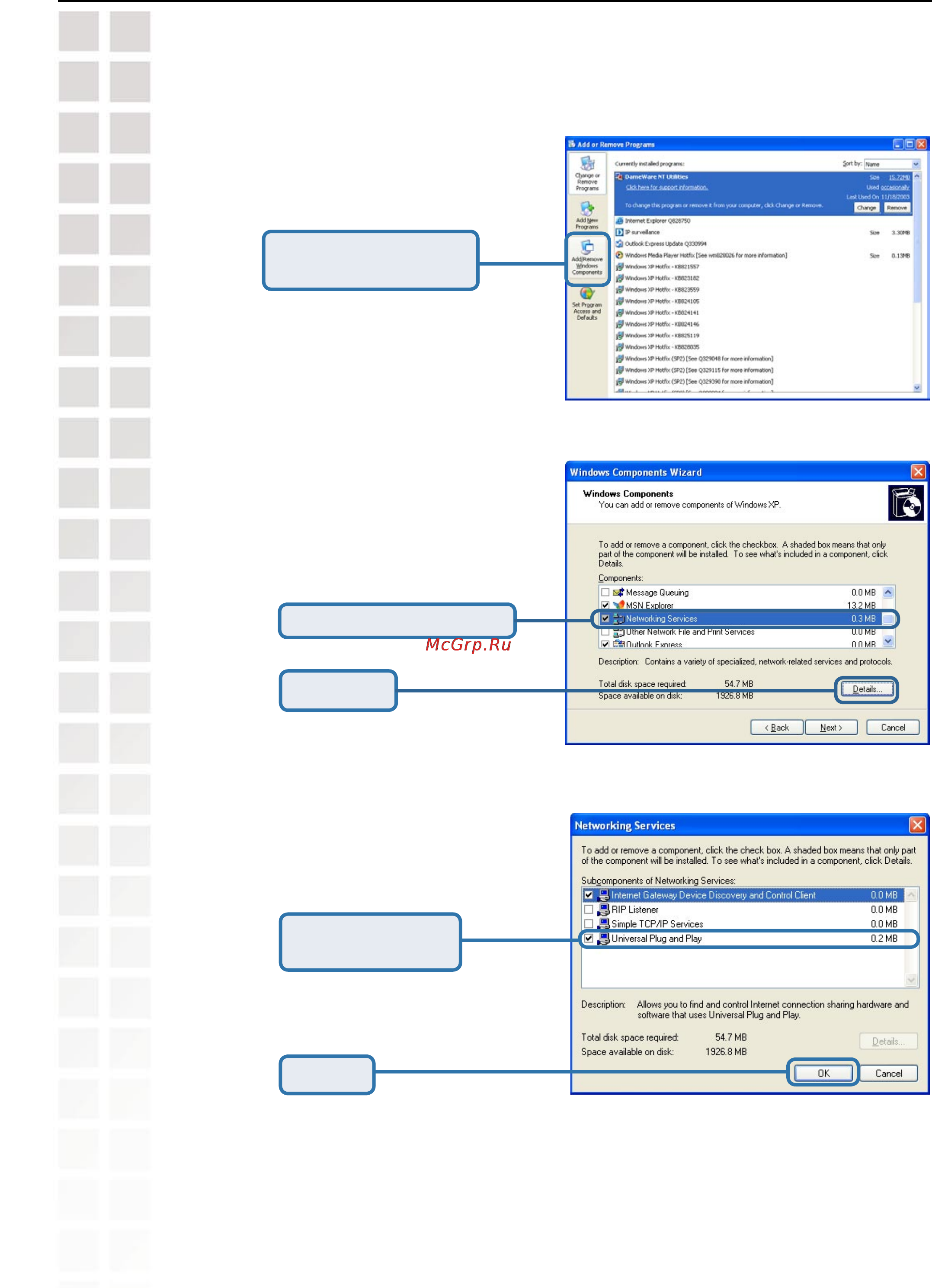

Click Add/Remove Windows
Components
The following screen will appear:
Select Networking Services
Click Details
Select Universal Plug
and Play
Click Ok
