D-Link DCS-6620G [93/145] Monitor program continued
![D-Link DCS-920 [93/145] Monitor program continued](/views2/1043932/page93/bg5d.png)
93
DCS-6620G User’s Manual
D-Link Systems, Inc.
Using IP surveillance Software

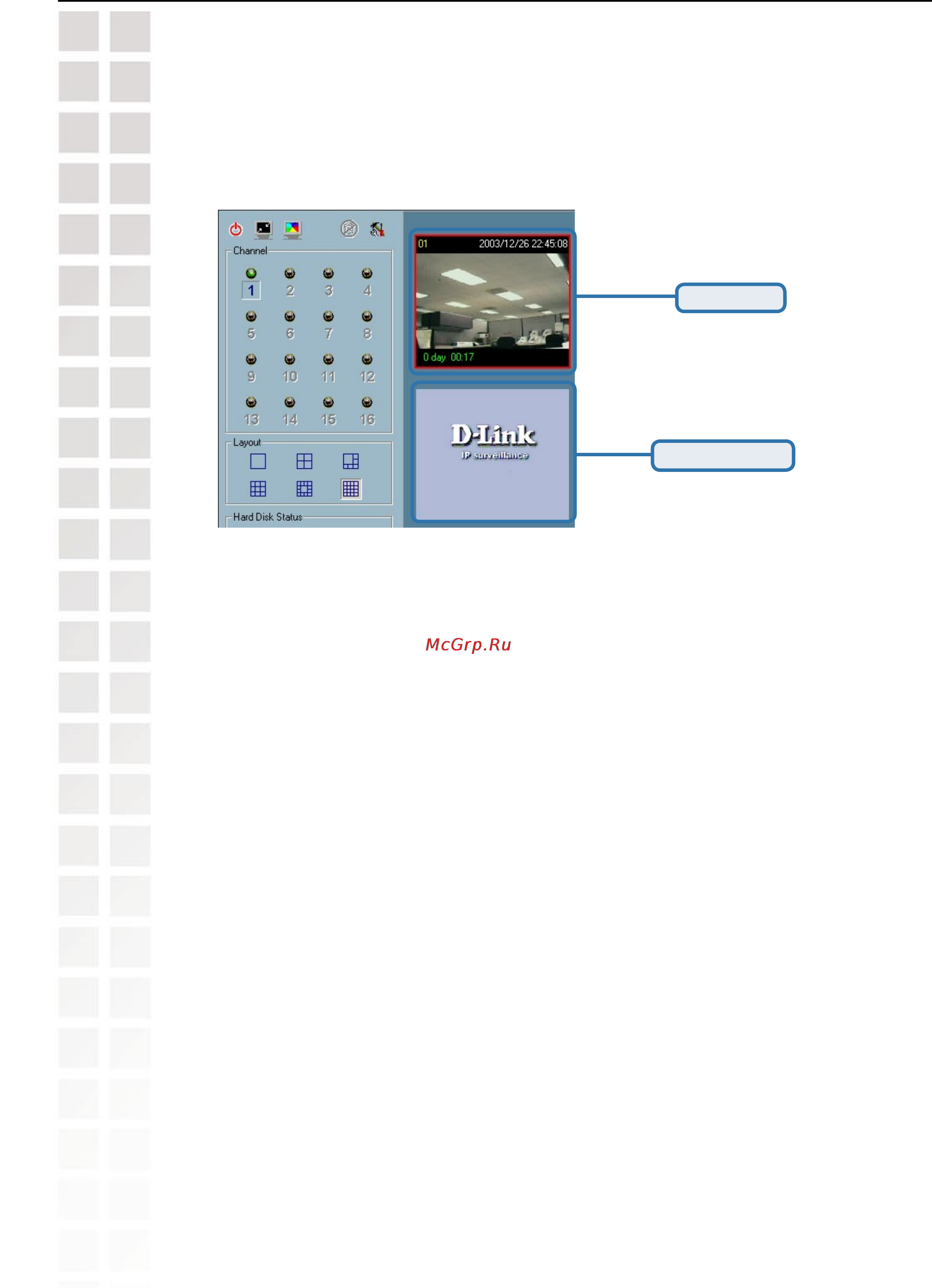

Monitor Program (continued)
Video shown
Empty video box
Removing video from a display window
Step 1: Move the mouse cursor to the display window that contains the video channel you
wish to remove.
Step 2: Note that the cursor will change to the hand-shape when it has been moved onto the
displaying frame. After that, press the left mouse button and hold it.
Step 3: Move the cursor, while still holding the left mouse button, to the trashcan in the common
area of the monitor program.
Step 4: When the cursor shape changes to an arrow-shape over the trashcan, release the left
mouse button. The video in the corresponding display window will disappear. All operations
above are shown in the figure on the following page.
