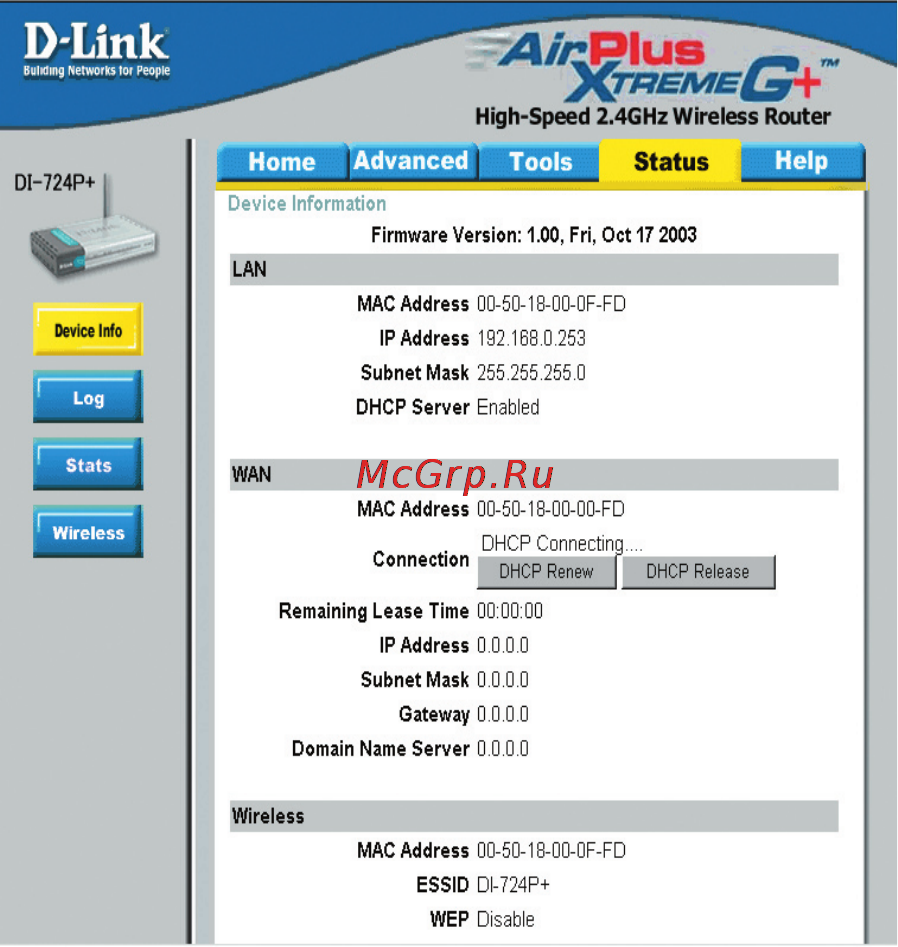

This window will show the DI-724P+’s working status:

IP Address: WAN/Public IP Address

Subnet Mask: WAN/Public Subnet Mask

Gateway: WAN/Public Gateway IP Address

Domain Name Server: WAN/Public DNS IP Address

WAN Status: WAN Connection Status

This page displays the current information for the DI-724P+. It will display the LAN,

WAN and MAC address information.

If your WAN connection is set up for a Dynamic IP address then a Release button and

a Renew button will be displayed. Use Release to disconnect from your ISP and use

Renew to connect to your ISP.

If your WAN connection is set up for PPPoE, a Connect button and a Disconnect button

will be displayed. Use Disconnect to drop the PPPoE connection and use Connect to

establish the PPPoE connection.

Using the Conguration Menu (continued)

Status > Device Info

Wireless

IP Address: LAN/Private IP Address of the DI-724P+

Subnet Mask: LAN/Private Subnet Mask of the DI-724P+

WAN

LAN

MAC Address: Displays the MAC address

SSID: Displays the current SSID

Channel: Displays the current channel

WEP: indicates whether WEP is enabled or disabled
