TL-WA730RE 150Mbps Wireless Range Extender User Guide

Chapter 3 Quick Installation Guide

This chapter will guide you to configure your PC to communicate with the AP and to configure and

manage the TL-WA730RE 150Mbps Wireless Range Extender easily with a Web-based utility.

3.1 Configure the PC

The wireless adapter-equipped computers in your network must be in the same IP Address range

without overlap with each other. Manually configure the IP address as 192.168.1.* (* is any

integer between 1 to 253), and the Subnet mask as 255.255.255.0 for your PC by following the

instructions below.

Connect the local PCs to the LAN ports on the AP and configure the IP address manually for your

PCs.

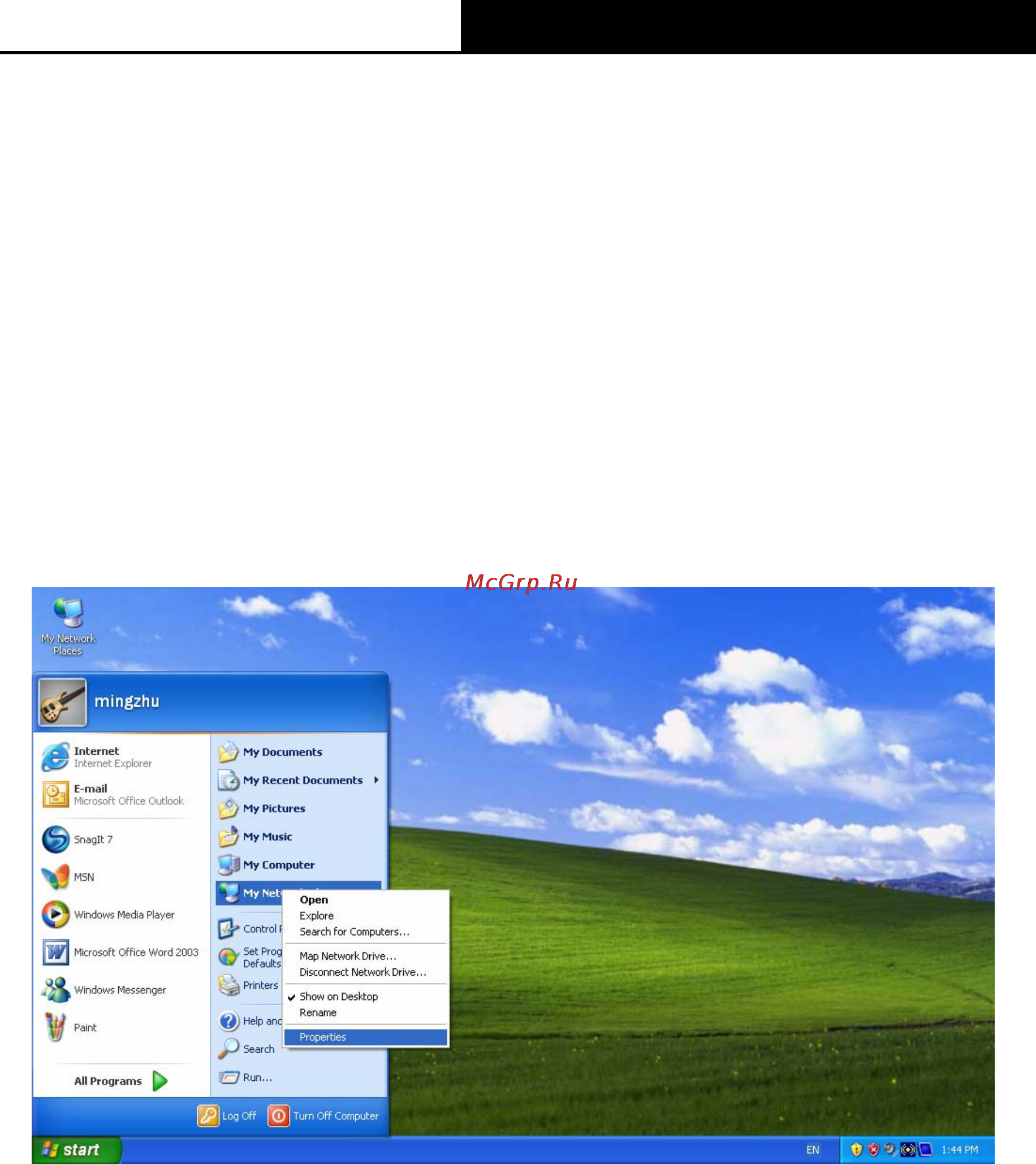

1. Click Start (in the lower left corner of the screen), right-click My Network Connections and

choose Properties.

Figure 3-1

2. On the My Network Connections window shown as Figure 3-2 below, right-click LAN (Local

Area Connection) and choose Properties.
