Tp-Link TL-WA730RE [34/64] Wireless security
![Tp-Link TL-WA730RE [34/64] Wireless security](/views2/1004433/page34/bg22.png)
TL-WA730RE 150Mbps Wireless Range Extender User Guide
¾ Region - Specifies the region where the wireless function of the AP can be used. Select your
region from the drop-down list. If your country or region is not listed, please contact your local
government agency for assistance.
) Note:

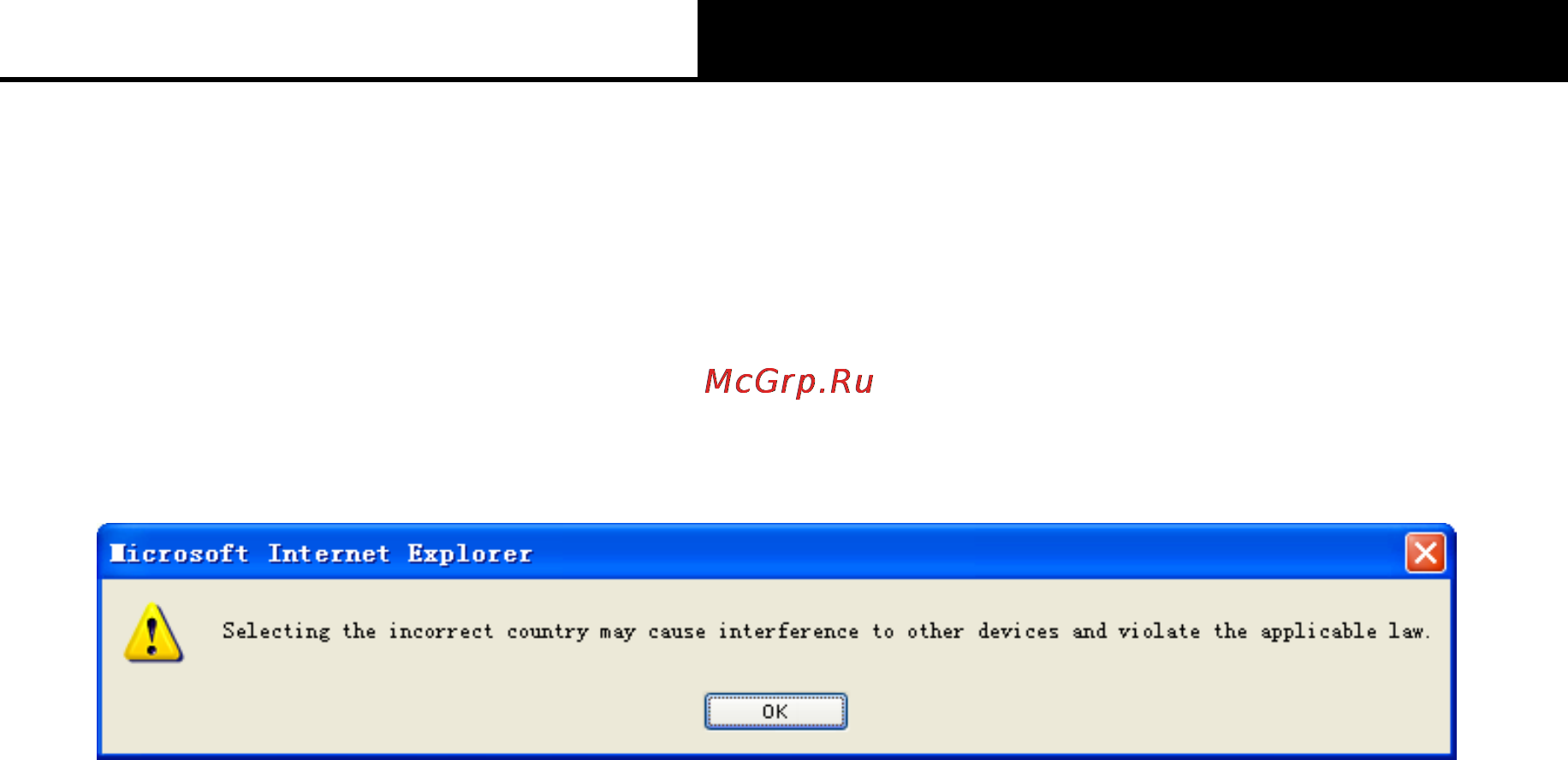

The default region is United States. When you select your local region from the pull-down list,
the dialog shown in Figure appears below. Click OK.
) Note:
Restricted by local law regulations, version for North America does not have region selection
option.
¾ Channel - Determines the operating frequency to be used. It is not necessary to change the
wireless channel unless you notice interference problems with another nearby access point.
¾ Mode - Select the desired wireless mode. The options are:
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the
device.
¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field.
¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
¾ Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to
broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local
area for wireless networks to associate with, they will detect the SSID broadcast by the
device.
)
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
4.5.2 Wireless Security
Selecting Wireless > Wireless Security will enable you to configure wireless security for your
wireless network to protect your data from intruders. The AP provides three security types: WEP,
WPA/WPA2 and WPA-PSK/WPA2-PSK. Wireless security can be set on the following screen
27
