TL-WA730RE 150Mbps Wireless Range Extender User Guide

• Group Key Update Period - Specify the group key update interval in seconds. The value

can be either 0 or at least 30. Enter 0 to disable the update.

Be sure to click the Save button to save your settings on this page.

)

Note:

You will be reminded to reboot the device after clicking the Save button.

4.5.3 Wireless MAC Filtering

Selecting Wireless > Wireless MAC Filtering will allow you to set up some filtering rules to

control wireless stations accessing the device, which depend on the station’s MAC address on the

following screen as shown Figure 4-12. This function is not available when the operation is set to

Client. As the configuration is the same in each operation mode, here we just take the Access

Point for example.

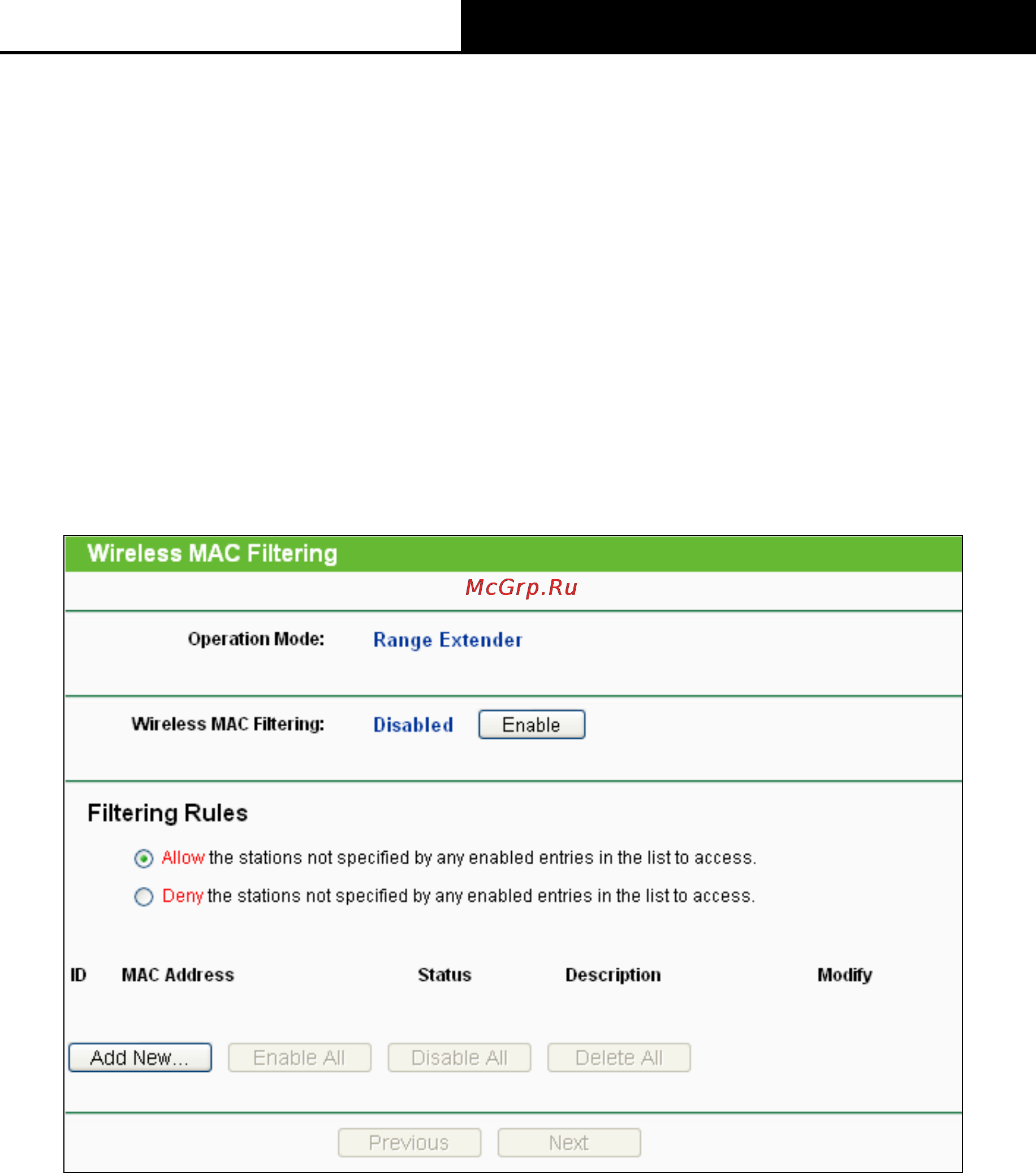

Figure 4-12 Wireless MAC address Filtering

The Wireless MAC Address Filtering feature allows you to control wireless stations accessing the

device, which depend on the station's MAC addresses.

¾ Operation Mode - Shows the current operation mode.

¾ Wireless MAC Filtering - Click the Enable button to enable the Wireless MAC Address

Filtering. The default setting is disabled.

To Add a Wireless MAC Address filtering entry, click the Add New… button. The “Add or Modify

Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-13.
