TL-WA730RE 150Mbps Wireless Range Extender User Guide
) Note:
Restricted by local law regulations, version for North America does not have region selection
option.
¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field.
¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Click the Search button to detect the MAC address of the desired AP you want to connect to.
)
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
2) Access Point: This mode allows wireless stations to access this device.

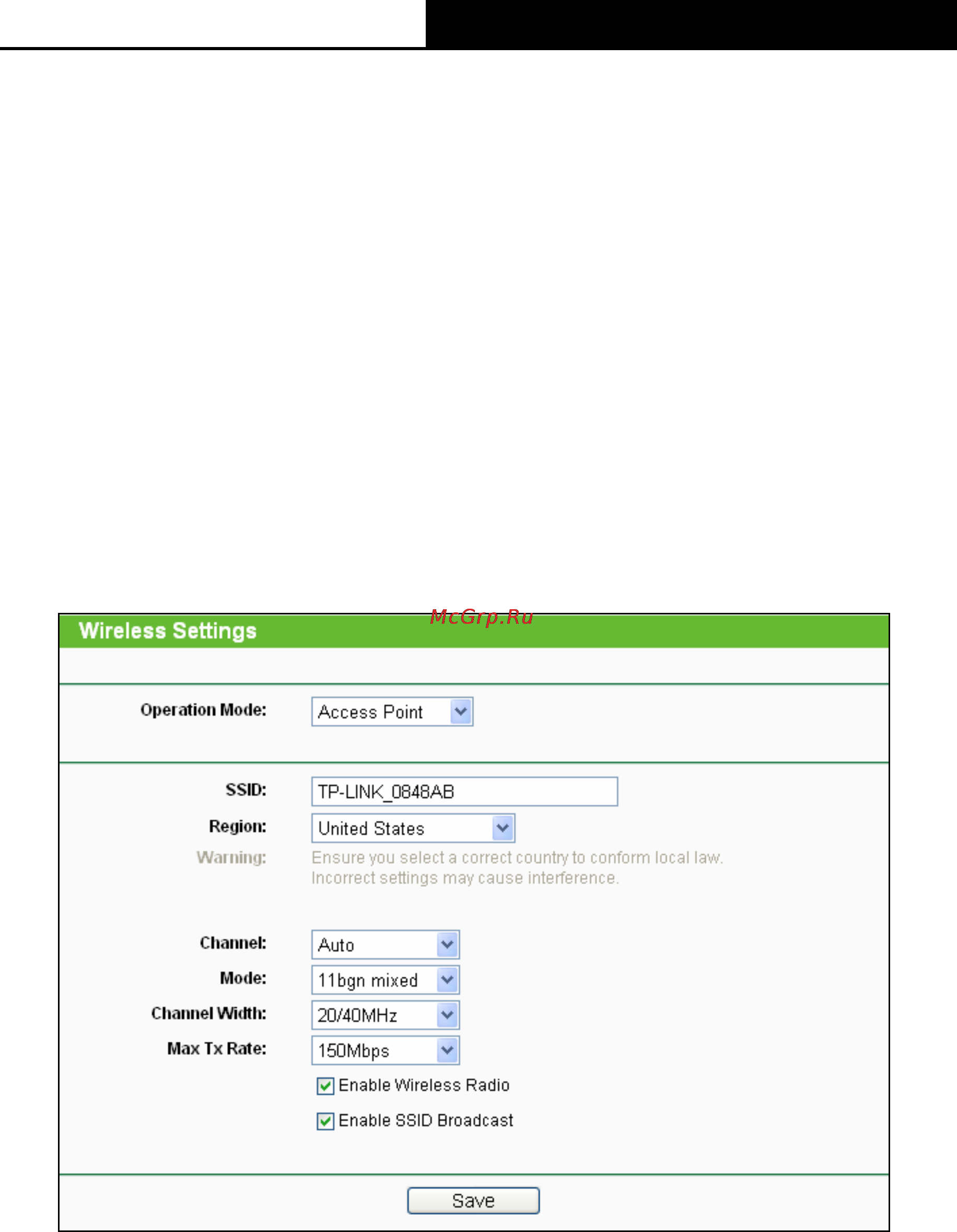

Figure 4-9 Wireless Settings in Access Point mode
¾ Operation Mode - Two Operation Modes are supported, including: Access Point and Range
Extender.
¾ SSID (Set Service Identifier) - Identifies your wireless network name. Create a name up to 32
characters and make sure all wireless points in the wireless network with the same SSID. The
default SSID is TP-LINK_XXXXXX (XXXXXX indicates the last unique six characters of each
device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as
test.
26
