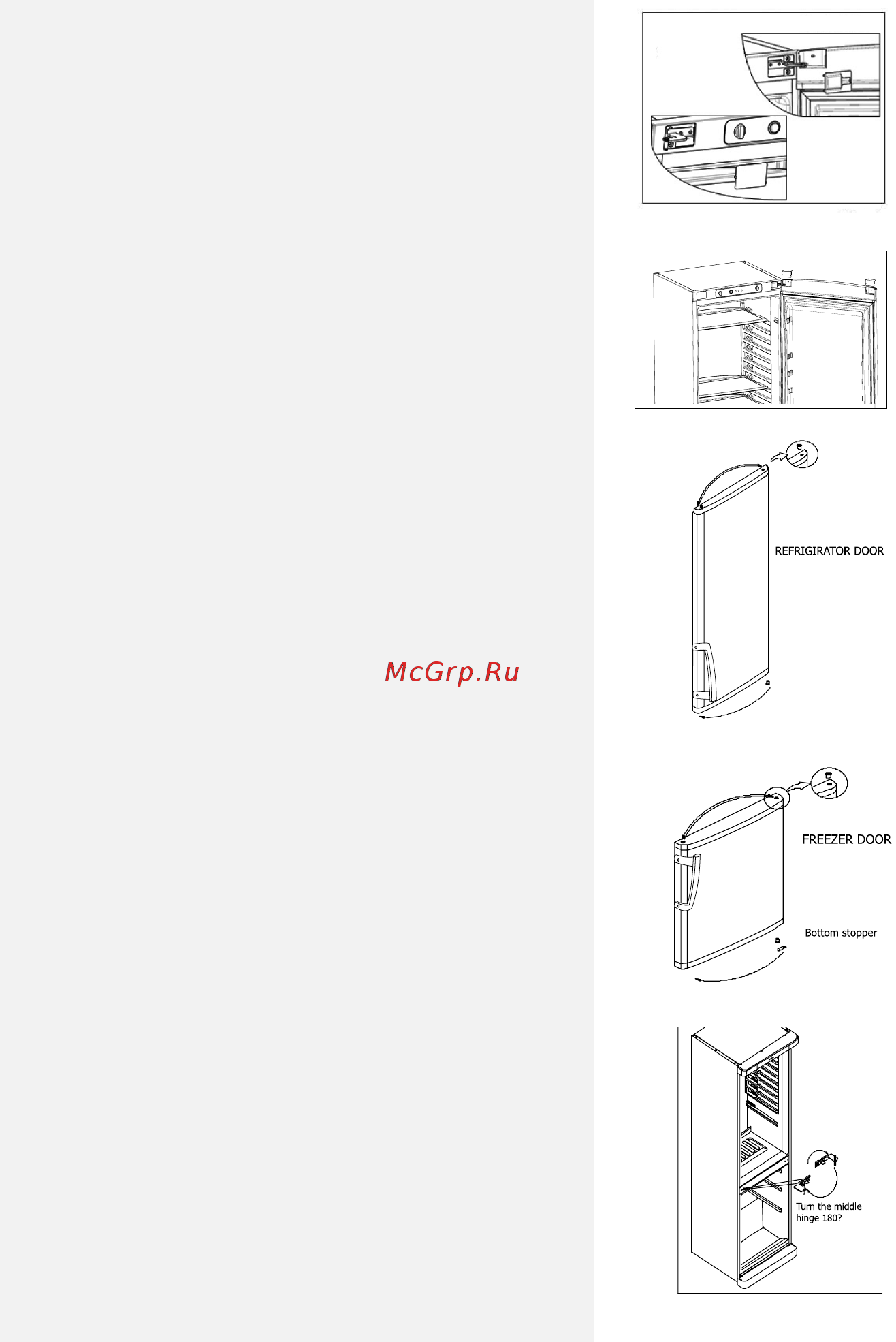

6. Unscrew the pin of the right top hinge. (Fig. 6/Detail A)

Screw in the pin of the top left hand hinge. (Fig. 6/Detail B)

7. Remove the door hinge covers and bend one to the hinge side

and flatten the other one.

8. Replace the top bushing and top bushing cap. (Fig. 8)

You can use the bushing cap supplied in the user manual bag.

Move the bottom bushing to the left hand side. (Fig. 8)

9. Remove the top bushing and insert it into the left hole. (Fig. 9)

Remove the bottom bushing and the bottom stopper and fit

them in the left hand hole. (Fig. 9)

10.Turn the middle hinge through180°. Fit the freezer and

refrigerator doors together with the middle hinge (Reverse

operation of item 2). Fix the middle hinge by tightening the

screws. Finally, fit the plinth. (Fig. 10)

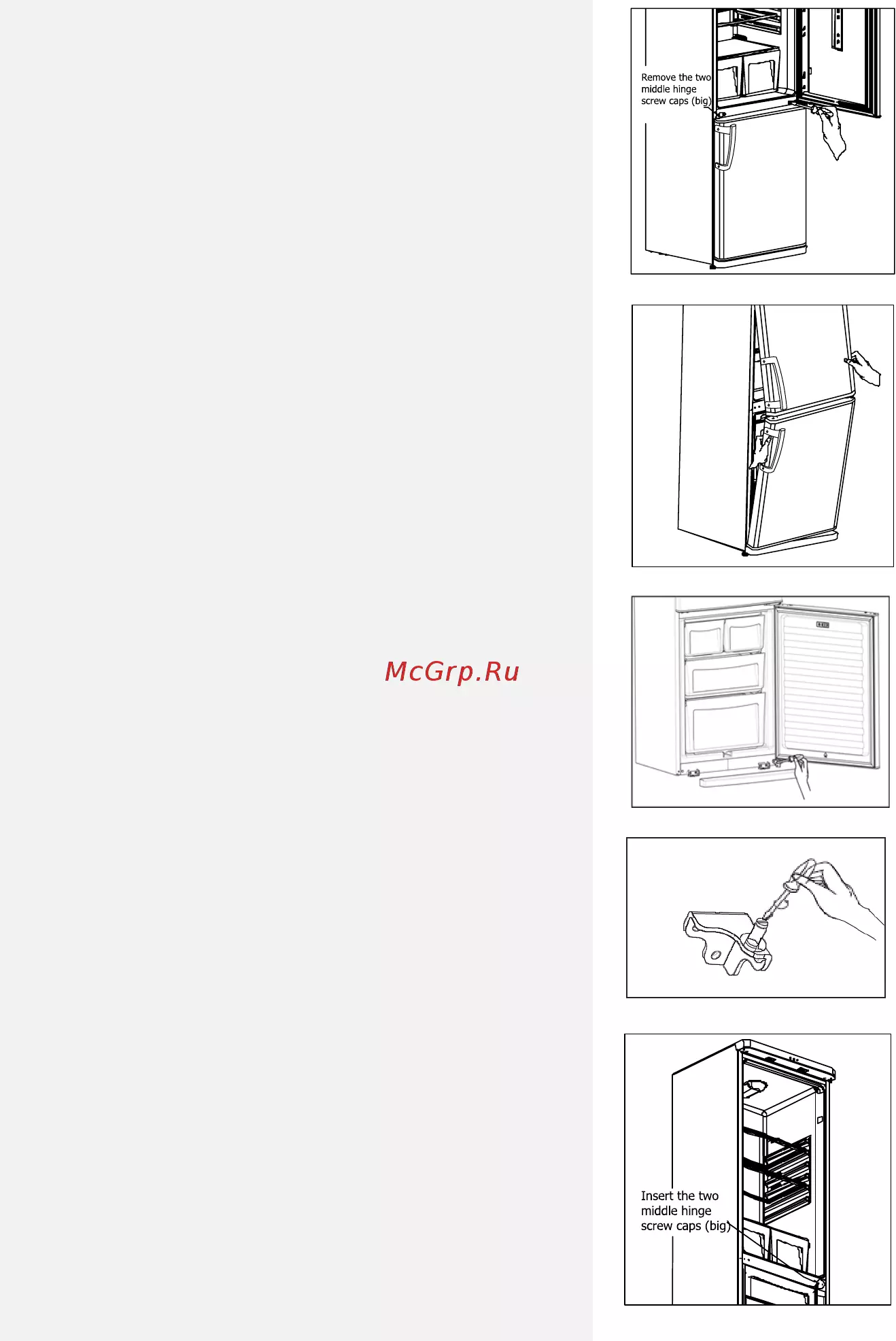

Fig. 6

Fig. 8

Fig. 9

Fig. 10

Fig. 7

Detail A

Detail B
