D-Link DP-311U [26/76] Tcp ip printing for windows xp continued

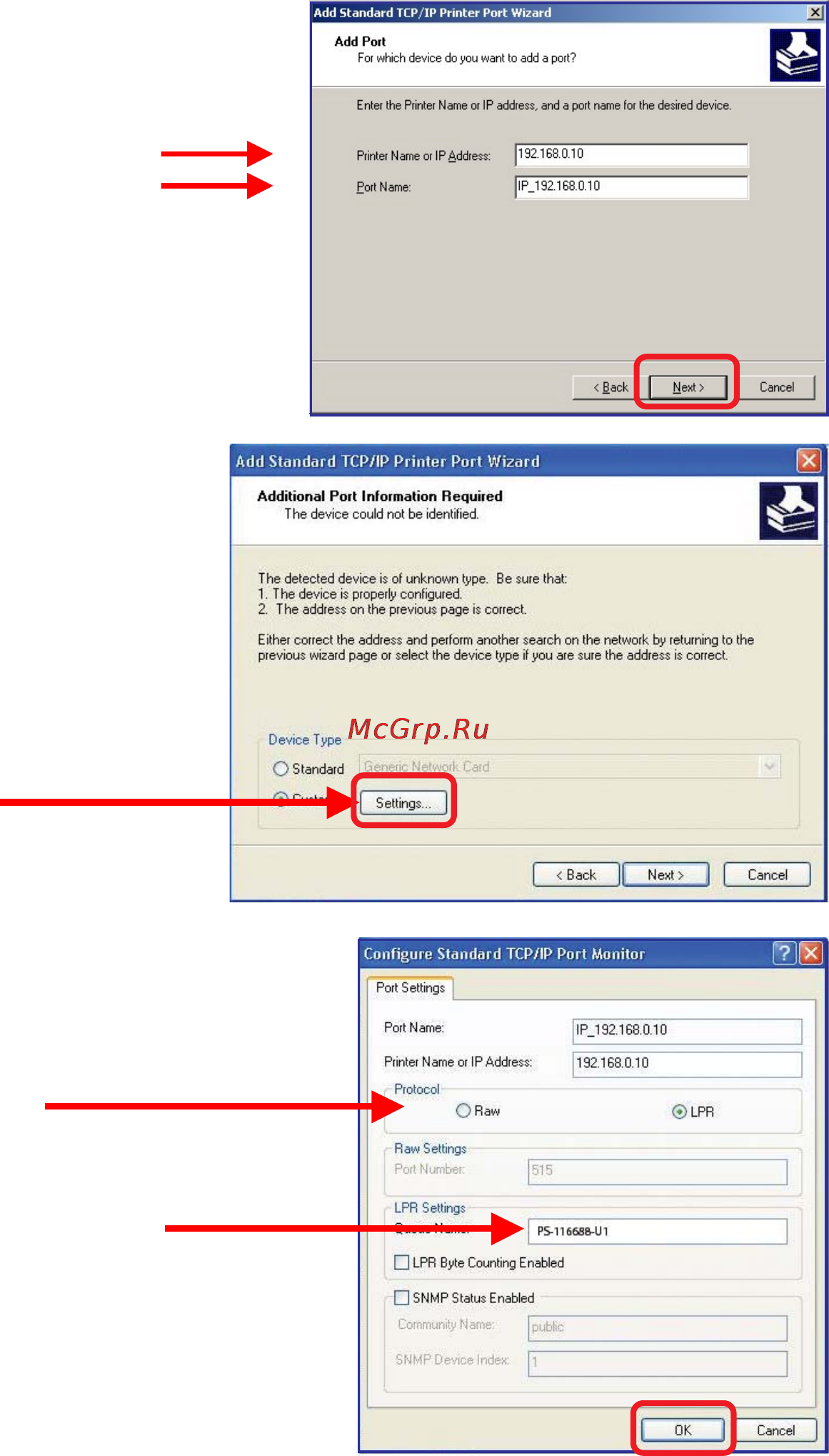

![D-Link DP-311U [26/76] Tcp ip printing for windows xp continued](/views2/1044876/page26/bg1a.png)
26
Click OK
Input the port name of
the port being used by
the printer
Select “LPR”
Select “Custom”
Then click on Settings.
TCP/IP Printing for Windows XP (continued)
Type in the IP
address of the
Print Server (i.e.
192.168.0.10).
The Port Name
will automatically
be filled in.
