29
TCP/IP Printing for Windows 2000

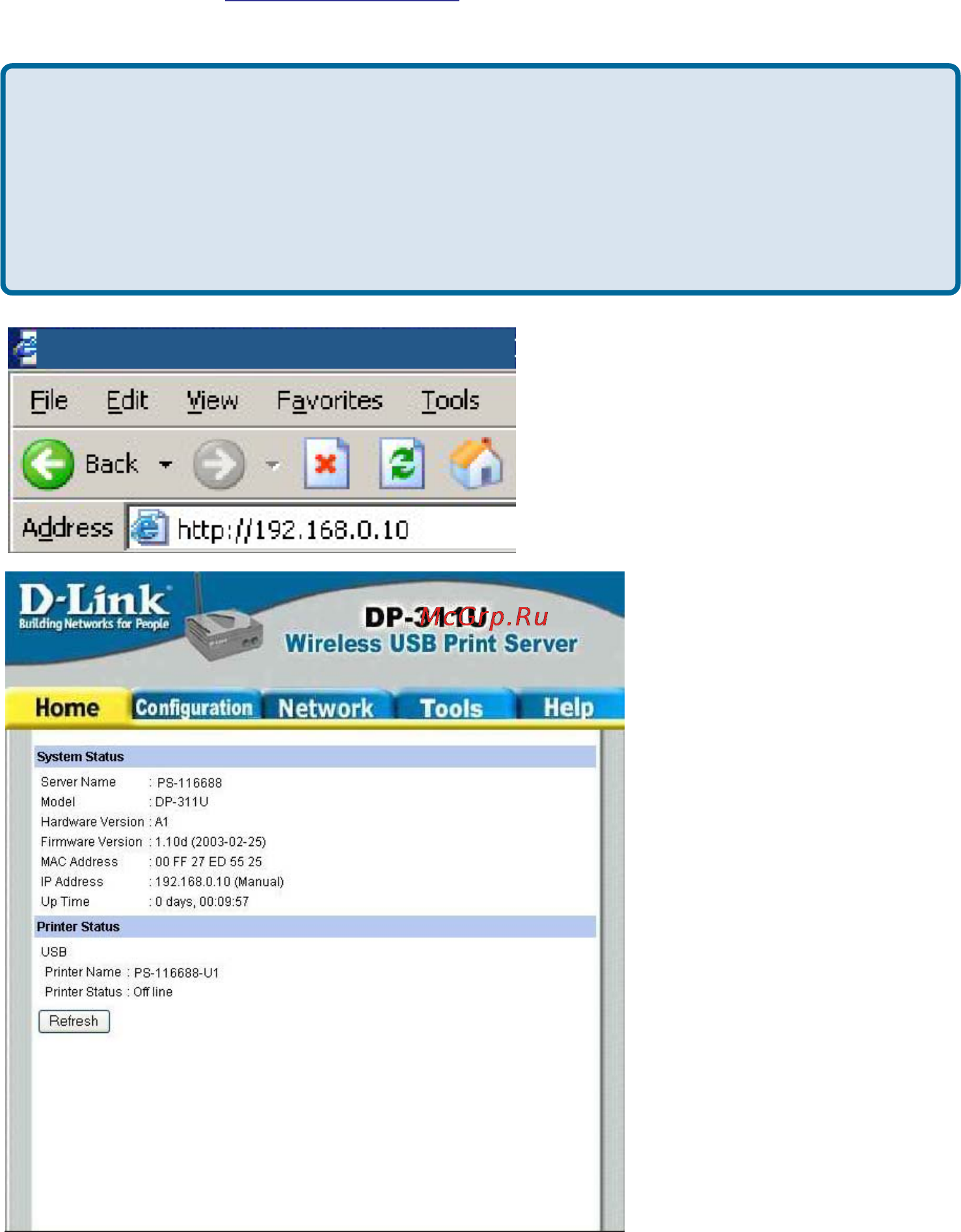

Open the web browser, and type in the IP Address of the DP-311U.
For example, type http://192.168.0.10 into the Location or Address field. Press
the Enter or (Return) Key.
Note:
The PC’s IP Address must be in the same subnet as the Print Server’s IP
Address for the two devices to communicate. (For example, if your Print
Server’s IP Address is 192.168.0.10, with a subnet mask of 255.255.255.0,
then your computer’s IP Address should be 192.168.0.x, where x is a value
between 1-254, excluding 10.)
