D-Link DP-311U [44/76] Tcp ip printing for windows 98se me continued
![D-Link DP-311U [44/76] Tcp ip printing for windows 98se me continued](/views2/1044876/page44/bg2c.png)
44

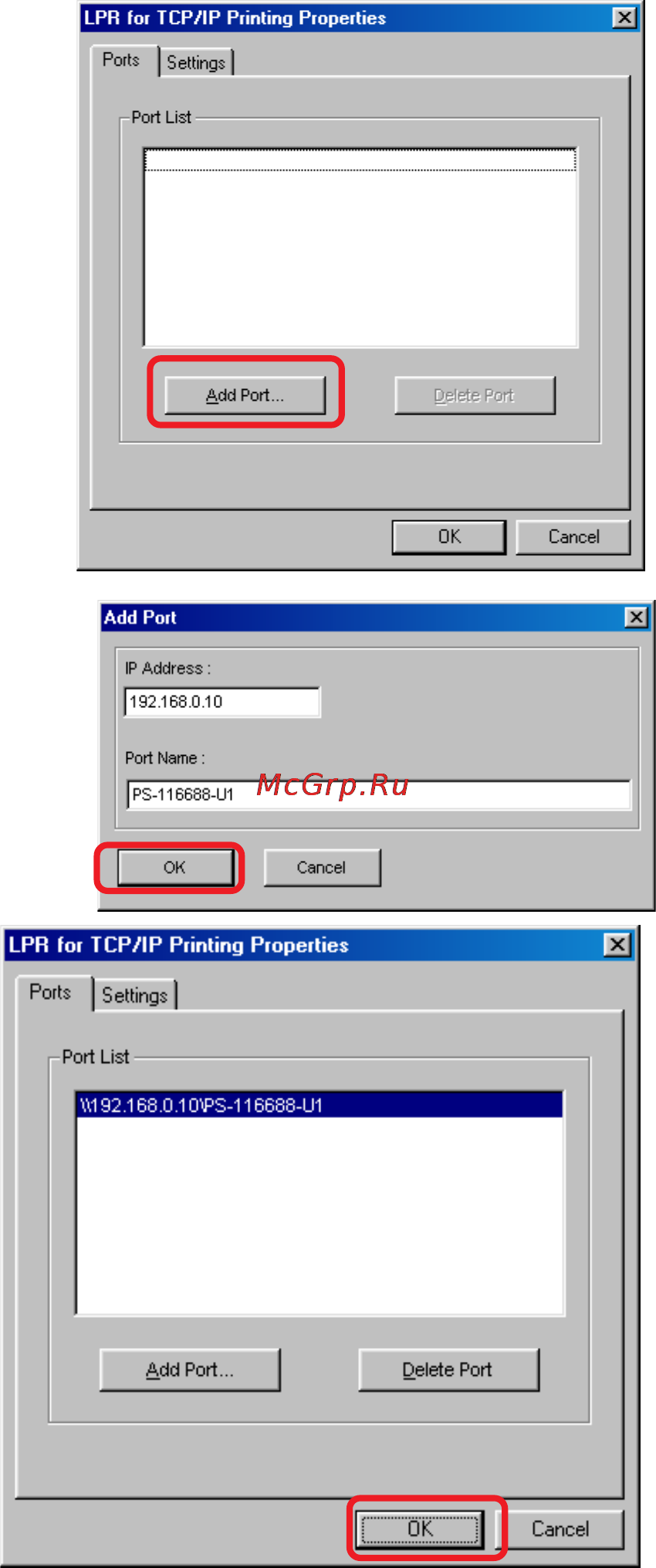

TCP/IP Printing for Windows 98SE/Me (continued)
The Port name and IP
Address will be displayed.
(The Port Name at right is
just an example.)
Click OK
Type in the IP Address of
the DP-301U. Make sure
the Port Name is accu-
rate. (The Port Name at
right is just an example.)
Click OK
Click Add Port
